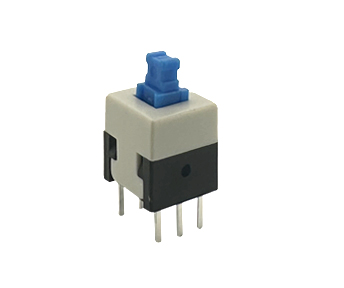

  • Mini Push Switch 8.5×8.5mm :ERYGY8.5X8.5

    Brand ERYCO

    Product origin CHINA

    Mini Push Switch 8.5×8.5mm

    Rating: 0.3A 30V DC

    Operating Force: 200 ± 80g

    Withatand Voltage: AC 250V 1 Minute

    Insulation Resistance: 100 MΩ Mim. 250V DC

    Email Details

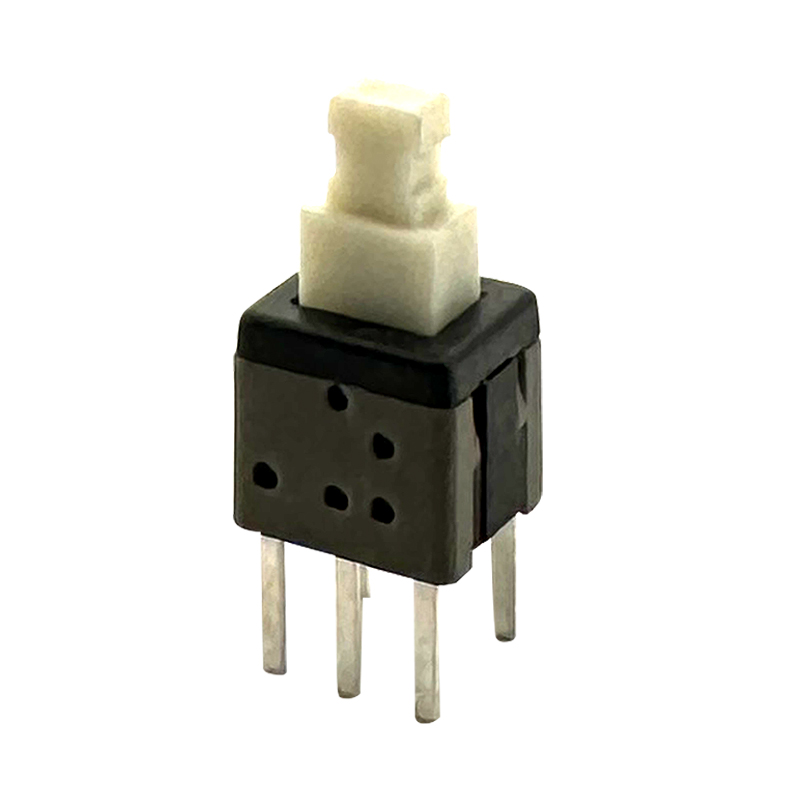

  • Mini Push Switch 5.8×5.8mm:ERYGY5.8X5.8

    Brand ERYCO

    Product origin CHINA

    Mini Push Switch 5.8×5.8mm

    Rating: 0.1A 30V DC

    Operating Force: 160 ± 80g

    Withatand Voltage: AC 125V 1 Minute

    Insulation Resistance: 100 MΩ Mim. 125V DC
    Email Details

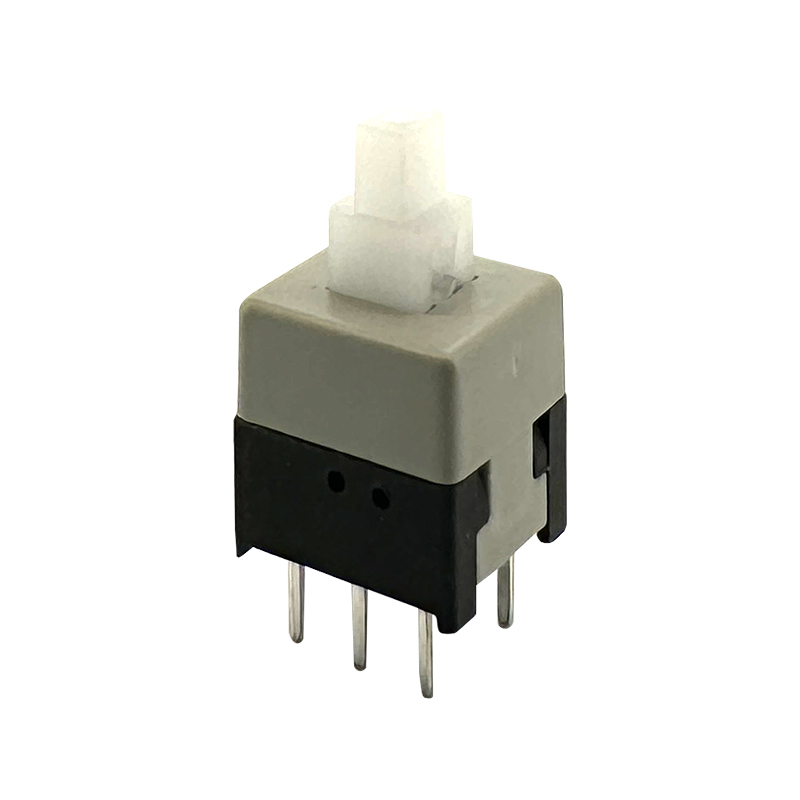

  • Mini Push Switch 8.0×8.0mm:ERYGY8.0X8.0

    Brand ERYCO

    Product origin CHINA

    Mini Push Switch 8.0×8.0mm

    Rating: 0.1A 30V DC

    Operating Force: 160 ± 80g

    Withatand Voltage: AC 125V 1 Minute

    Insulation Resistance: 100 MΩ Mim. 125V DC

    Email Details

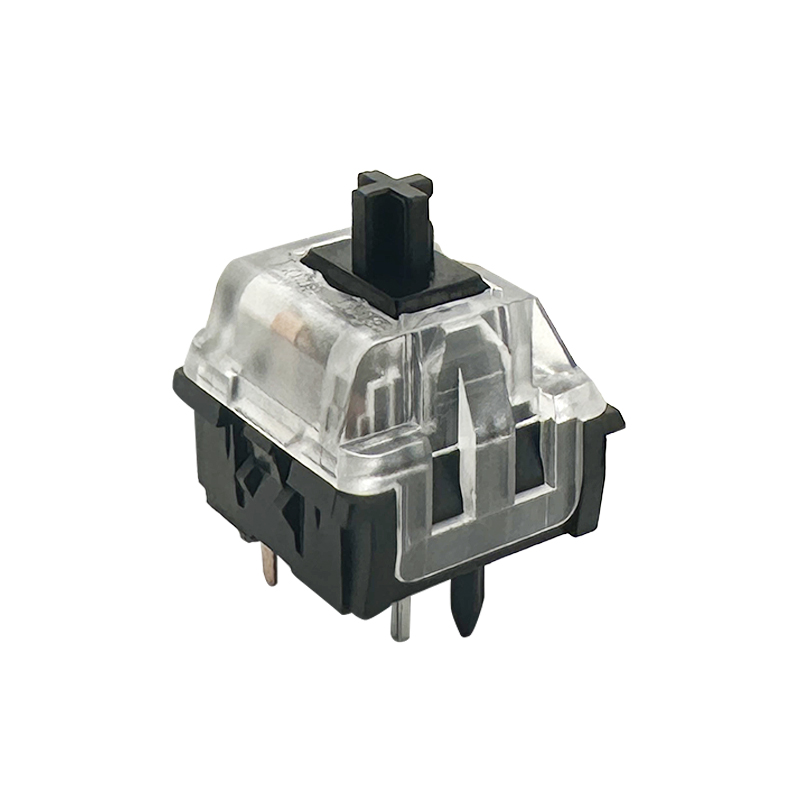

  • Mechanical Keyboard switches :ERYGYS02

    Brand ERYCO

    Product origin CHINA

    Characteristics:

    Rating:12V DC/AC Max.

    Contact Resistance:200 mΩ Max

    Insulation Resistance:100MΩ Min.

    Contact bounce time:≤5 ms

    Operating Life:20000000 cycles

    Operating Force:60gf Max

    End force:＜110gf

    Pretravel:2.0±0.6mm

    Total travel:4.0mm

    Email Details

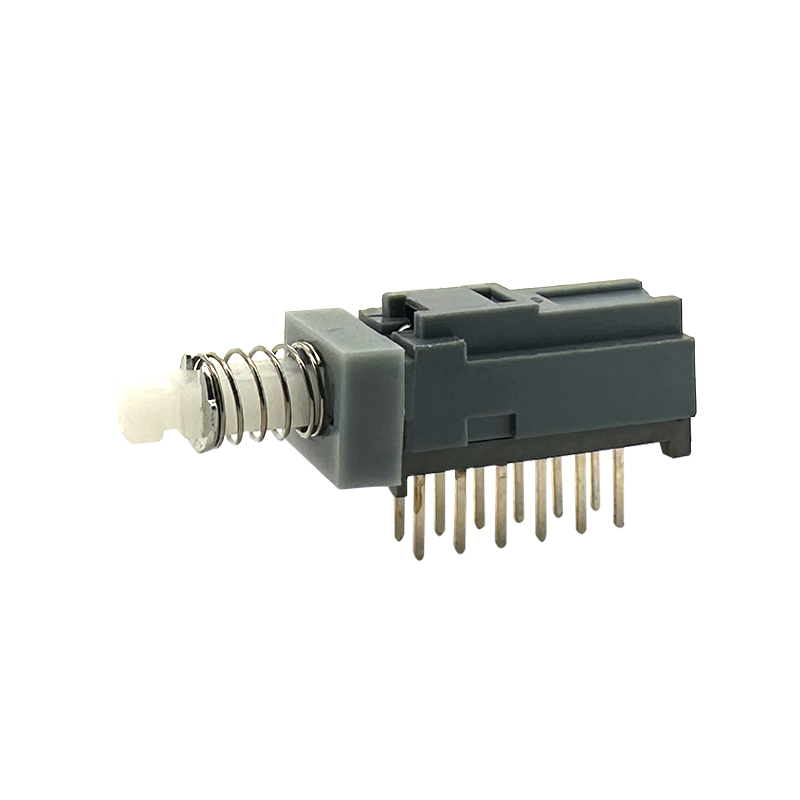

  • Push Switch :ERYGYS-909

    Brand ERYCO
    Product origin CHINA
    Push Switch
    Rating: 0.1A 30V DC
    PIN Pitch: 2.5mm
    Operating Force: 230 ± 50gf
    Insulation Resistance: 100 MΩ Mim. 250V DC
    Contact Resistance: 50MΩ Max.
    Withatand Voltage: AC 250 V 1 Minute
    Operating Temperature: -40oC ~ +80oC
    Mechanical Life: 30,000 cycles
    Electrical Life: 10,000 cycles


    Email Details

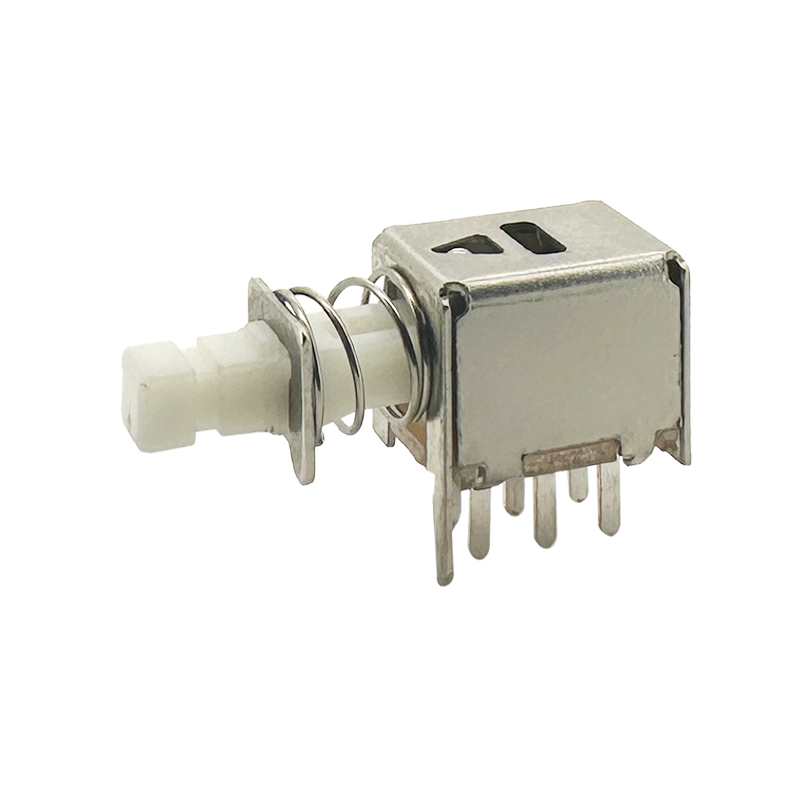

  • Push Switch:ERYGYS-003

    Brand ERYCO

    Product origin CHINA

    Push Switch

    Self-lock and Non-lock

    Withstand Voltage：AC800V(50Hz)/min

    Rated load：30V DC,  0.3A

    Actuating Force：2-8N

    Contact Resistance：<0.02Ω

    Life：100000 cycles

    Insulation Resistance：>500MΩ

    Operating Temperature: -40℃ ~ +80℃

    Email Details
