ERYCO Female Header Connectors – 2.0mm Pitch for Reliable PCB Interconnections
At ERYCO, we provide connector solutions designed to meet the diverse requirements of electronic equipment and PCB assembly. Our official website, www.erycotec.com, features a range of interconnection products for industrial, communication, and consumer electronics applications.

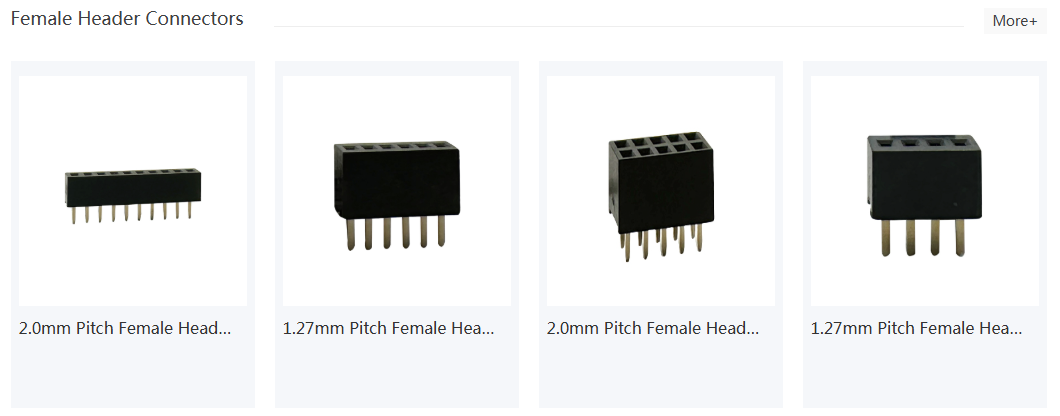

One of our products is the ERYCO Female Header Connector (2.0mm Pitch, Height 4.3mm), Model ERYAY08B-4.3. Designed to receive compatible male pin headers, this connector provides a practical solution for electrical connections between components and printed circuit boards (PCBs).
Compact Design with Reliable Electrical Performance
The ERYCO ERYAY08B-4.3 features a 2.0mm contact pitch and a height of 4.3mm. Its compact spacing makes it suitable for PCB layouts where board space and connector dimensions are important design considerations.
The connector housing is made of PA6T material with a UL94 V-0 flammability rating. Its contacts are available in brass or phosphor bronze, with gold or tin plating over nickel, depending on the selected configuration.
With a rated current of 1.5A, a maximum contact resistance of 20mΩ, and an insulation resistance of at least 1,000MΩ, the connector is designed to support reliable electrical connections in compatible electronic assemblies.
Key Features
• 2.0mm Pitch: Provides defined contact spacing for compatible PCB layouts and mating connectors.
• 4.3mm Height: Offers a compact connector profile for space-conscious electronic designs.
• Multiple Pin Configurations: Available in single-row and double-row configurations, with contact counts from 2 to 80 pins.
• Flexible Mounting Options: Available with straight, right-angle, and SMT pin configurations, depending on the selected model.
• Contact Material Options: Brass or phosphor bronze contacts with gold or tin plating over nickel.
• Electrical Performance: Rated current of 1.5A, maximum contact resistance of 20mΩ, and minimum insulation resistance of 1,000MΩ.
• Wide Operating Temperature Range: Designed for operation from -40°C to +105°C.
Wide-Ranging Applications
ERYCO Female Header Connectors can be used in various electronic assemblies where dependable PCB interconnections are required.
Industrial Applications
Used in industrial control boards, electronic modules, and equipment interfaces where secure connections between circuit boards and components are important.
Consumer Electronics
Suitable for electronic appliances and compact devices that require organized PCB connections within limited installation space.
Telecommunications Equipment
Can be used in communication modules, signal-processing boards, and other electronic assemblies that require multiple electrical connections.
PCB Interconnections and Embedded Systems
Designed to mate with compatible male pin headers, female headers provide a convenient interface for connecting electronic components, circuit boards, and functional modules. The available pin configurations allow designers to select a suitable arrangement for their PCB layout.
ERYCO Connector Solutions
At ERYCO, we understand that connector selection involves more than pitch and dimensions. Contact configuration, mounting style, material, electrical ratings, and installation space all play a role in determining whether a connector is suitable for a particular application.
The ERYAY08B-4.3 is one option in our female header connector range, with different configurations available to support varying design requirements.
For more information about the ERYCO ERYAY08B-4.3 Female Header Connector and our other interconnection products, please visit www.erycotec.com.
