Characteristics
Rated Current: 5~60A, 72A Max
Turns Ratio: 1:2000
Load Resistance: 20Ωmax
Operation Frequency: 50Hz~10kHz
Dielectric Strength between primary and secondary >4kV/1min.
Phase displacement < 15′, AC current error < ±0.1%.
Ambient Temperature: -40℃~+80℃
Relative Humidity:≤95% (25℃) Altitude: ≤10000m.
Features

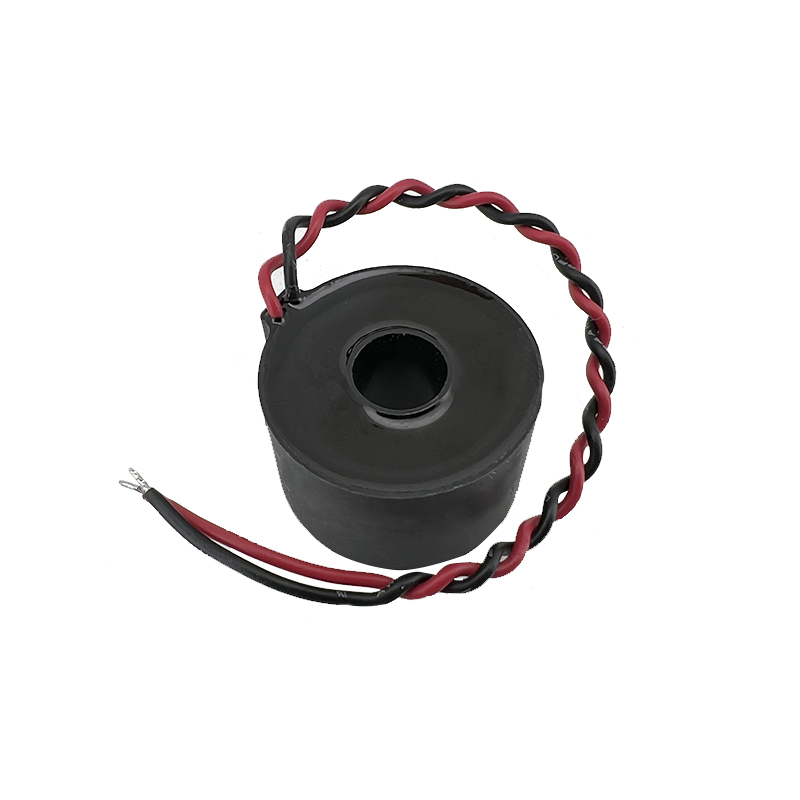

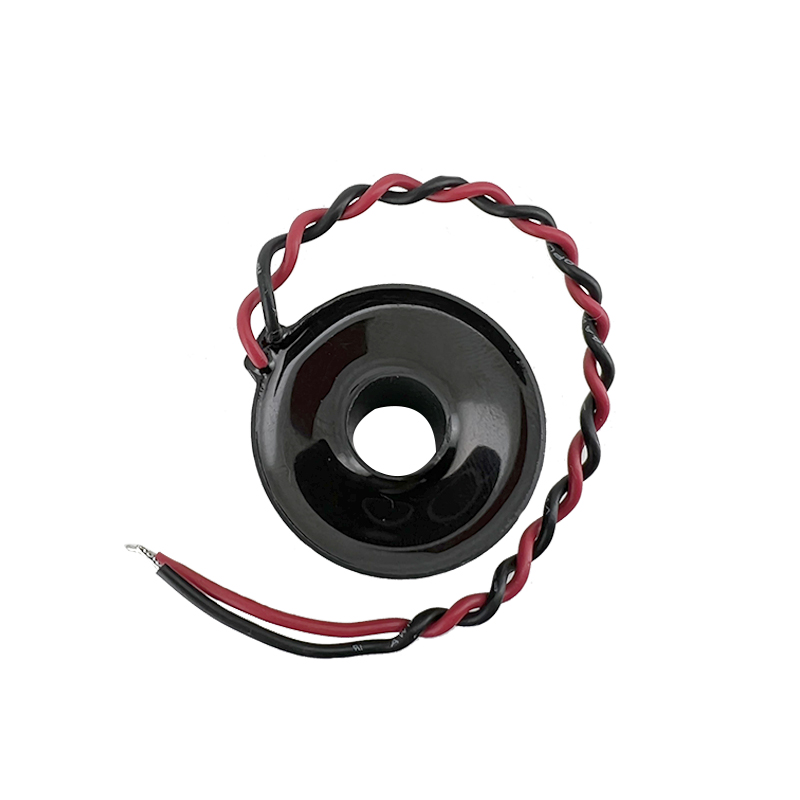

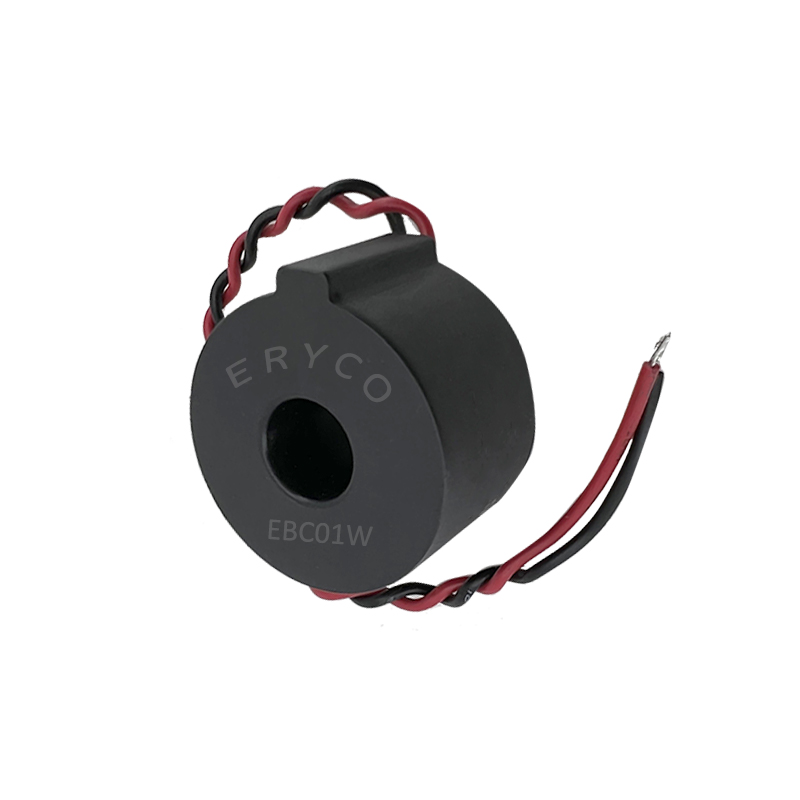

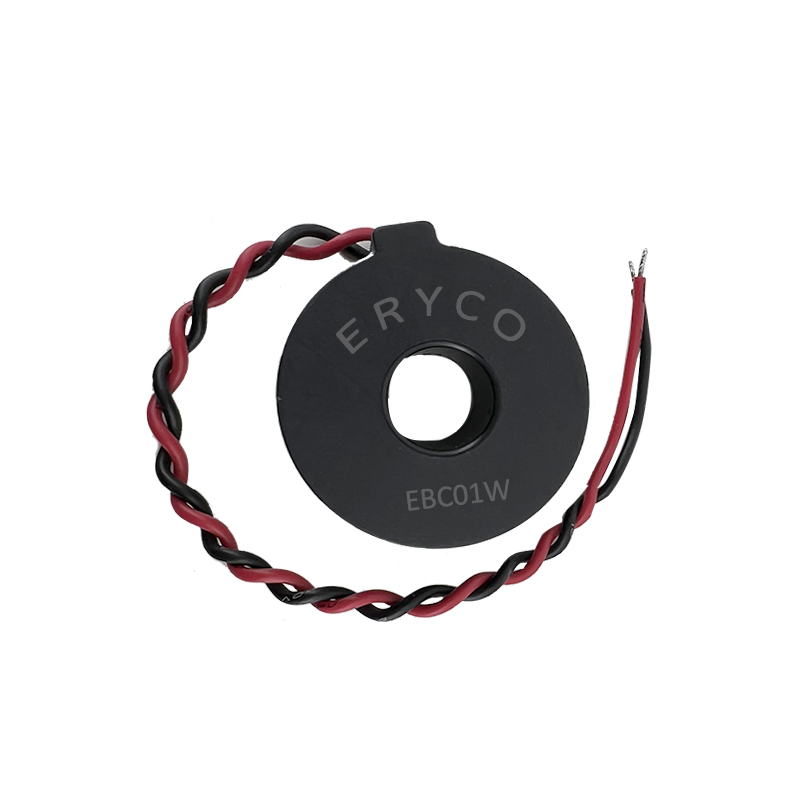

CT101W-C1 without DC Immunity
High Precision, suitable for kWh meter Class 0.2, Class 0.5, Class 1.0, Class 2.0.
Typical AC current measurement error is within 0.02% at lb test point.
Typical phase displacement < 15′, additional compensation is not needed.
Very reliable and stable performance at different temperature conditions.
Good linearity, it support automatically software calibration.
Different type for different fixing and assembly easily.
Quick connection to PCB available on request.
RoHS Compliance is available on request.
