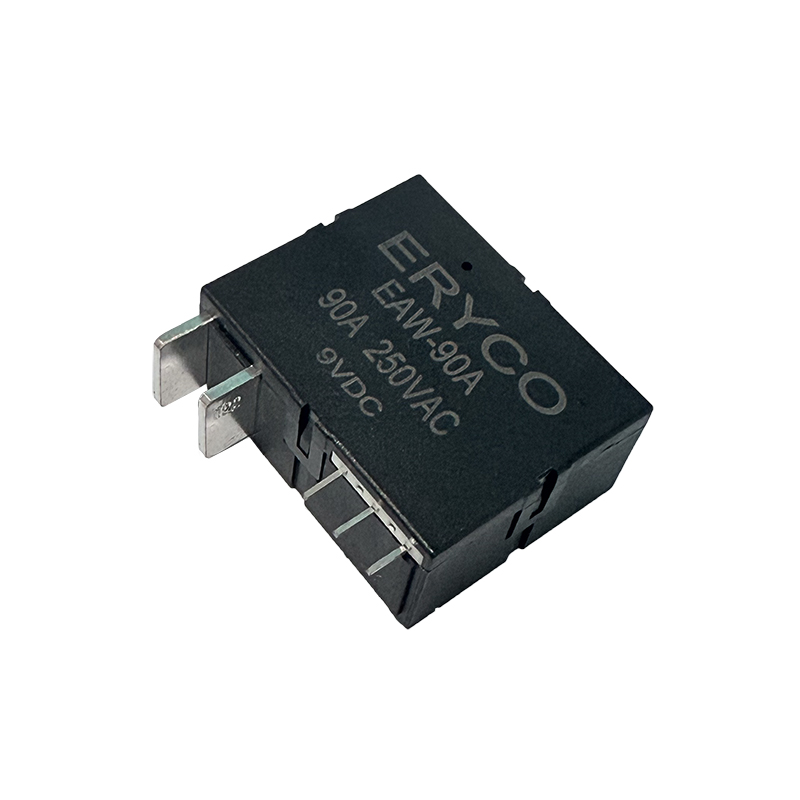

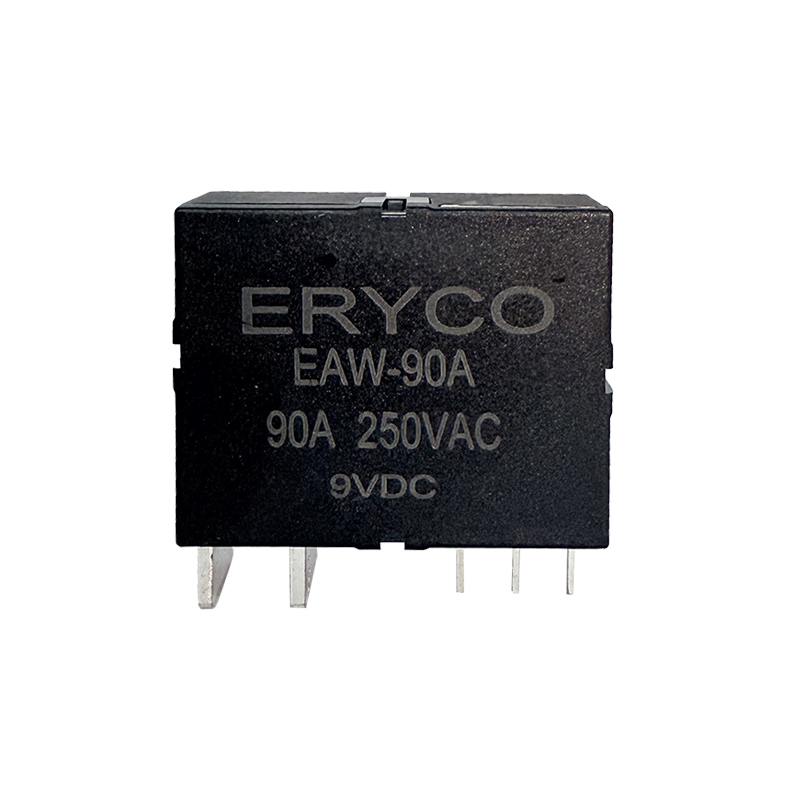

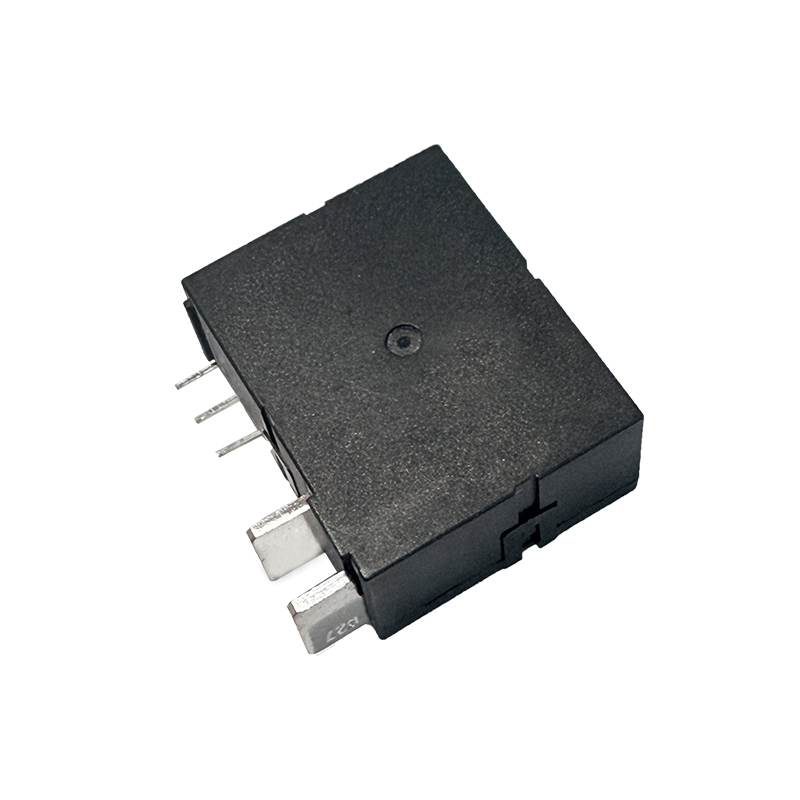

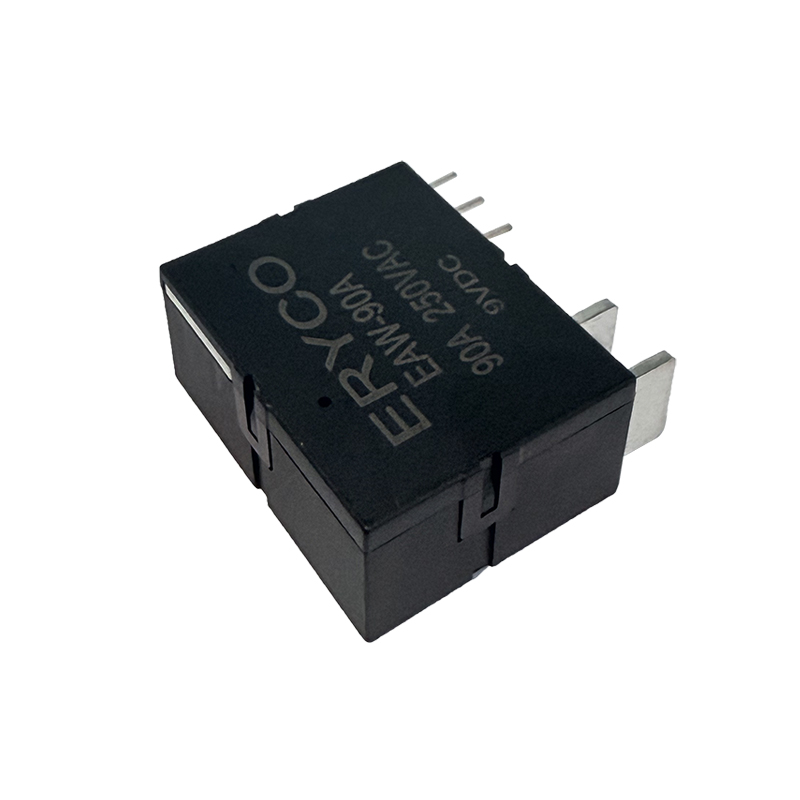

EAW-90A 90A Magnetic Latching Relay

EAW-90A 90A Magnetic Latching Relay

Brand ERYCO

Product origin CHINA

Dimensions: 39 × 30 × 16.5 mm

Switching Current:90A

Switching Voltage: 250VAC max

Switching Power:22500VA

Contact Resistance:2mΩ(0.1A/6VDC)

Compliant with RoHS and CQC standards

EAW-90A High-performance 90A magnetic latching relay for energy meters, EV chargers, and industrial automation. Reliable, low-power, and RoHS compliant.

2D(PDF)Drawing

Characteristics:

Insulation Resistance		1000MΩ(at500vDC)
Dielectric Strength	Coil to contact	4000VAC 1min
	Across open contact	2000VAC 1 min
Operate Time		Max.20ms
Release Time		Max.20ms
Shock Resistance Functional		100m/s²(10g)
Shock Resistance destructive		1000m/s²(100g)
Ambient Temperature		-40~85℃
Humidity		98%RH,+40℃
Vibration Resistance		90A Magnetic Latching Relay
Termination		PCB mount or quick connect
Construction		Dust cover

Applications

1.Power electronics

2.Automation

3.Smart home

4.Communication

Dimensions
