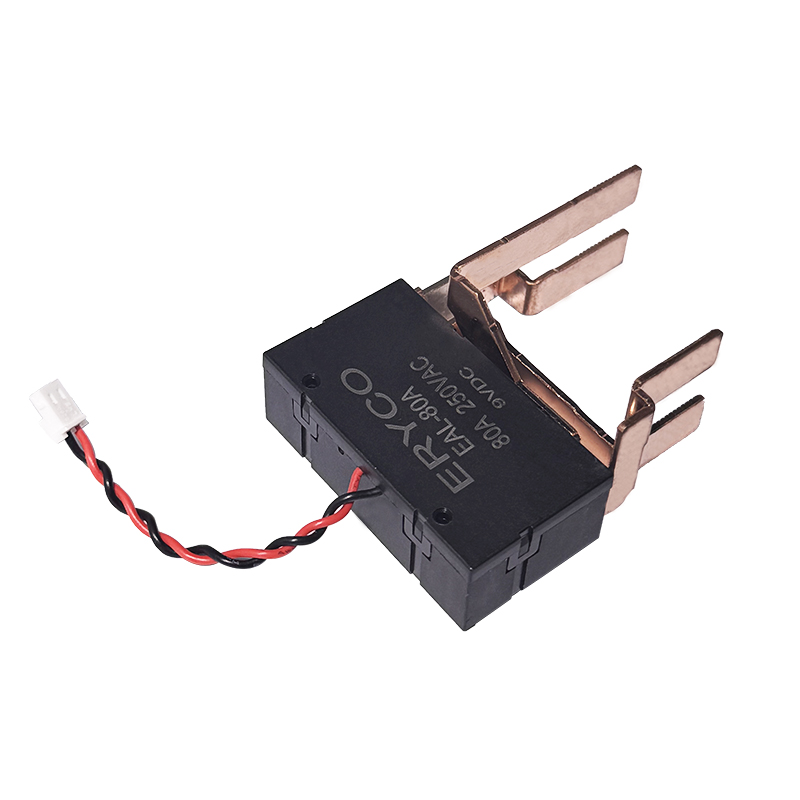

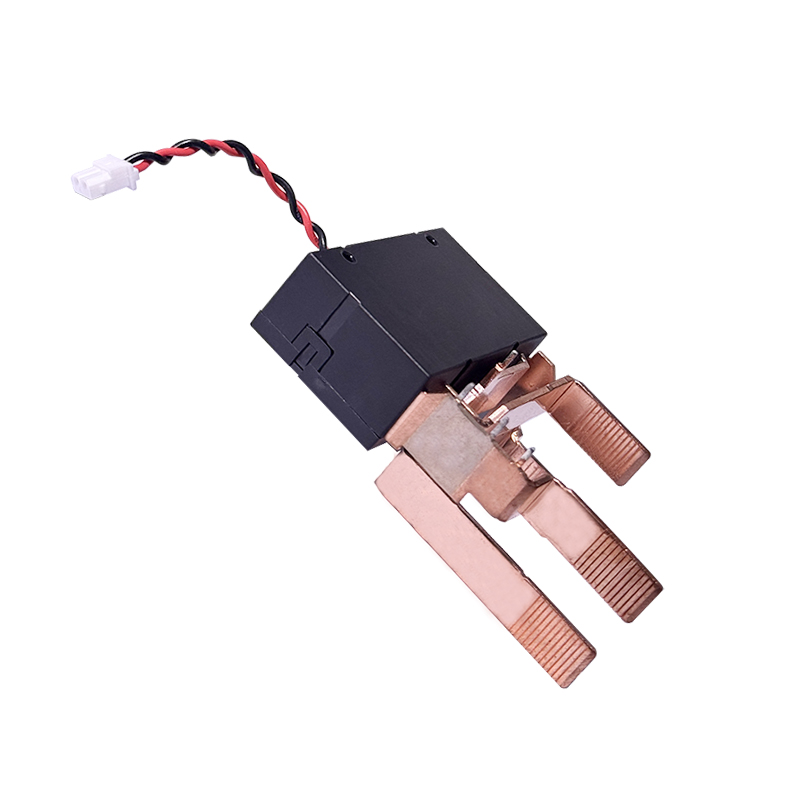

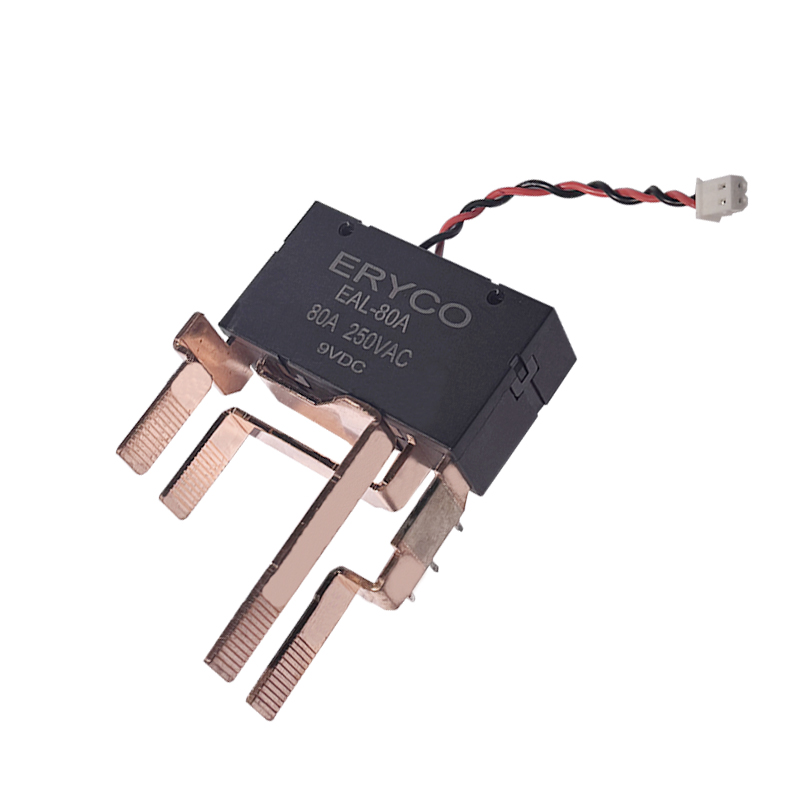

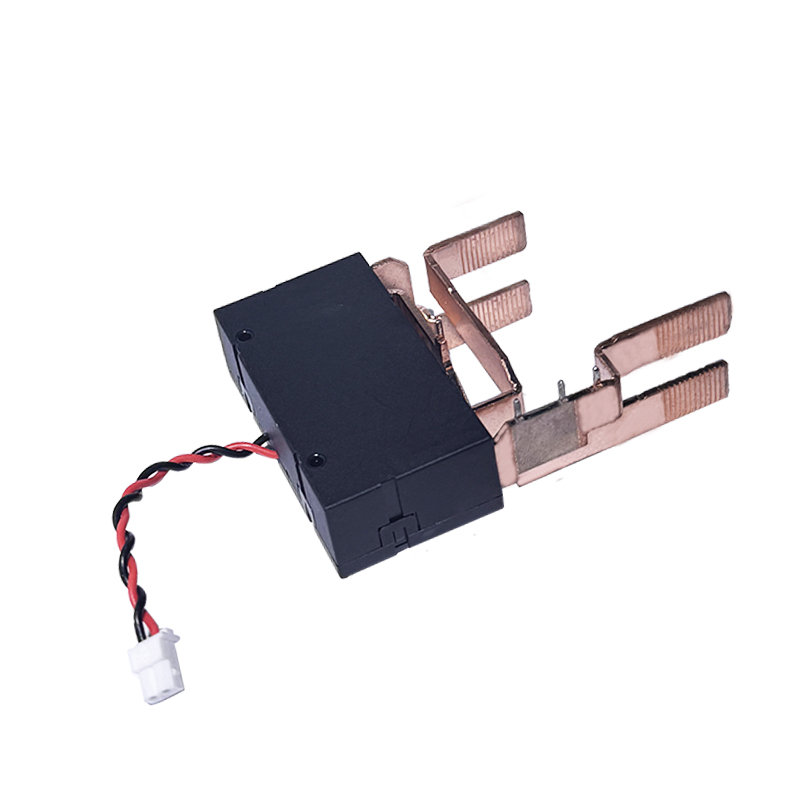

EAL-80A 80A Magnetic Latching Relay

EAL-80A 80A Magnetic Latching Relay

Brand ERYCO

Product origin CHINA

Dimensions: 54.5 × 30.3 × 17.6 mm

Switching Current:80A

Switching Voltage: 250VAC max

Switching Power:20000VA

Contact Resistance:2mΩ(0.1A/6VDC)

Compliant with RoHS standard

EAL-80A 80A Magnetic Latching Relay High-performance 80A magnetic latching relay, model EAL-80A, ideal for industrial and electrical applications.

Characteristics:

Insulation Resistance		1000MΩ(at500vDC)
Dielectric Strength	Coil to contact	4000VAC 1min
	Across open contact	2500VAC 1 min
Operate Time		Max.20ms
Release Time		Max.20ms
Shock Resistance Functional		100m/s²(10g)
Shock Resistance destructive		1000m/s²(100g)
Ambient Temperature		-40~85℃
Humidity		98%RH,+40℃
Vibration Resistance		10-55Hz,1.5mm double amplitude
Termination		PCB mount or quick connect
Construction		Dust cover

Applications

1.Smart Home

2.Power Distribution

3.EV Charging

4.Lighting Control

Dimensions
