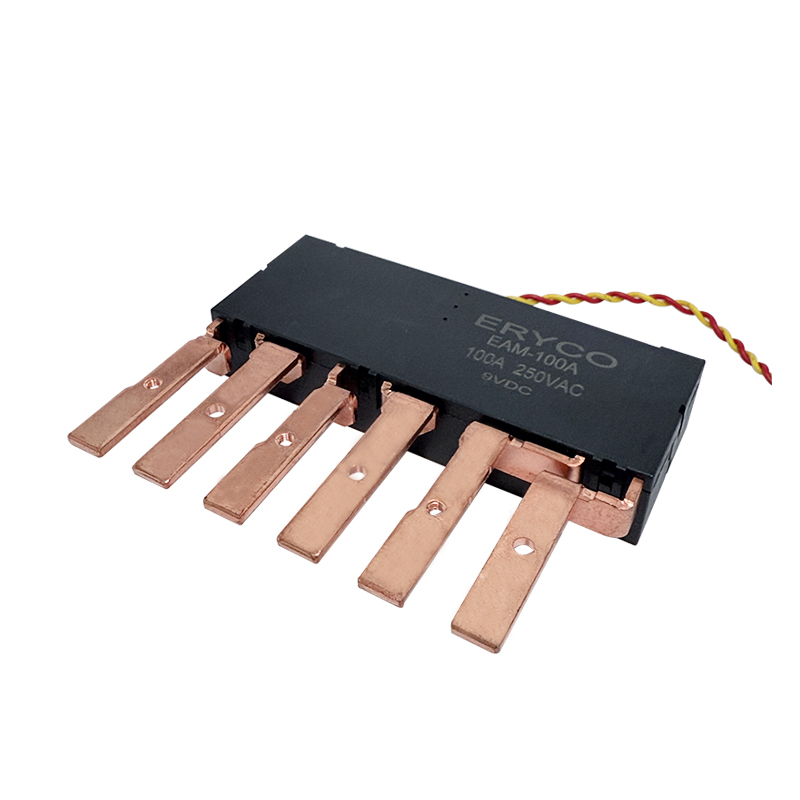

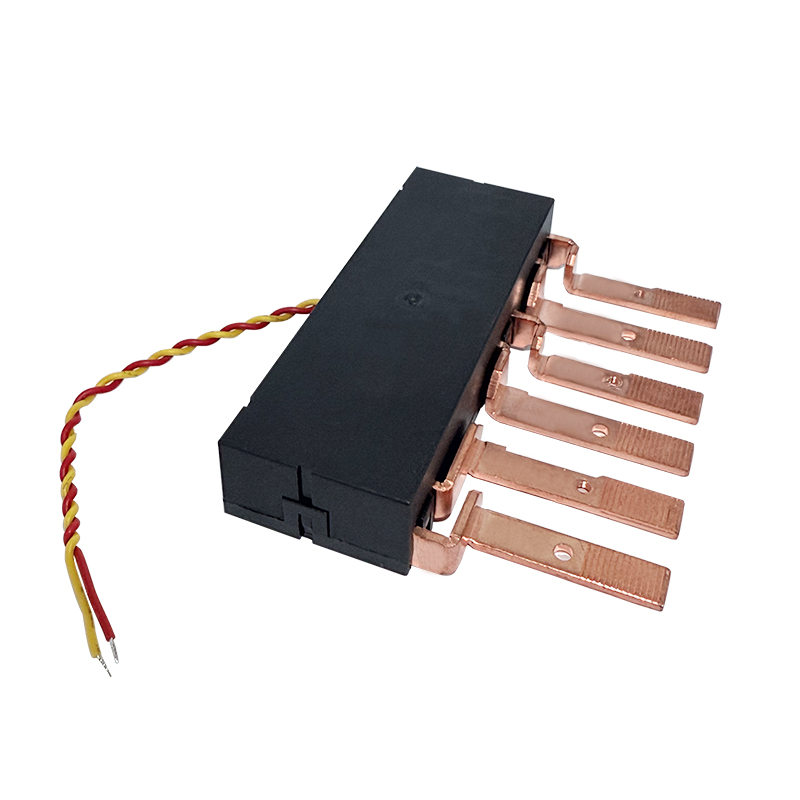

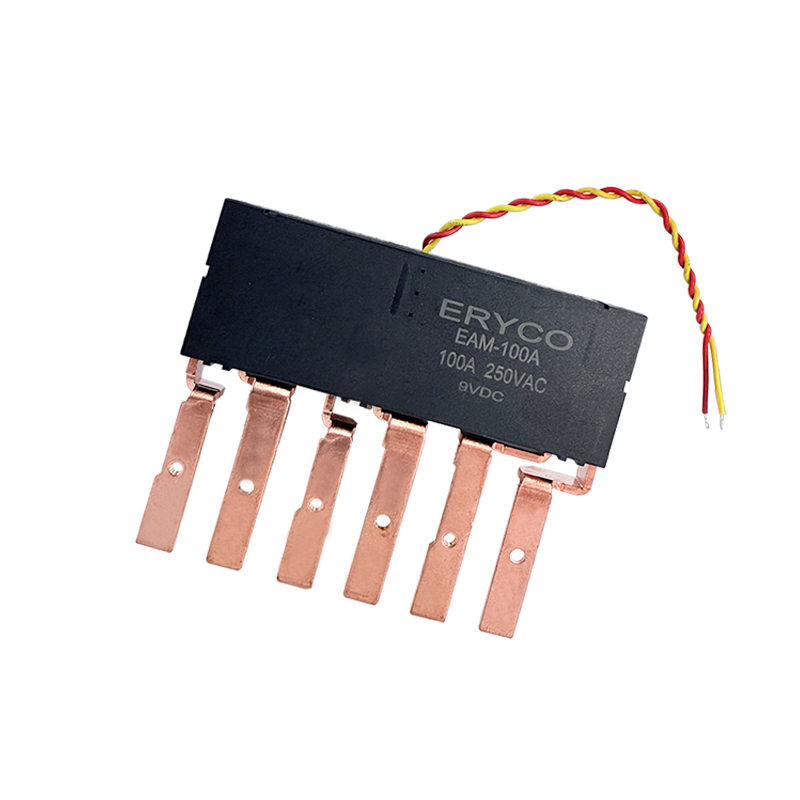

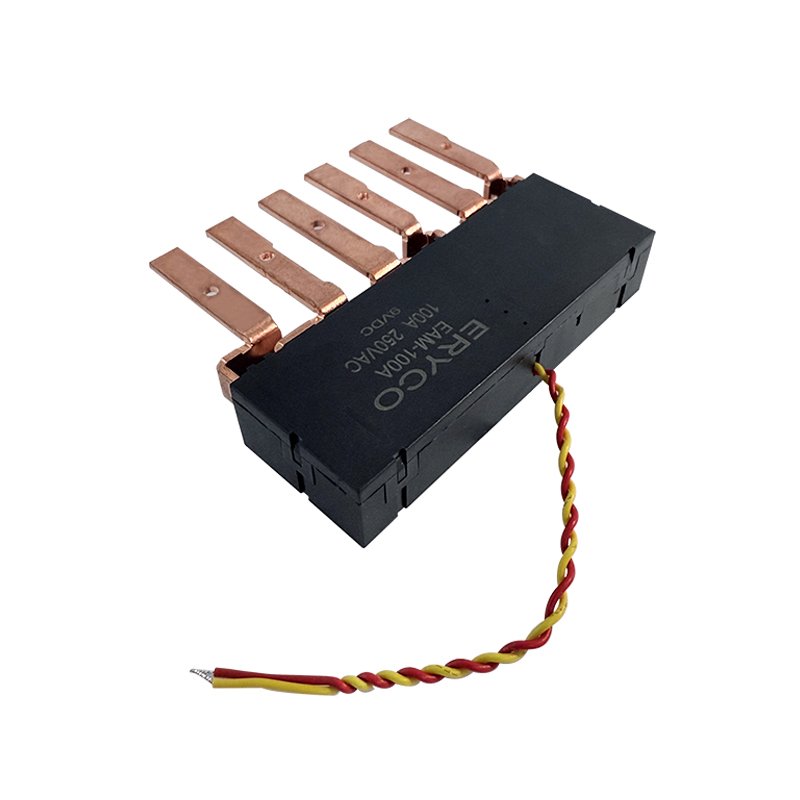

EAM-100A Magnetic Latching Relay

EAM-100A Magnetic Latching Relay

Brand ERYCO

Product origin CHINA

Dimensions: 96.8 × 35.5 × 18.8 mm

Switching Current:100A

Switching Voltage: 250VAC max

Switching Power:25000VA

Contact Resistance:2mΩ(0.1A/6VDC)

Compliant with RoHS standard

EAM-100A 100A Magnetic Latching Relay for high current industrial applications.

Characteristics:

Insulation Resistance		1000MΩ(at500vDC)
Dielectric Strength	Coil to contact	4000VAC 1min
	Across open contact	2000VAC 1 min
Operate Time		Max.20ms
Release Time		Max.20ms
Shock Resistance Functional		100m/s²(10g)
Shock Resistance destructive		1000m/s²(100g)
Ambient Temperature		-40~85℃
Humidity		98%RH,+40℃
Vibration Resistance		10-55Hz,1.5mm double amplitude
Termination		PCB mount or quick connect
Construction		Dust cover

Applications

1.Power electronics

2.Automation

3.Smart home

4.Communication

Dimensions
