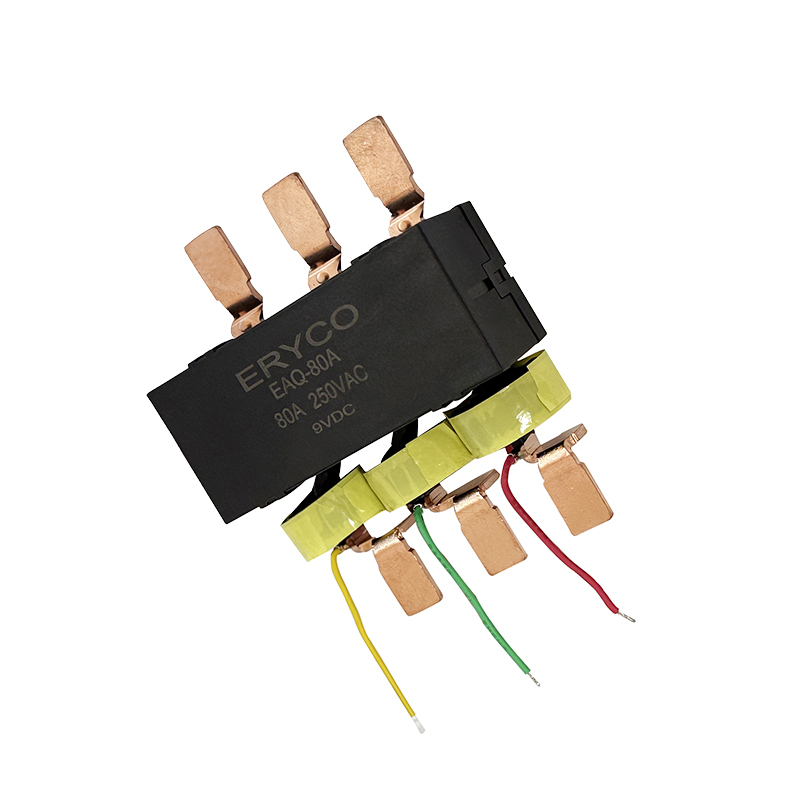

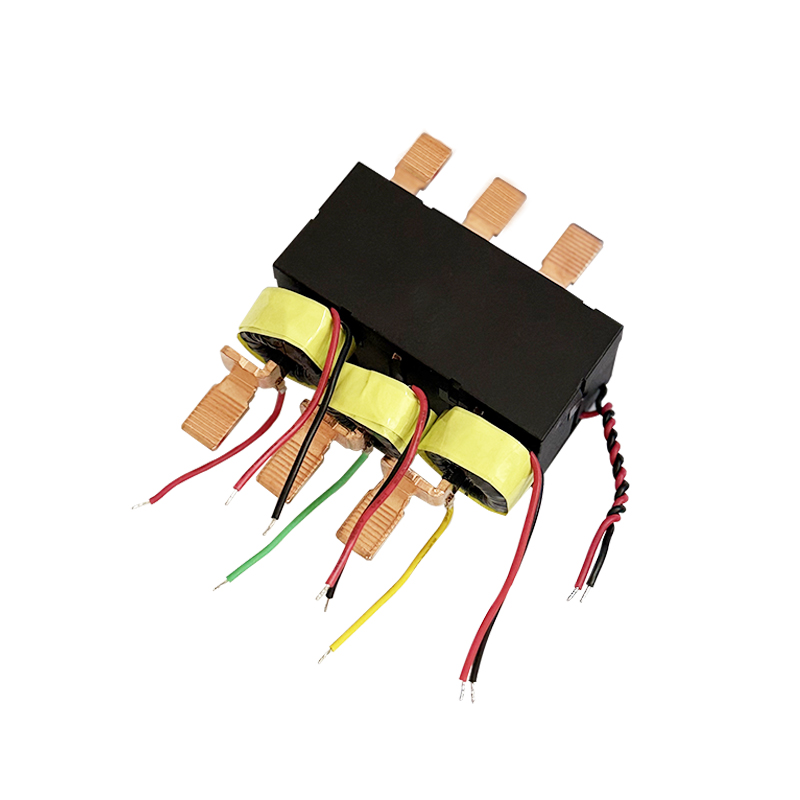

EAQ-80A 80A Magnetic Latching Relay

EAQ-80A 80A Magnetic Latching Relay

Brand ERYCO

Product origin CHINA

Dimensions: 63.5 × 29 × 28.8 mm

Switching Current:80A

Switching Voltage: 250VAC max

Switching Power:20000VA

Contact Resistance:2mΩ(0.1A/6VDC)

RoHS Compliance

EAQ-80A 80A Magnetic Latching Relay for reliable high-power switching.

Characteristics:

Insulation Resistance		1000MΩ(at500vDC)
Dielectric Strength	Coil to contact	4000VAC 1min
	Across open contact	2000VAC 1 min
Operate Time		Max.20ms
Release Time		Max.20ms
Shock Resistance Functional		100m/s²(10g)
Shock Resistance destructive		1000m/s²(100g)
Ambient Temperature		-40~85℃
Humidity		98%RH,+40℃
Vibration Resistance		10-55Hz,1.5mm double amplitude
Termination		PCB mount or quick connect
Construction		Dust cover

Applications

1. Smart Home

2. Lighting Control

3. EV Charging

4. Energy Metering

Dimensions
