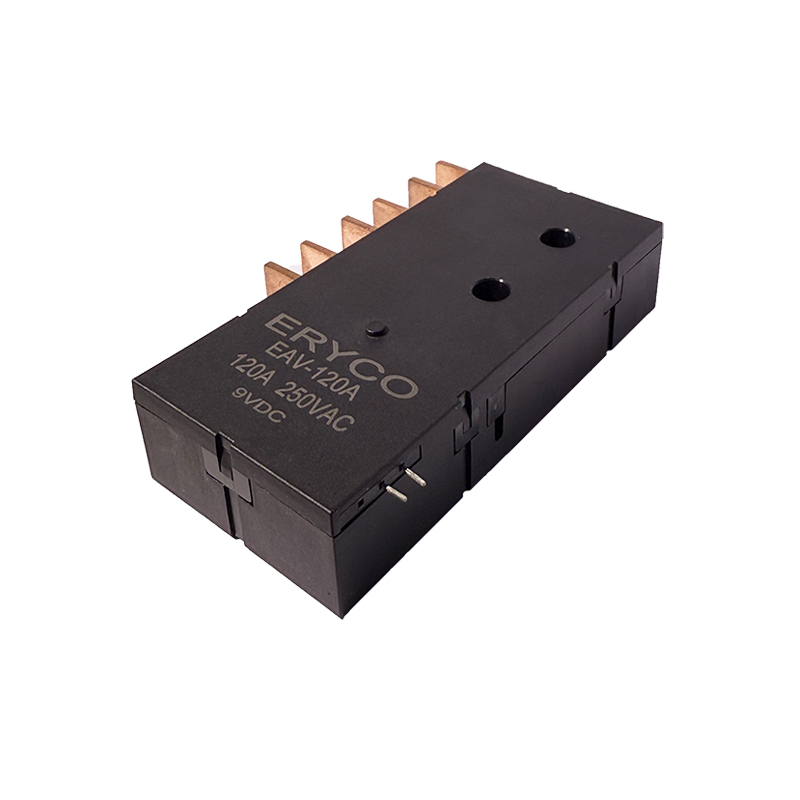

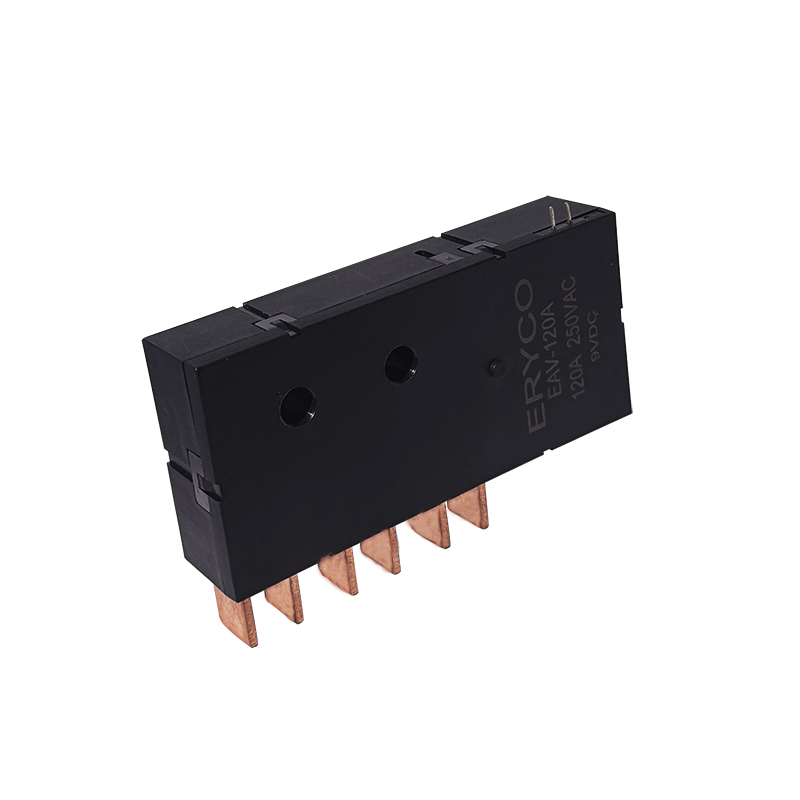

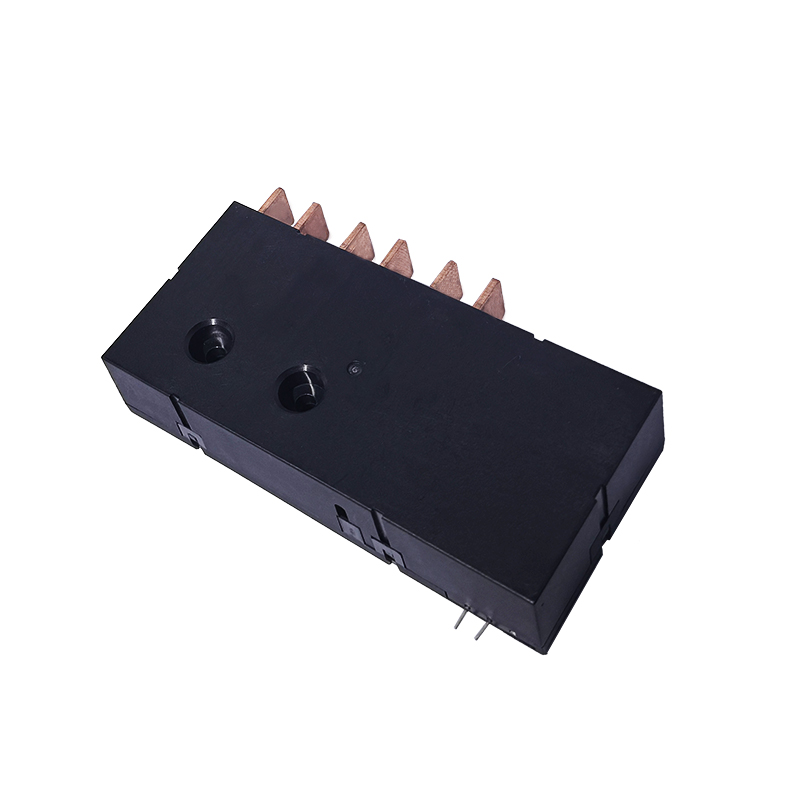

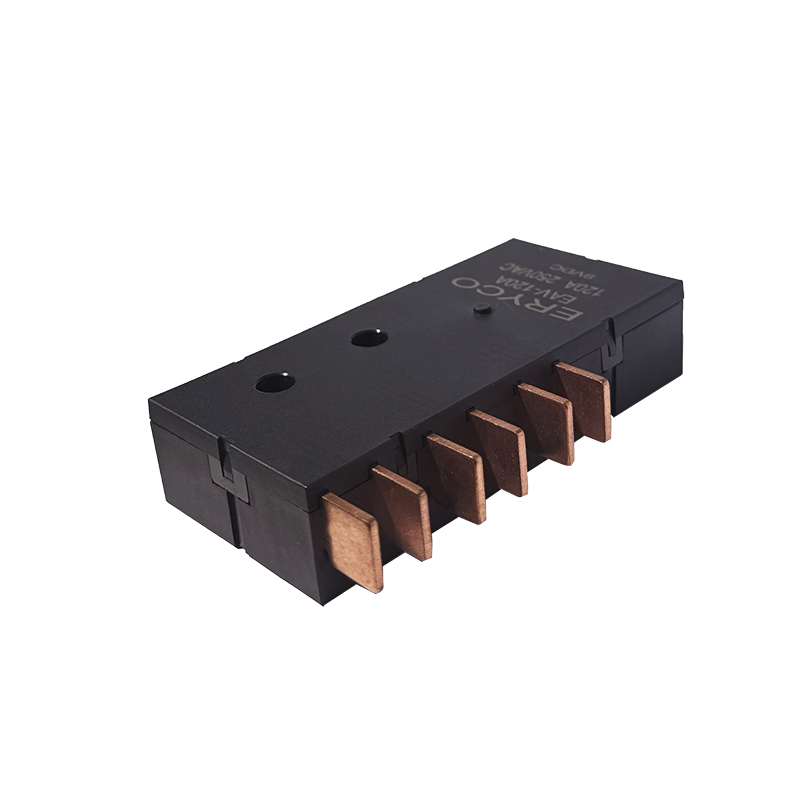

EAV-120A 120A Three Phase Magnetic Latching Relay

EAV-120A 120A Three Phase Magnetic Latching Relay

Brand ERYCO

Product origin CHINA

Dimensions: 110 × 52 × 24.1mm

Switching Current:120A

Switching Voltage: 250VAC

Switching Power:30000VA

Contact Resistance:2mΩ(0.1A/6VDC)

RoHS Compliance

Efficient and durable 120A three-phase magnetic latching relay, designed for energy-saving operation and long-lasting performance in industrial systems.

2D(PDF)Drawing

Characteristics:

Insulation Resistance		1000MΩ(at500vDC)
Dielectric Strength	Coil to contact	4000VAC 1min
	Across open contact	2500VAC 1 min
Operate Time		Max.20ms
Release Time		Max.20ms
Shock Resistance Functional		100m/s²(10g)
Shock Resistance destructive		1000m/s²(100g)
Ambient Temperature		-40~85℃
Humidity		98%RH,+40℃
Vibration Resistance		10-55Hz,1.5mm double amplitude
Termination		PCB mount or quick connect
Construction		Dust cover

Applications

1.Power electronics

2.Automation

3.Smart home

4.Communication

Dimensions
