Brand ERYCO Product origin CHINA
Characteristics
Rated Current: 125A
Turns Ratio: 1:2500
Load Resistance: 12.5Ωmax
Operation Frequency: 50Hz/60Hz
Dielectric Strength between primary and secondary >4kV/1min.
Phase displacement < 15′, AC current error < ±0.1%.
When DC and even harmonics in AC current circuit is 125√2,the variation of meter error within ±3%@PF=1.0
Ambient Temperature: -40℃~+80℃
Relative Humidity:≤95% (25℃) Altitude: ≤10000m.

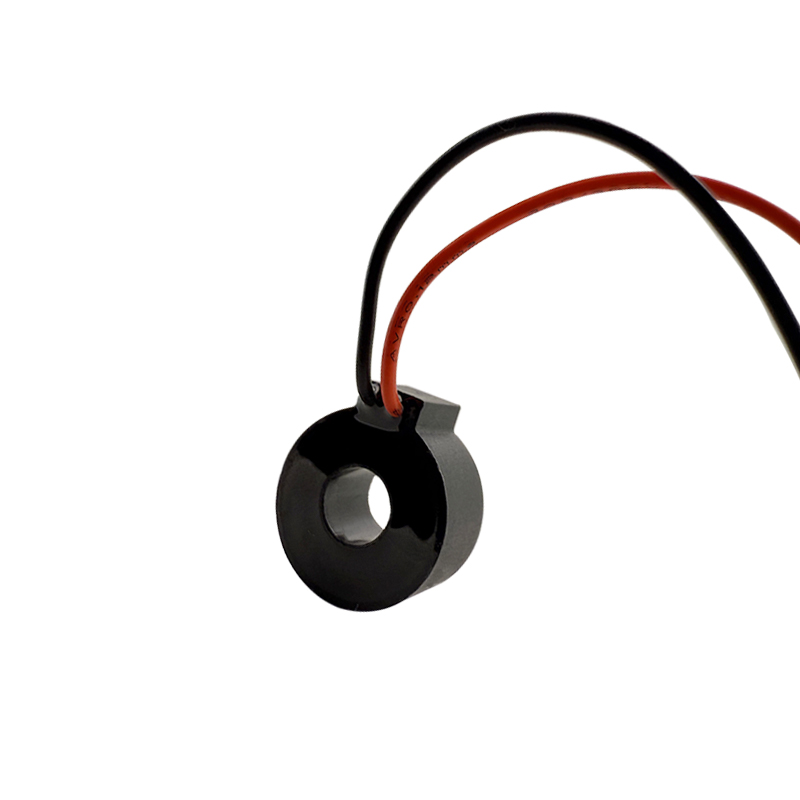

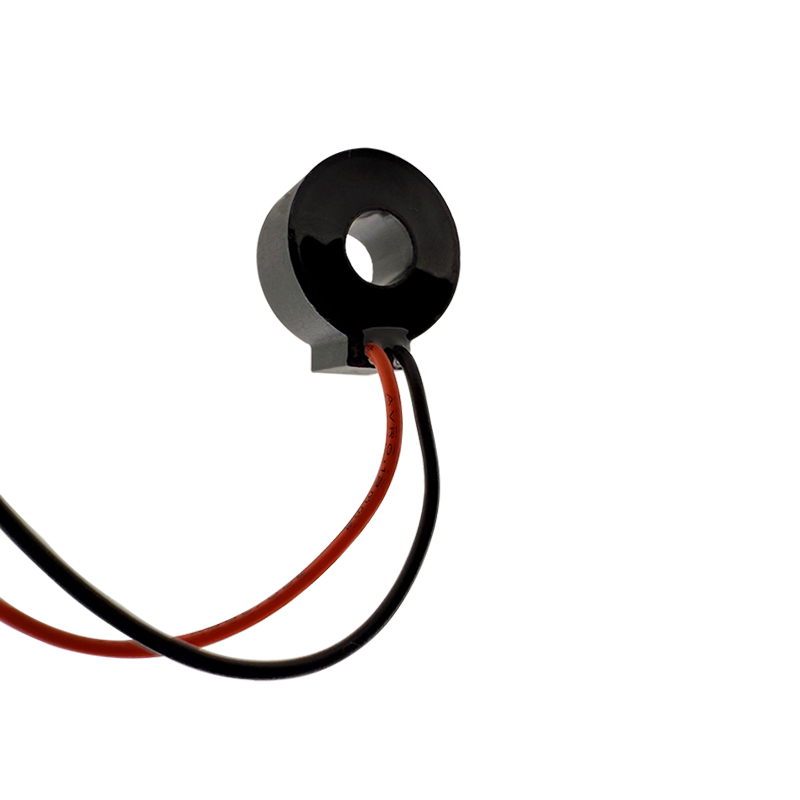

Features DCT105W-C3 with DC Immunity High Precision, suitable for Three phase kWh meter Class 0.5, Class 1.0, Class 2.0. Typical AC current measurement error is within 0.02% at lb test point. Typical phase displacement < 15′, additional compensation is not needed. Very reliable and stable performance at different temperature conditions. Good linearity, it support automatically software calibration. Different type for different fixing and assembly easily. Quick connection to PCB available on request. RoHS Compliance is available on request.
