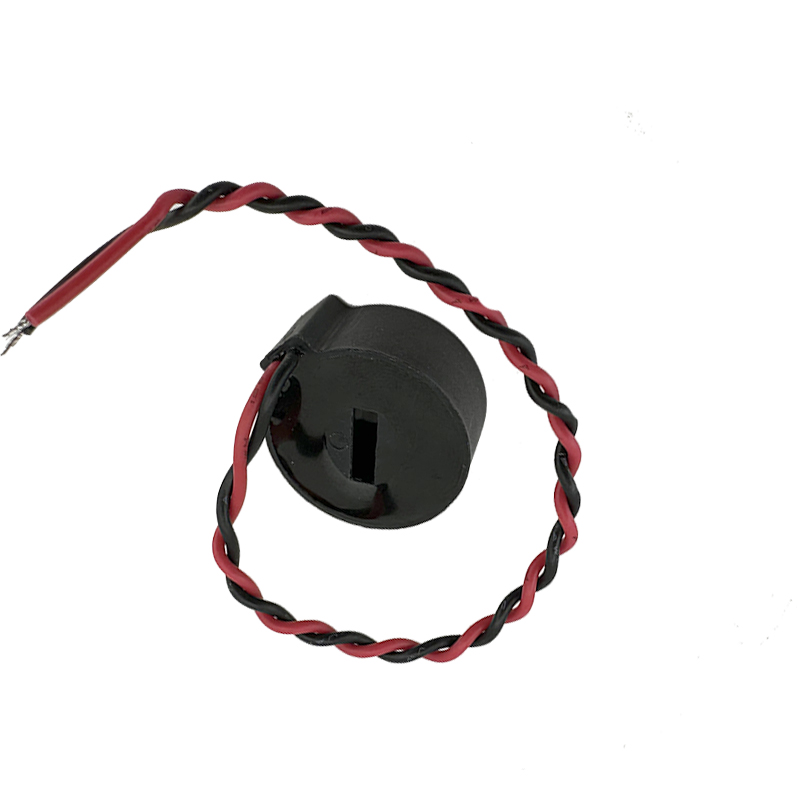

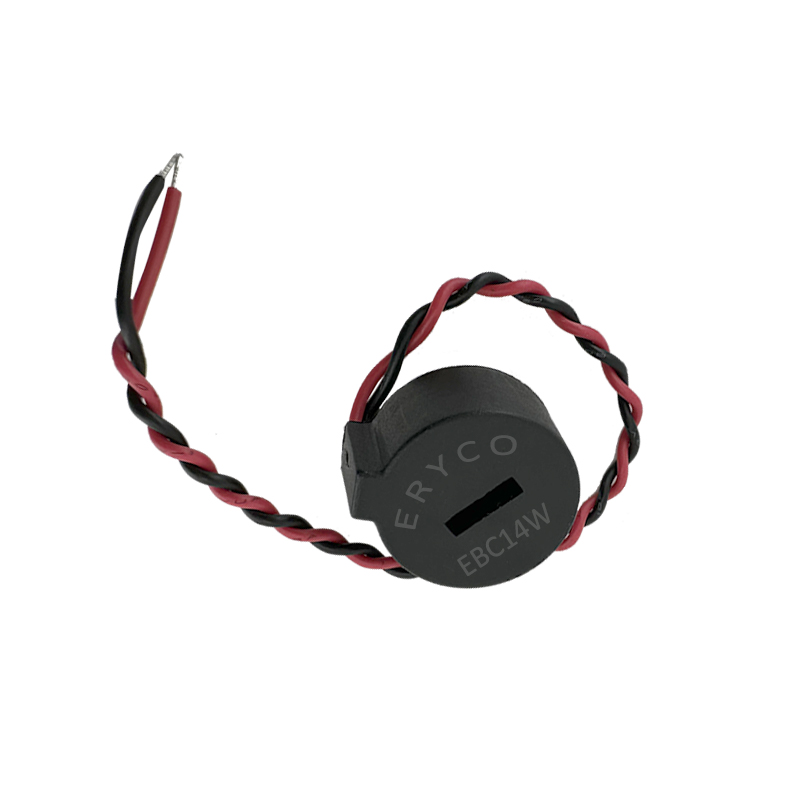

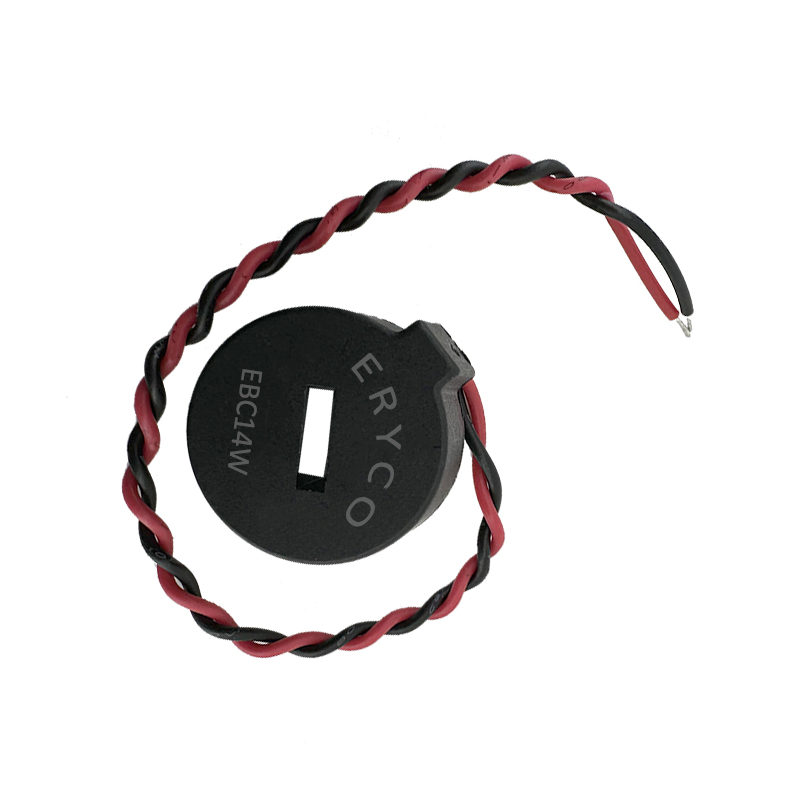

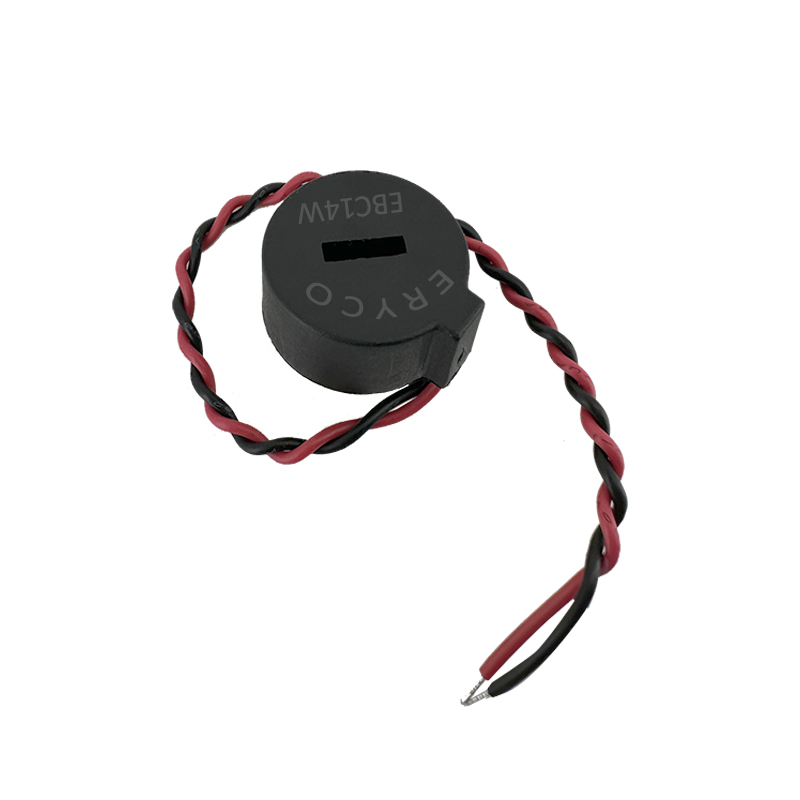

Brand ERYCO
Product origin CHINA
Characteristics
Rated Current: 0.1~100A, 120A Max
Turns Ratio: 1:2500
Load Resistance: 12.5Ωmax
Operation Frequency: 50Hz/60Hz
Dielectric Strength between primary and secondary >4kV/1min.
Accuracy: 0.1Class
Phase displacement < 15′, AC current error < ±0.1%.
Ambient Temperature: -40℃~+80℃
Relative Humidity:≤95% (25℃) Altitude: ≤10000m.
Features CT104W-B4 without DC Immunity High Precision, suitable for kWh meter , Class 0.5, Class 1.0, Class 2.0. Typical AC current measurement error is within 0.1% at lb test point. Typical phase displacement < 15′, additional compensation is not needed. Very reliable and stable performance at different temperature conditions. Good linearity, it support automatically software calibration. Different type for different fixing and assembly easily. Quick connection to PCB available on request. RoHS Compliance is available on request.
