Product parameter:
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 2.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC/DC
Operating Temperature: -45ºC~+105ºC
Applications
1.PCB
Interconnections
2.Industrial
Control Systems
3.Consumer
Electronics
4.Automotive
Electronics
Features

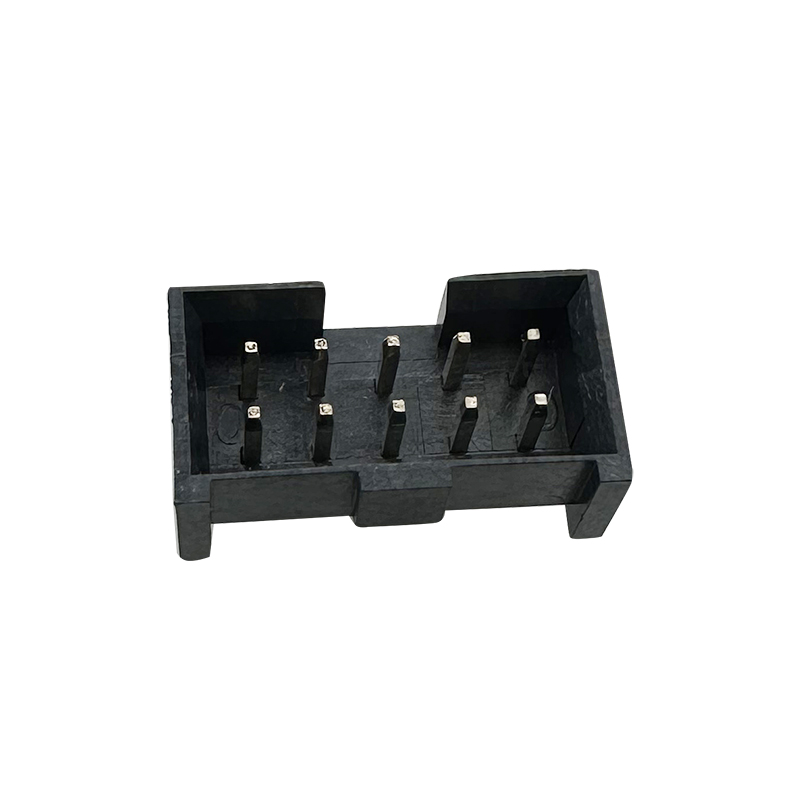

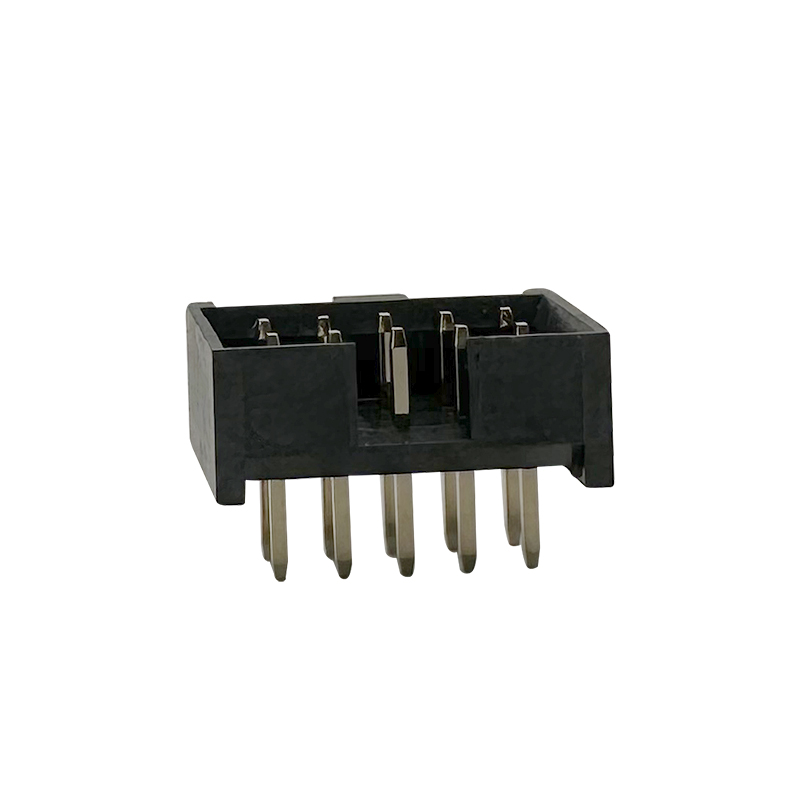

-Connector Type: Box header connectors are characterized
by a rectangular housing that encloses the pins, providing additional
mechanical stability and protection compared to standard headers. This design also helps in guiding and
aligning mating connectors during insertion.
-Height: The height of 4.8mm specifies the vertical
dimension of the connector when mounted on a PCB. This height provides adequate
clearance and mechanical stability, making it suitable for applications where a taller connector is
needed.
-Number of Contacts: Box header connectors are available in various
configurations with different numbers of contacts (pins). They can range
from single-row configurations with a
few pins to dual-row configurations with many pins, depending on the specific
application requirements.
-Material and Construction: These connectors are
typically constructed from durable materials such as high-temperature
thermoplastics or thermoset plastics. This ensures they can withstand the electrical and mechanical stresses
encountered in various operating environments.
-Number of
Contacts: Box header connectors are available in various configurations with
different numbers of contacts (pins). They can range from single-row
configurations with a few pins to dual-row configurations with many pins, depending on the specific application
requirements.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
