Product parameter:
Material:
Housing: PBT
UL94V-0, Black
Contacts: Brass
Plating:Gold
1u" over 50u" nickel
Electrical
Characteristics:
Current Rating:
3.0 AMP
Insulator
Resistance: 1000M Ohm min.
Withstand Voltage:
1000V AC/DC
Contact
Resistance: 20m Ohm max.
Operating
Temperature: -45ºC~+105ºC
Applications
1.Networking and
Communication Devices
2.Consumer
Electronics
3.Automotive
Electronics
4.Medical Devices
and Instrumentation
Features
-Number of
Contacts: Available in various configurations, typically ranging from a few
contacts to multiple rows of contacts, depending on application requirements.

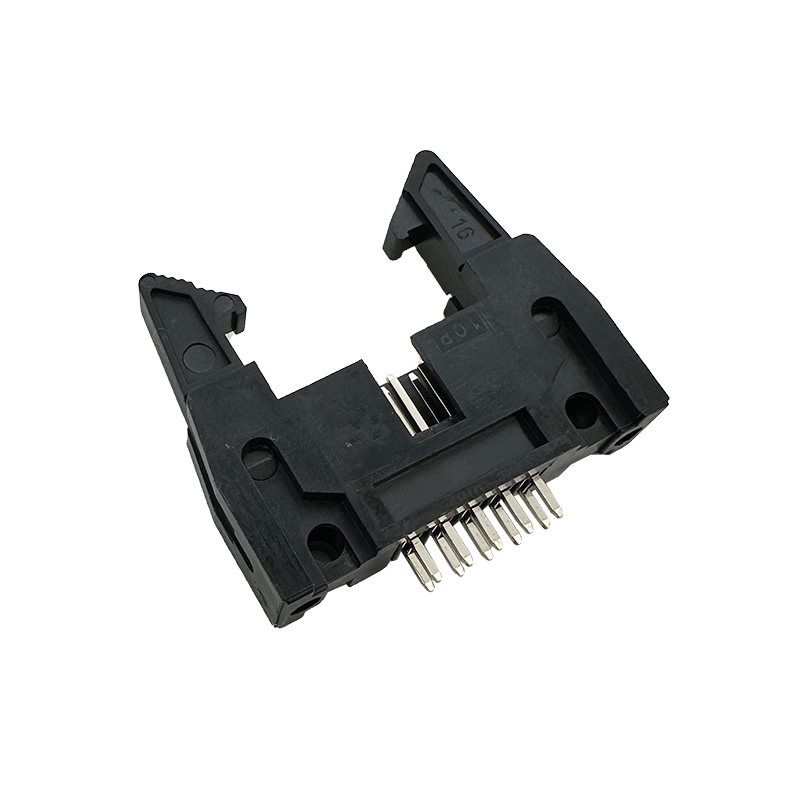

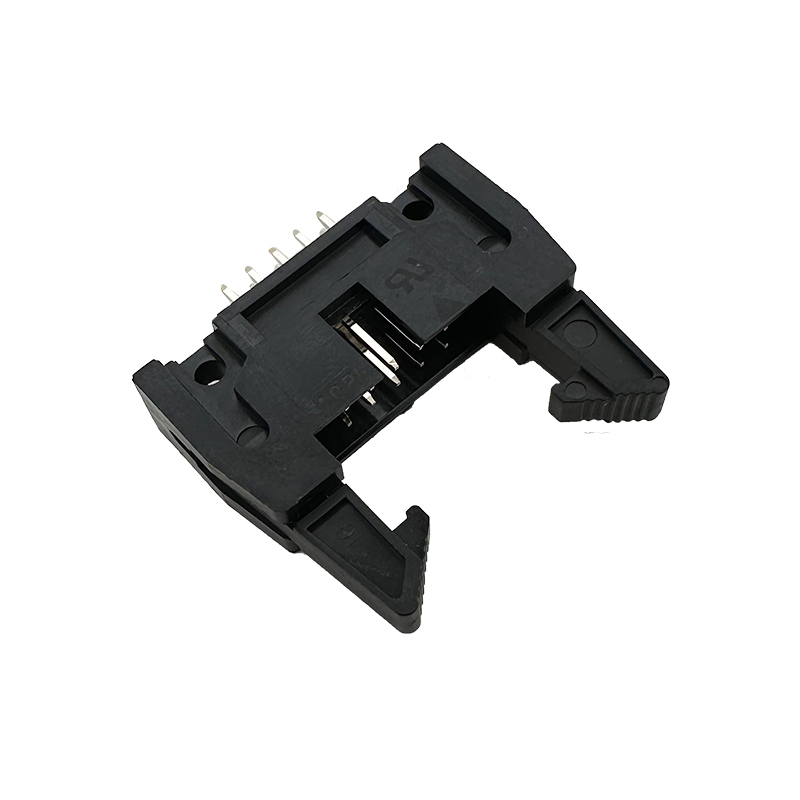

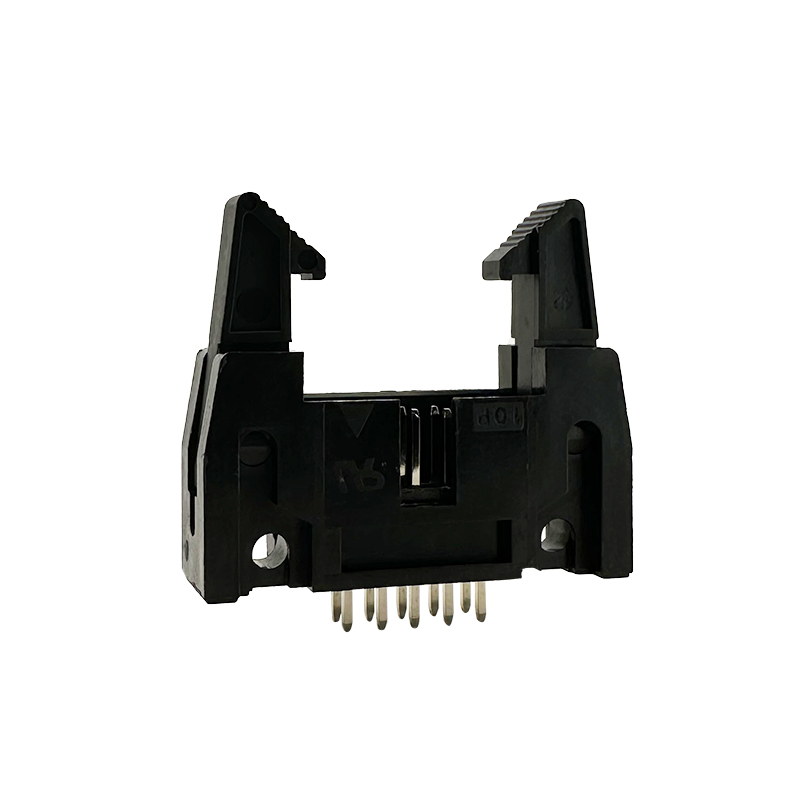

-Ejector
Mechanism: The ejector latch or lever provides additional mechanical stability,
making these connectors suitable for applications where vibration or movement
is a concern.
-Through-Hole
Mounting: Typically designed for through-hole mounting on PCBs, providing a
strong and reliable mechanical connection. This mounting style is suitable for
applications where robust PCB
attachment is required.
-Thermoplastic
Housing: Made from materials like PBT (Polybutylene Terephthalate) or Nylon,
providing mechanical strength, heat resistance, and resistance to environmental
factors.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
