Product parameter:
Material:
Housing: PA6T or
LCP UL94V-0, Black
Contacts: Brass
Plating:Gold
1u" over 50u" nickel
Electrical
Characteristics:
Current Rating:
1.5 AMP
Insulator
Resistance: 800M Ohm min.
Withstand Voltage:
500V AC/DC
Contact
Resistance: 20m Ohm max.
Operating
Temperature: -45ºC~+105ºC
Applications
1.Computers and
Peripherals
2.Industrial
Automation and Control Systems
3.Consumer
Electronics
4.Automotive
Electronics

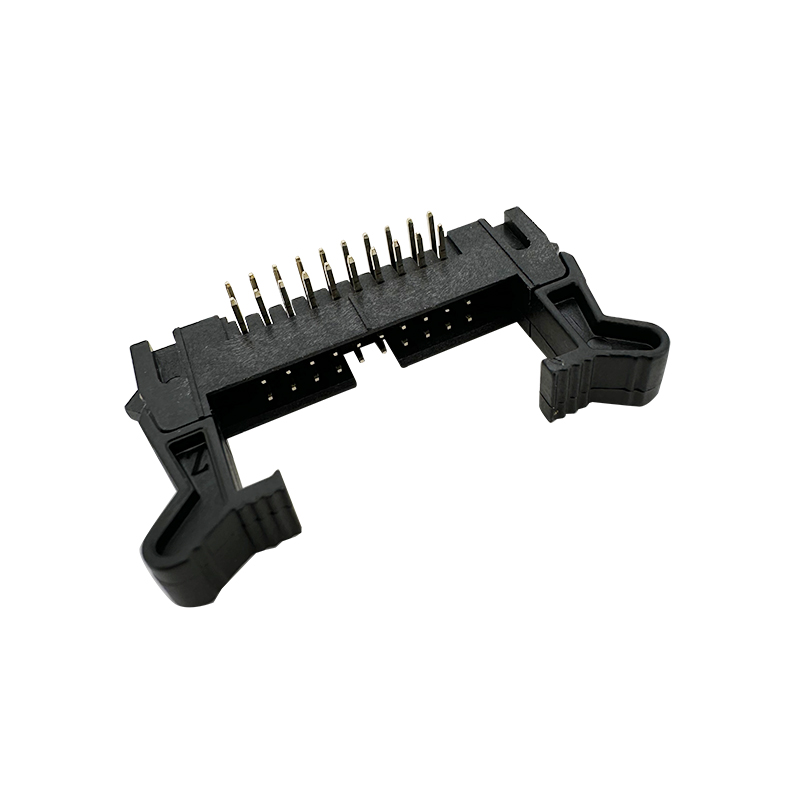

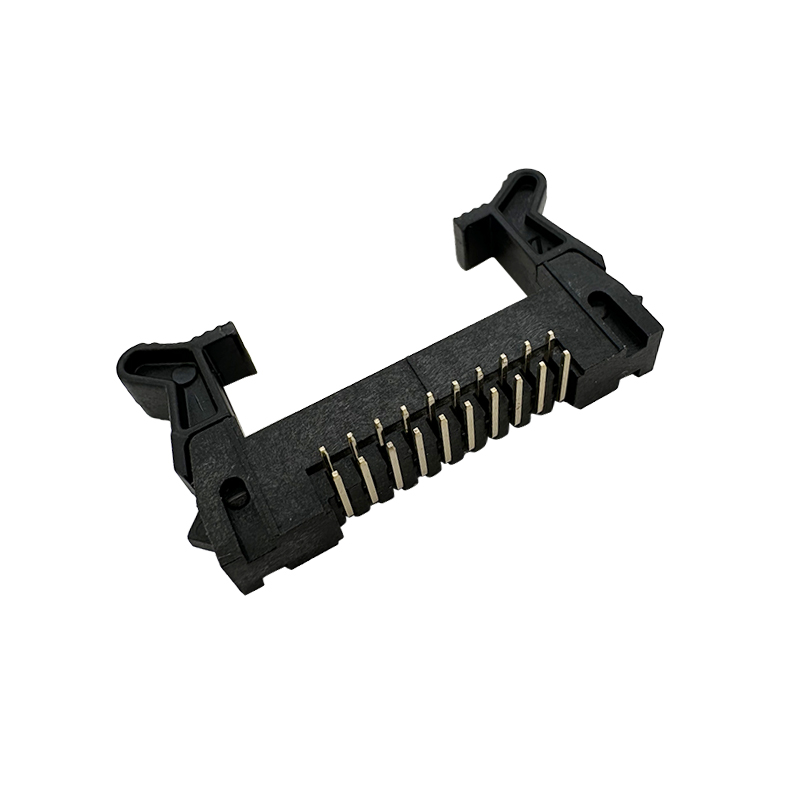

Features
-Connector Type:
Ejector header connectors feature a mechanism (often a latch or lever) that
allows for secure mating and easy unmating of the connector. This mechanism
provides additional retention force compared to standard header connectors, ensuring
a more robust connection.
-Design: The
design typically includes a housing with guiding features that assist in
aligning and mating the connectors correctly. The ejector mechanism helps to
ensure that the connector is securely latched into place, reducing the risk of
accidental disconnection.
-Materials: They
are often made from durable materials such as high-temperature thermoplastics
or thermoset plastics. These materials provide mechanical strength and
resilience to environmental factors like temperature fluctuations and vibrations.
-Number of
Contacts: Ejector header connectors are available in various configurations
with different numbers of contacts (pins). They can range from single-row configurations
with a few pins to dual-row configurations with many pins, depending on the
specific application requirements.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
