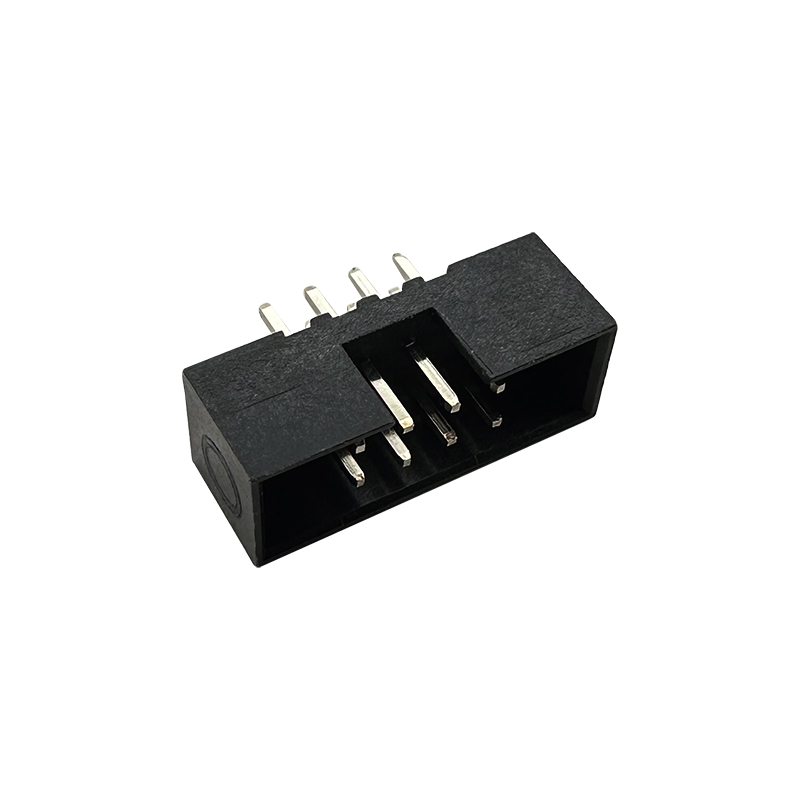

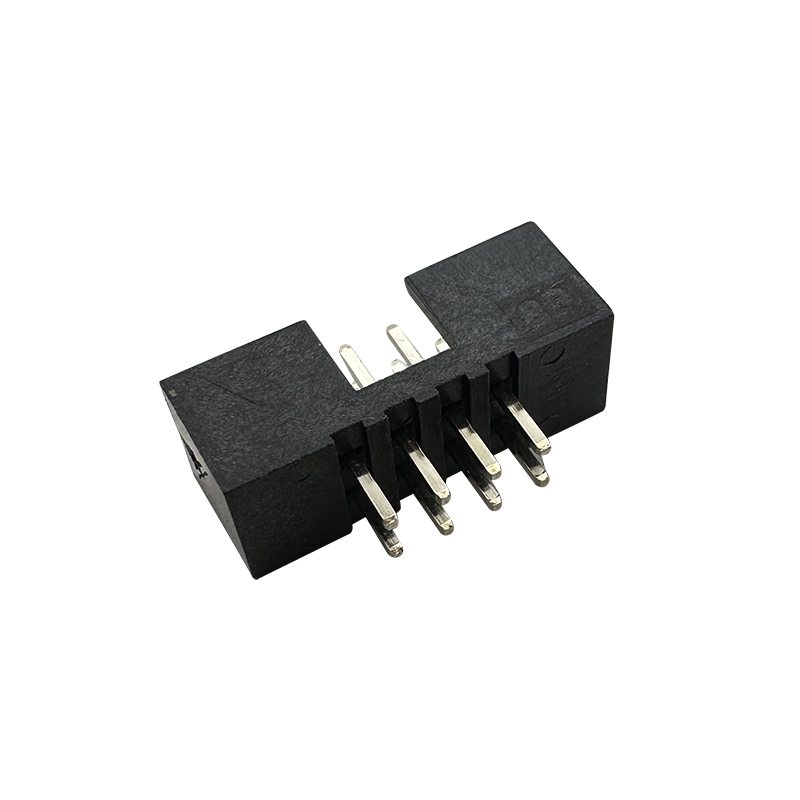

2.0mm Pitch Box Header Connector Height 5.7mm
Order Information
ERYAY02B-XX-S-B-口
XX-No.of 06~64pin
S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black G-Gray L-Blue
Product parameter:
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 800M Ohm min.
Withstand voltage:400V AC/DC
Operating Temperature: -45ºC~+105ºC
Applications
1. Automotive Electronics
2. Medical Devices
3. Test and Measurement Equipment
4. Aerospace and Defense
Features
- Pitch: The pitch of 2.0mm refers to the distance between the centerlines of adjacent contacts (pins). This standard pitch ensures compatibility with other components and boards designed for 2.0mm pitch connectors.
- Connector Type: Box header connectors are characterized by a rectangular housing that encloses the pins, providing additional mechanical stability and protection compared to standard headers.This design also helps in guiding and aligning mating connectors during insertion.
- Height: The height of 5.7mm specifies the vertical dimension of the connector when mounted on a PCB. This height provides ample clearance and mechanical stability, making it suitable for applications where a taller connector is necessary to accommodate components or ensure secure connections.
-Number of Contacts: Box header connectors are available in various configurations with different numbers of contacts (pins). They can range from single-row configurations with a few pins to dual-row configurations with many pins, depending on the specific application requirements.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
