Product parameter:
Material:
Housing: PA6T or
LCP UL94V-0, Black
Contacts: Brass
Plating:Gold
1u" over 50u" nickel
Electrical
Characteristics:
Current Rating: 1
AMP
Insulator
Resistance: 1000M Ohm min.
Withstand Voltage:
500V AC/DC
Contact
Resistance: 20m Ohm max.
Operating
Temperature: -45ºC~+105ºC
Applications
1.Embedded Systems
2.Telecommunications
Equipment
3.Industrial
Automation
4.Medical Devices
Features
-Insulator
Material: The connector body is typically made from high-temperature plastic
materials such as PBT (polybutylene terephthalate) or Nylon, providing
mechanical durability and resistance to environmental factors.
-Mounting
Type:Designed for through-hole mounting on PCBs (Printed Circuit Boards) or
sometimes for surface-mount configurations. Through-hole mounting ensures
secure attachment and reliable
electrical connections suitable for various industrial and consumer electronics
applications.

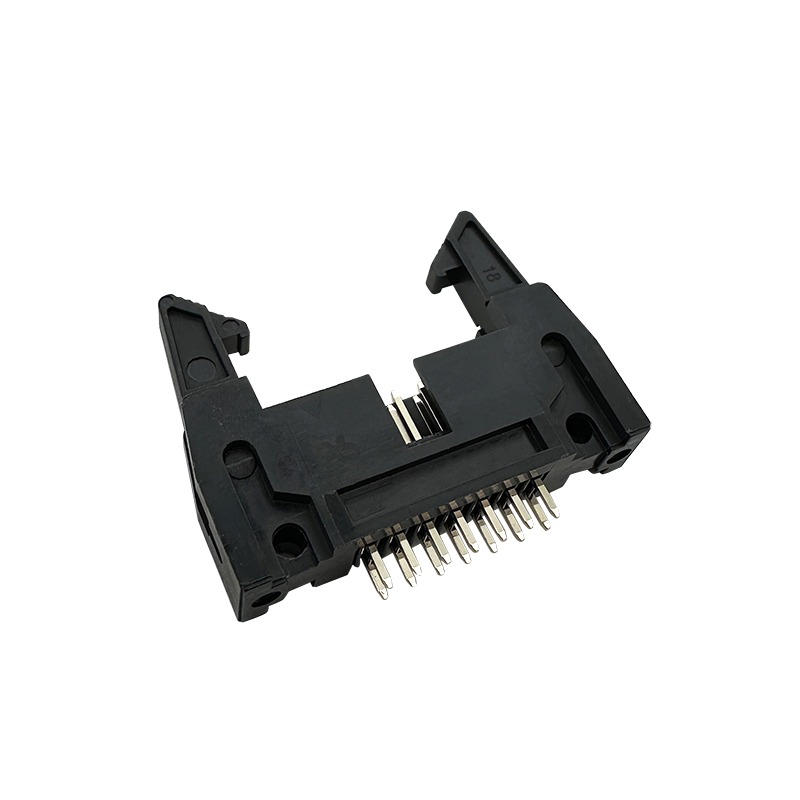

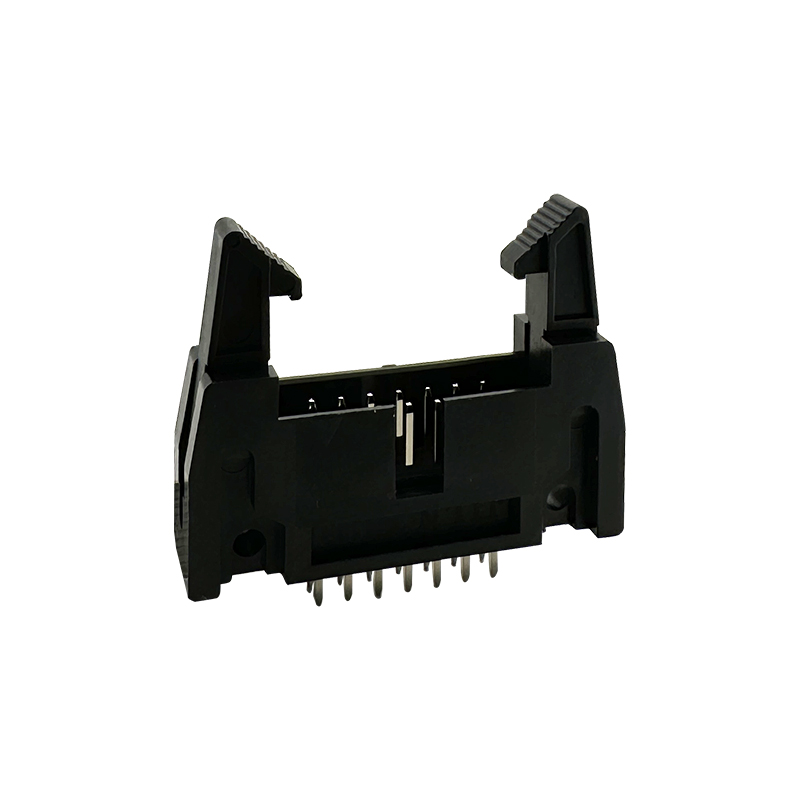

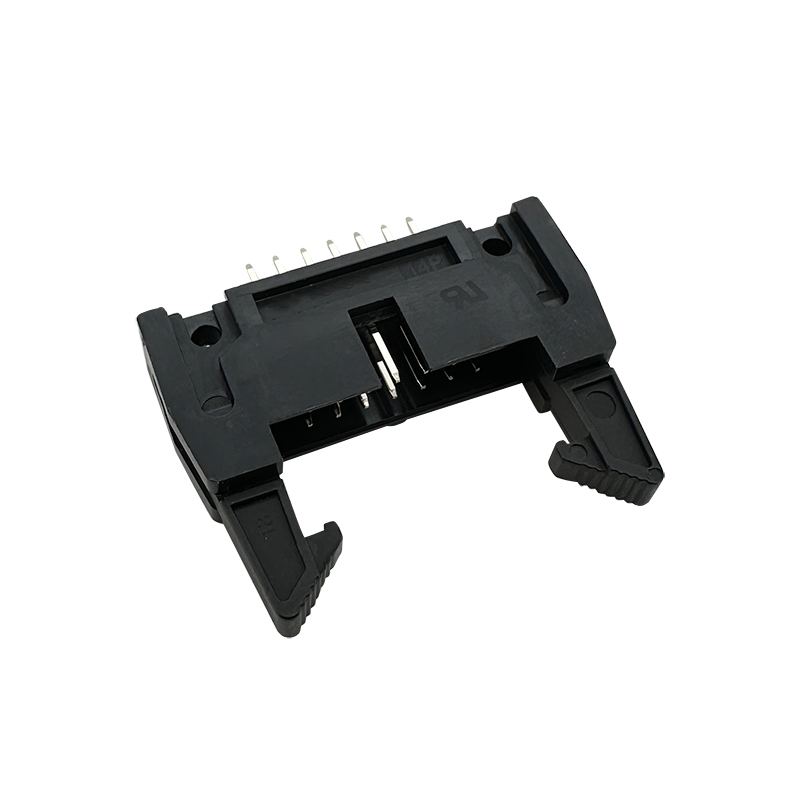

-Ejector
Mechanism:Ejector headers feature an ejector mechanism that allows for easy
insertion and extraction of mating connectors or boards. This mechanism
enhances usability and reliability during assembly, maintenance, and service operations.
-Current
Rating:Rated for a range of current levels depending on the specific design and
application requirements. Typically suitable for low to moderate current
applications typical in consumer electronics, industrial controls, and telecommunications equipment.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
