Brand ERYCO
Product origin CHINA

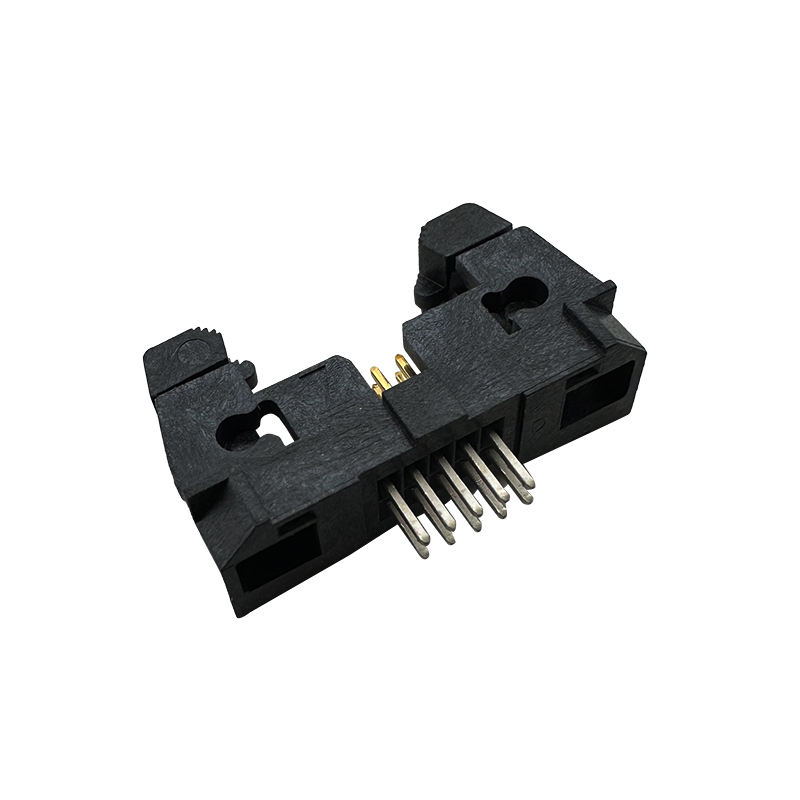

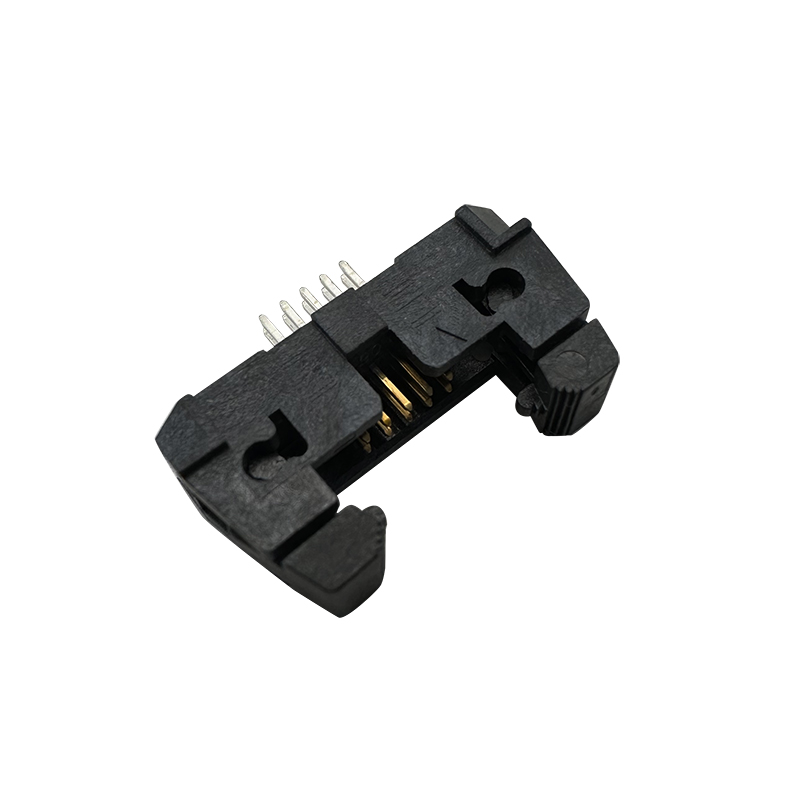

1.27x1.27mm Pitch Box Header Connector With Latch
Order Information:
ERYAY01CA-XX-S-B-C
XX-No.of 06~64 pin
S-Straight pin R-Right Angle Pin T-SMT Pin
Color: B=Black
Material:B=PA6T C=LCP D=PA9T
Product parameter:
Material:
Housing: PA6T or LCP UL94V-0, Black
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 500V AC/DC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC
Applications
1.Embedded Systems
2.Telecommunications Equipment
3.Computer Peripherals
4.Medical Devices
Features
-Contact Material: Contacts are usually made from materials such as phosphor bronze or copper alloy, ensuring good electrical conductivity and mechanical strength.
-Contact Plating: Contacts may be plated with materials like gold or tin to enhance corrosion resistance, ensure reliable electrical connections, and improve solderability.
-Insulator Material:The connector body is typically made from high-temperature plastic materials such as PBT (polybutylene terephthalate) or Nylon, providing mechanical durability and resistance to environmental factors.
-Mounting Type:Designed for through-hole mounting on PCBs (Printed Circuit Boards) or sometimes for surface-mount configurations. Through-hole mounting ensures secure attachment and reliable electrical connections suitable for various industrial and consumer electronics applications.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
