Product parameter:
Material:
Housing: PBT UL94V-0, Black
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 1000V AC/DC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC
Applications
1.Networking and Communication Devices
2.Consumer Electronics
3.Automotive Electronics
4.Medical Devices and Instrumentation
Features

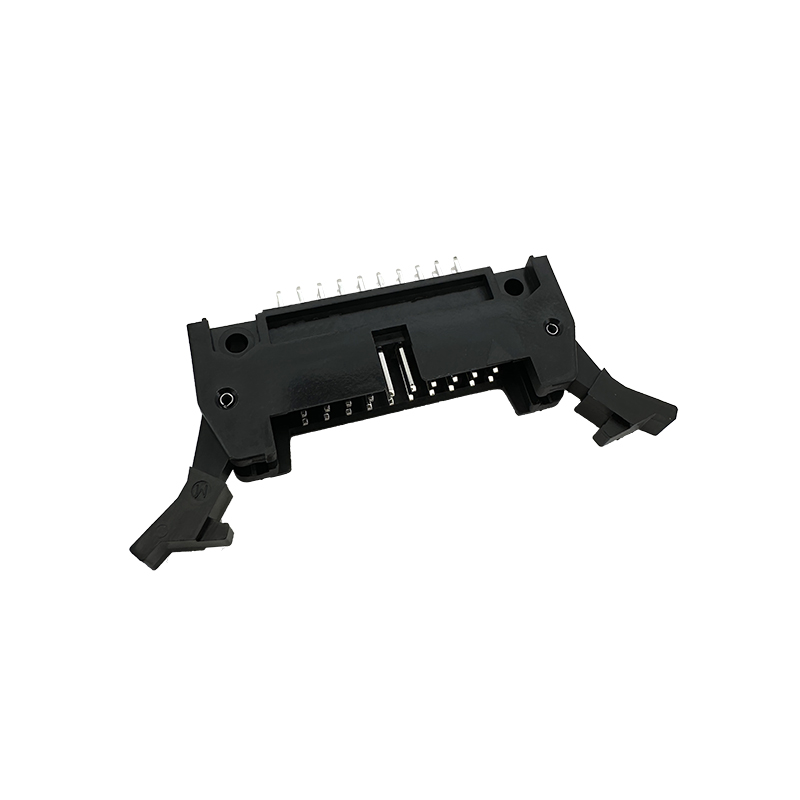

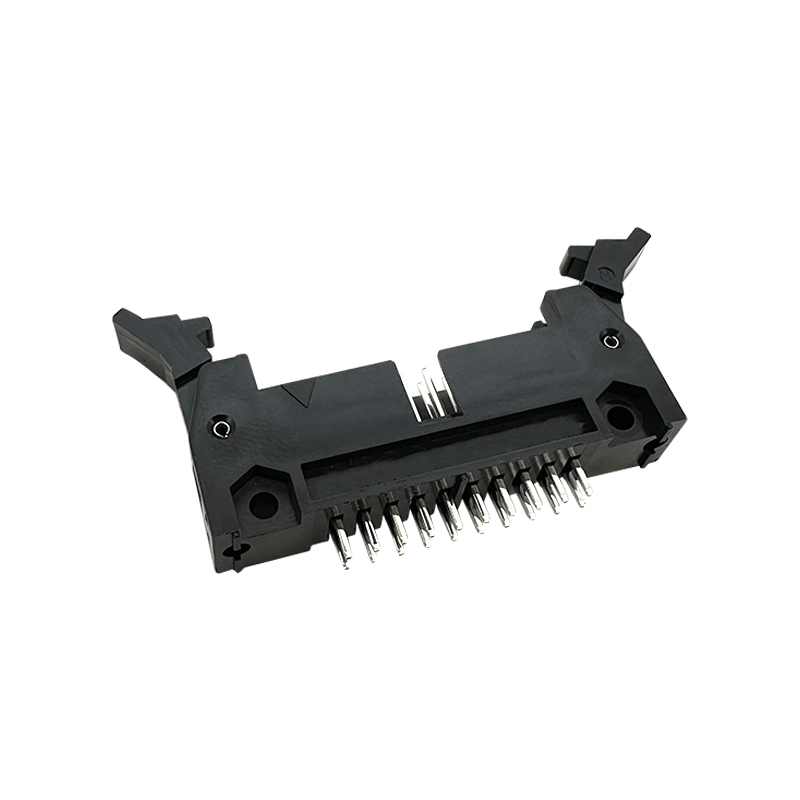

-Ejector Mechanism: The ejector latch or lever provides
additional mechanical stability, making these connectors suitable for
applications where vibration or movement is a concern.Mating Force: Designed to
provide a secure and stable connection with appropriate mating force, ensuring
reliable performance in demanding environments.
-Through-Hole Mounting: Typically designed for
through-hole mounting on PCBs, providing a strong and reliable mechanical
connection. This mounting style is suitable for applications where robust PCB attachment is required.Surface Mount
Technology (SMT): Some ejector headers are available with surface mount
terminations, enabling automated assembly processes and compatibility with SMT
PCB designs.
-Thermoplastic Housing: Made from materials like PBT
(Polybutylene Terephthalate) or Nylon, providing mechanical strength, heat
resistance, and resistance to environmental factors.
-Polarization Features: Some ejector connectors may
include polarization features or keying options to ensure proper alignment
during mating, preventing incorrect connections that could damage components or
affect performance.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
