Brand ERYCO
Product origin CHINA

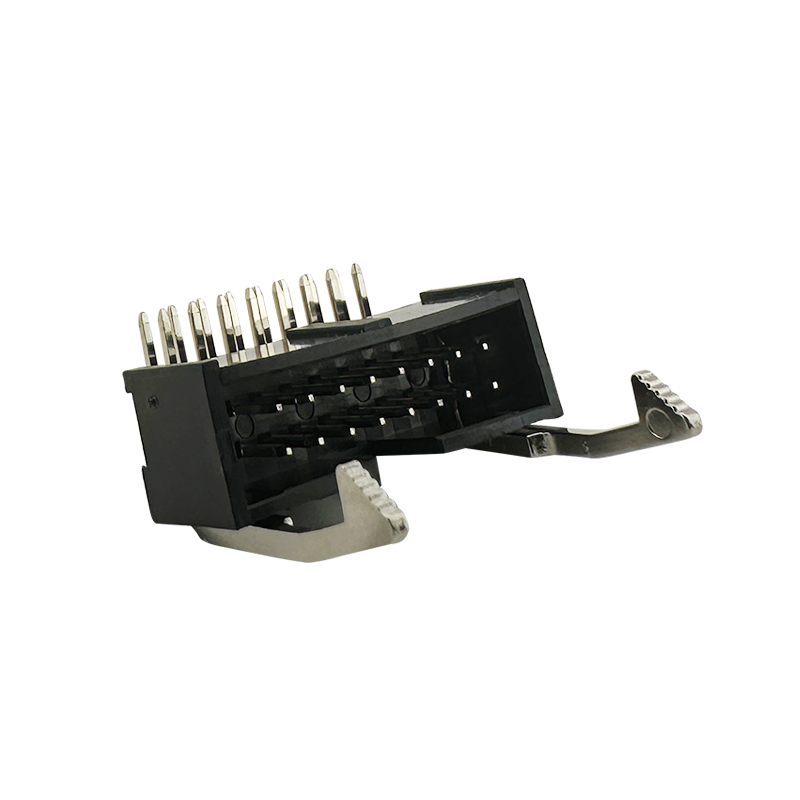

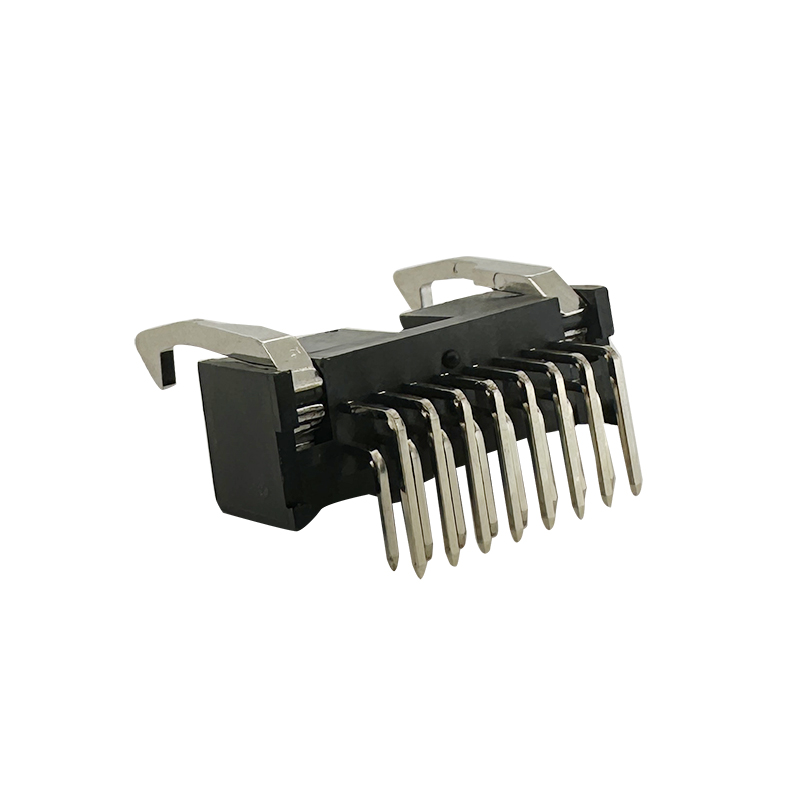

2.54mm Pitch Box Header Connector
Order Information
ERYAY02G-XX-S-B-D1-口
XX-No.of 06~64pin
S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black G-Gray L-Blue
D-Long tatch 14.5mm D1-Short tatch 10.65mm
Material:NONE=PBT B=PA6T
Product parameter:
Material:
Housing: PBT UL94V-0 / PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 3 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:1000V AC/DC
Operating Temperature: -45ºC~+105ºC
Applications
1.Consumer Electronics
2.Networking Equipment
3.Test and Measurement Equipment
4.LED Lighting Systems
Features
-Housing: Made from durable thermoplastics or thermoset materials, providing mechanical strength and resistance to heat, chemicals, and environmental factors.
-Termination Style: Designed for through-hole soldering on the PCB. The pins of the box header extend through holes in the PCB and are soldered on the opposite side, providing a secure and reliable electrical connection.
-Current Rating and Voltage: The connector is rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications. These ratings are typically specified by the manufacturer.
-Keying and Polarization: Some box headers may include keying features to ensure proper alignment during mating and prevent incorrect connections. This helps in maintaining electrical integrity and preventing damage to components.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
