Product parameter:
Material:
Housing: LCP
UL94V-0
Plug spring:
phosphor bronze,
Plating: Tin
Plated Over Nickel
Electrical
Characteristics:
Voltage rating: 50
VAC
Current rating:
0.4 AMP
Dielectric Withstandingf
Voltage: 200 VAC R.M.S.
Insulation
resistance: 500M ohm Min
Contact
resistance: 20m ohm. max.
Temperature range:
-40℃ To +85℃.
Applications
1. Medical Devices
2. Industrial
Equipment
3.
Telecommunications
4. LED Lighting
Features
-Connector Type:

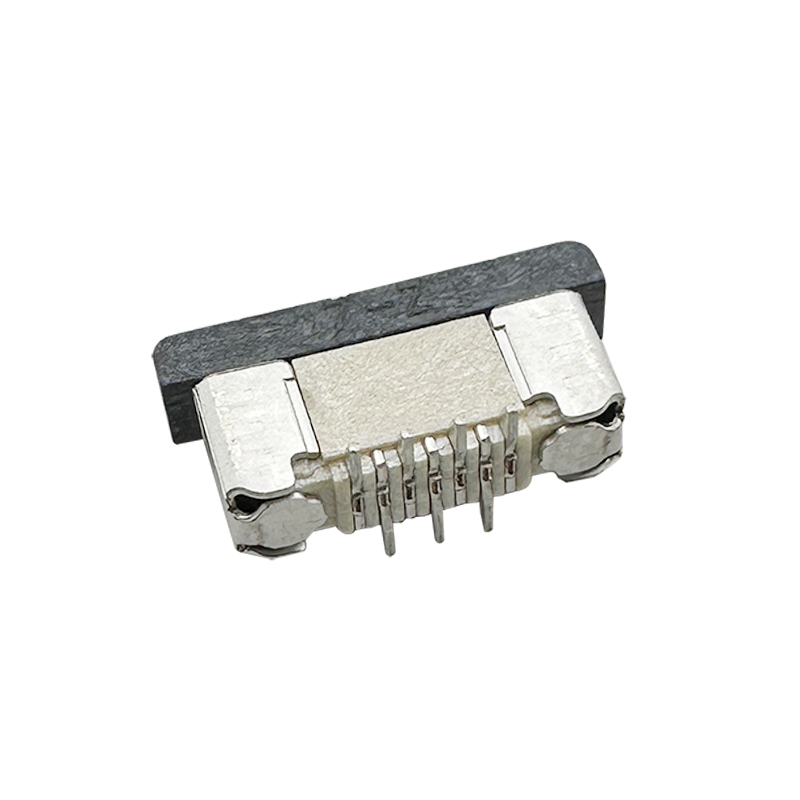

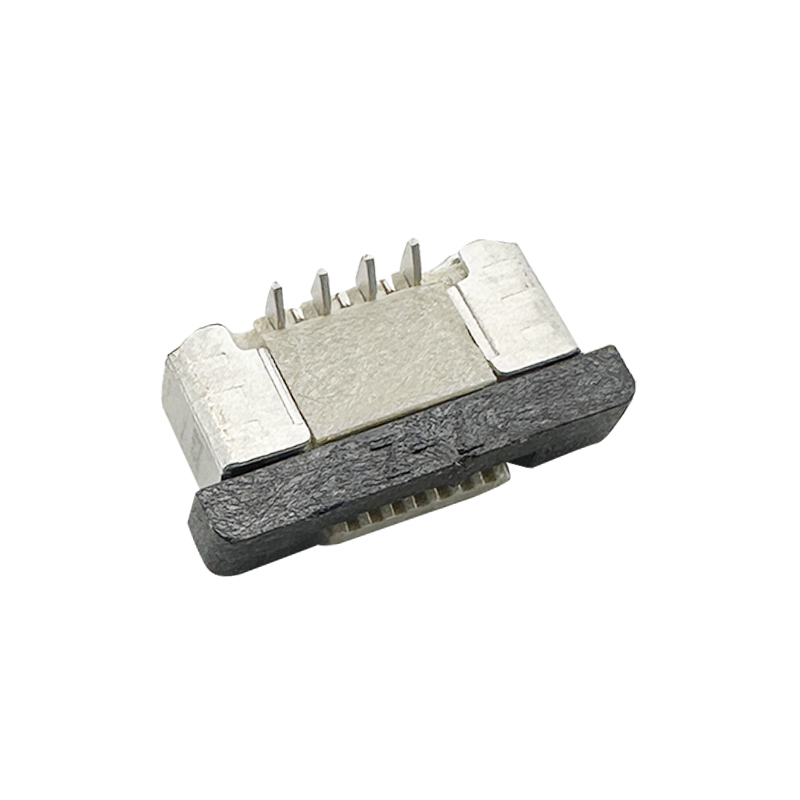

These connectors are sockets designed for 0.5mm pitch flexible printed circuits
(FPC) and flexible flat cables (FFC). They provide a reliable interface for
connecting flexible circuits to printed circuit boards (PCBs).
-Pitch and Size:
The connectors have a pitch (distance between adjacent contacts) of 0.5mm,
suitable for applications requiring fine pitch connections. The overall height
(H) is approximately 2.0mm, providing sufficient clearance for the flexible
circuits and ensuring compatibility with standard PCB layouts.
-ZIF Mechanism:
These connectors feature a Zero Insertion Force (ZIF) mechanism, which allows
for insertion and removal of the flexible circuits without applying significant
force. This minimizes the risk of damaging the circuits during assembly or
maintenance, making them ideal for applications where frequent connection/disconnection
is necessary.
-Bottom/Upper
Contact Design: These connectors can have both bottom and upper contacts, where
the contact points are located on both the underside and top side of the
connector. This dual contact design facilitates versatile connectivity options,
enabling direct contact with the PCB pads on either side for optimized electrical
performance and reliable signal transmission.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
