Product parameter:
Material:
Housing: LCP UL94V-0
Contact: Copper
alloy
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.3 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +85℃
Applications
1.Printed Circuit Board (PCB) Interconnections
2. Industrial Applications
3. Consumer Electronics
4.Telecommunications
Features

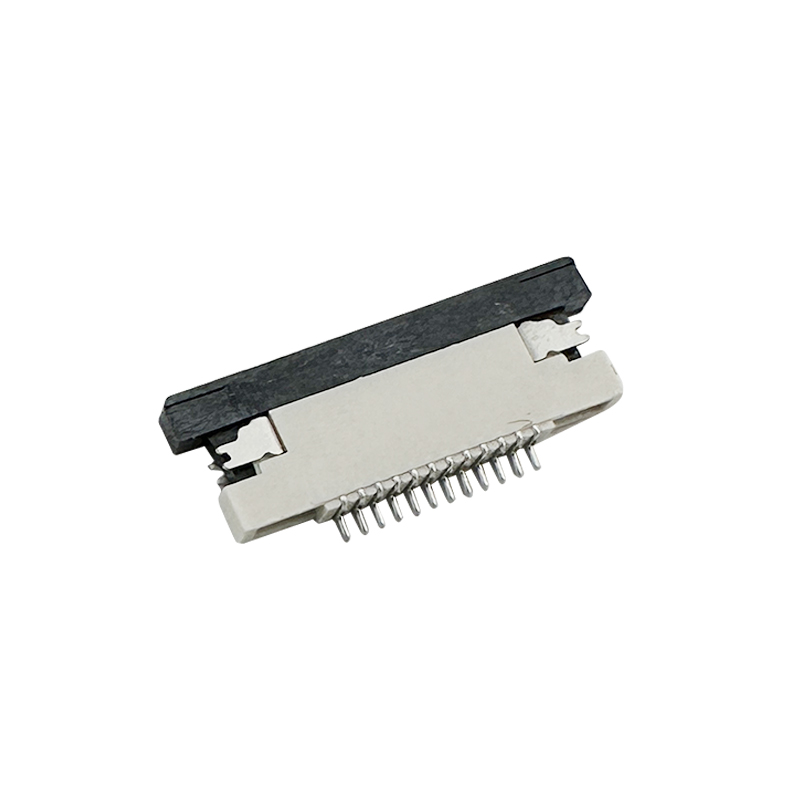

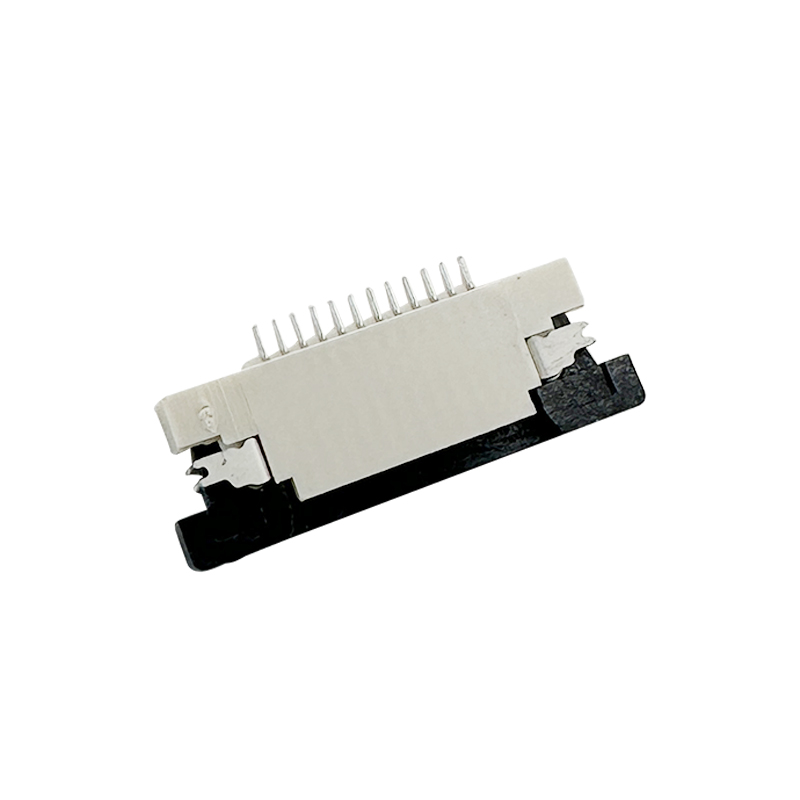

-Pitch and Size: The connectors have a pitch (distance
between adjacent contacts) of 0.5mm, suitable for applications requiring fine
pitch connections. The overall height (H) is approximately 1.2mm, providing
sufficient clearance for the flexible circuits and ensuring compatibility with
standard PCB layouts.
-ZIF Mechanism: These connectors feature a Zero Insertion
Force (ZIF) mechanism, which allows for insertion and removal of the flexible
circuits without applying significant force. This minimizes the risk of
damaging the circuits during assembly or maintenance, making them ideal for
applications where frequent connection/disconnection is necessary.
-Bottom/Upper Contact Design: These connectors can have
both bottom and upper contacts, where the contact points are located on both
the underside and top side of the connector. This dual contact design
facilitates versatile connectivity options, enabling direct contact with the
PCB pads on either side for optimized electrical performance and reliable
signal transmission.
-Surface Mount Technology (SMT): Designed for surface
mount assembly, these connectors are soldered directly onto the surface of a
PCB. This allows for efficient and automated assembly processes, ensuring
secure mechanical attachment to the board and minimizing assembly time and
costs.
Dimensions(Please refer to the attached 2D drawings
for detailed specifications.):
