Brand ERYCO
Product origin CHINA

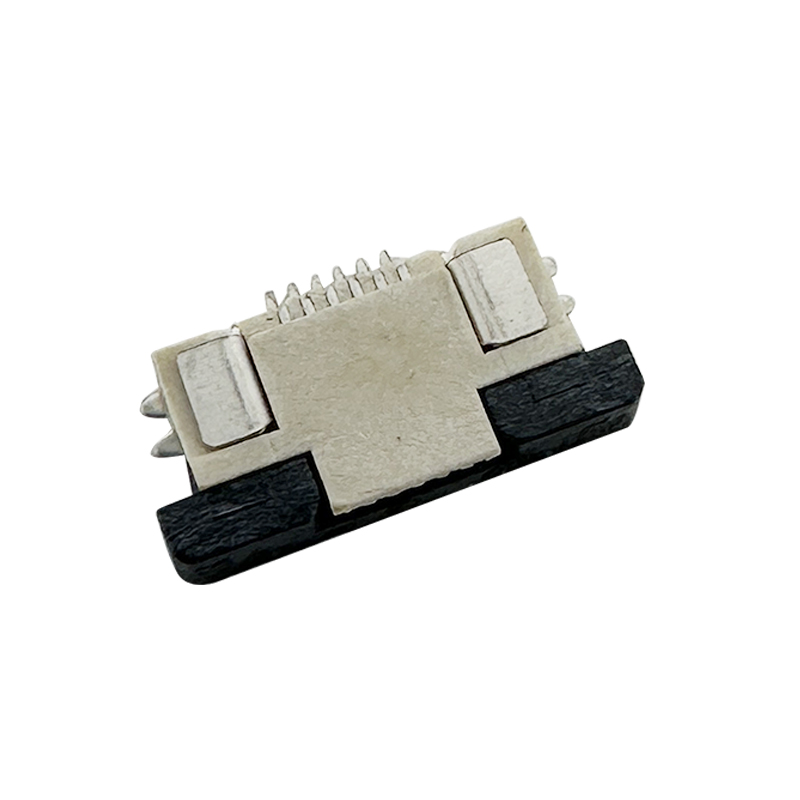

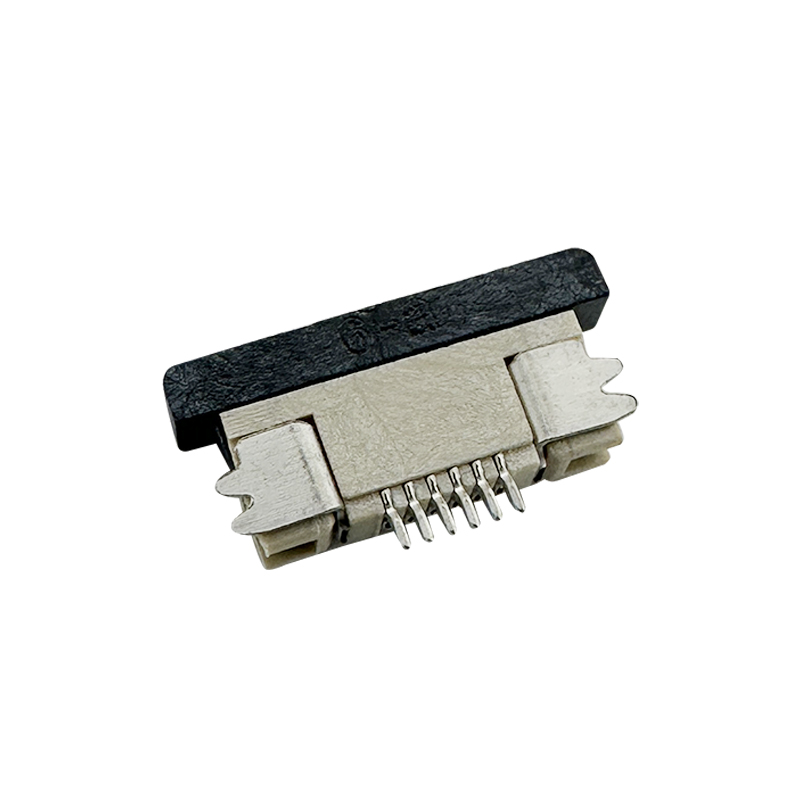

0.5mm ZIF SMT H2.0mm bottom/upper contacts FPC/FFC connector
Order Information
ERYAY242-2.0-XX-T-U-R
XX-No.of 06 ~ 60pin
T-SMT Pin
U-Upper Contact L-Lower Contact
R-Reel T-Tubes
Product parameter:
Material:
Housing: LCP UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug
Electrical Characteristics:
Rated current:0.4A
Rated voltage:50V
Withstand voltage:200V
Contact resistance:≤20mΩ
Insulation resistance:500MΩ
Operating Temperature: -20℃ To +85℃
Applications
1. Industrial Equipment
2 .Telecommunications
3. LED Lighting
4. Testing and Measurement Equipment
Features
-Connector Type: These connectors are sockets designed for 0.5mm pitch flexible printed circuits (FPC) and flexible flat cables (FFC). They provide a reliable interface for connecting flexible circuits to printed circuit boards (PCBs).
-Pitch and Size: The connectors have a pitch (distance between adjacent contacts) of 0.5mm, suitable for applications requiring fine pitch connections. The overall height (H) is approximately 2.0mm, providing sufficient clearance for the flexible circuits and ensuring compatibility with standard PCB layouts.
-ZIF Mechanism: These connectors feature a Zero Insertion Force (ZIF) mechanism, which allows for insertion and removal of the flexible circuits without applying significant force. This minimizes the risk of damaging the circuits during assembly or maintenance, making them ideal for applications where frequent connection/disconnection is necessary.
-Bottom/Upper Contact Design: These connectors can have both bottom and upper contacts, where the contact points are located on both the underside and top side of the connector. This dual contact design facilitates versatile connectivity options, enabling direct contact with the PCB pads on either side for optimized electrical performance and reliable signal transmission.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
