Product parameter:
Material:
Housing: LCP
UL94V-0
Contact: Copper alloy
Plating: Tin
Plated Over Nickel
Electrical
Characteristics:
Voltage rating: 50
VAC
Current rating: 0.3
AMP
Dielectric Withstandingf
Voltage: 500 VAC R.M.S.
Insulation
resistance: 500m ohm Min
Contact
resistance: 30m ohm. max.
Temperature range:
-40℃ To +85℃
Applications
1.
Telecommunications
2. LED Lighting
3. Testing and
Measurement Equipmentity
4. Military and
Aerospace

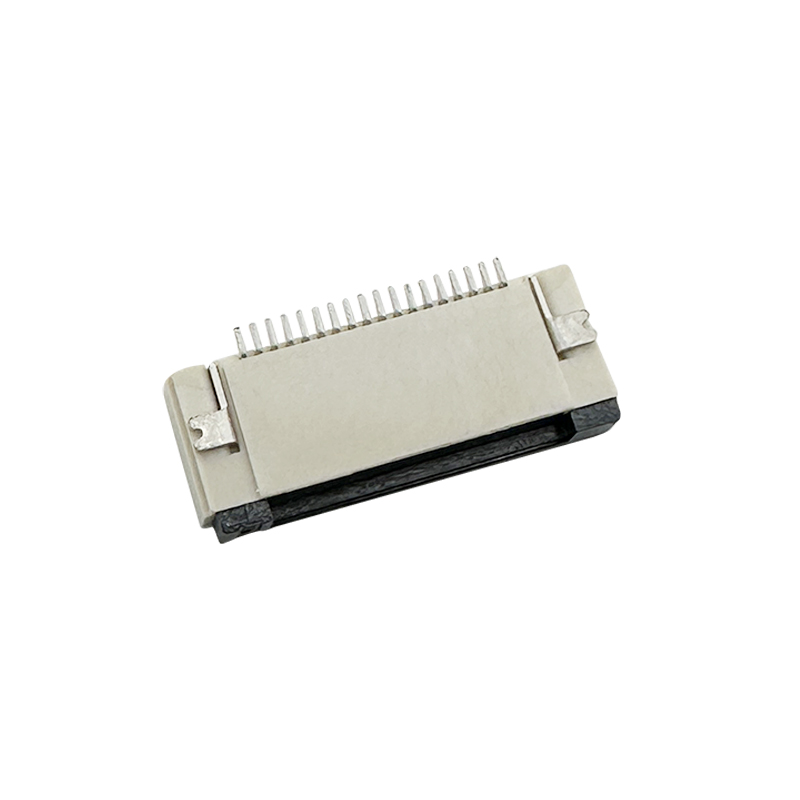

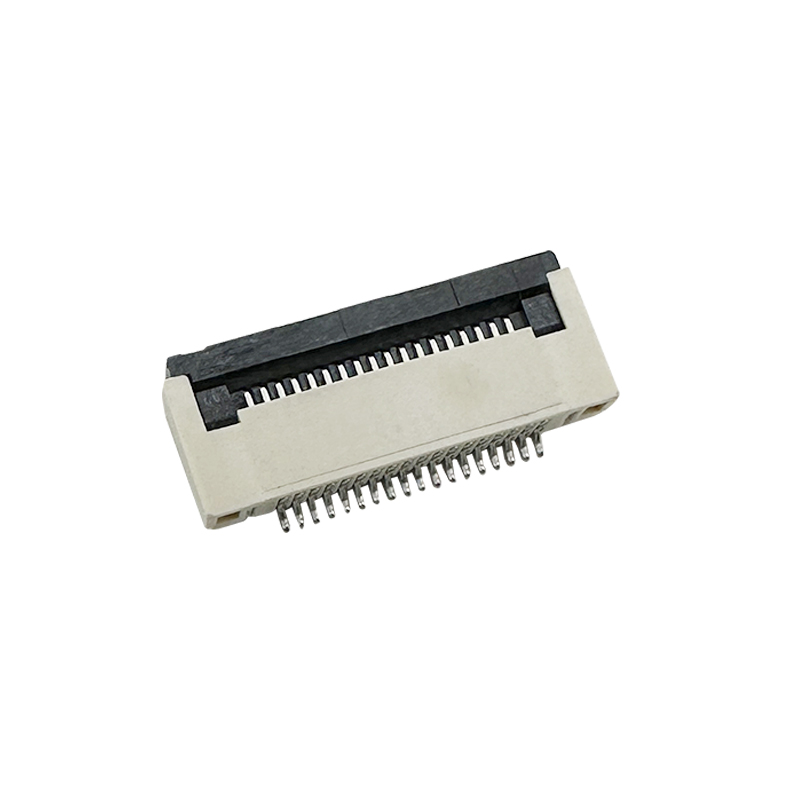

Features
-Pitch and Size:
The connectors have a pitch (distance between adjacent contacts) of 0.5mm,
suitable for applications requiring fine pitch connections. The overall height
(H) is approximately 1.2mm, providing sufficient clearance for the flexible
circuits and ensuring compatibility with standard PCB layouts.
-ZIF Mechanism:
These connectors feature a Zero Insertion Force (ZIF) mechanism, which allows
for insertion and removal of the flexible circuits without applying significant
force. This minimizes the risk of damaging the circuits during assembly or
maintenance, making them ideal for applications where frequent connection/disconnection
is necessary.
-Bottom/Upper
Contact Design: These connectors can have both bottom and upper contacts, where
the contact points are located on both the underside and top side of the
connector. This dual contact design facilitates versatile connectivity options,
enabling direct contact with the PCB pads on either side for optimized electrical
performance and reliable signal transmission.
-Surface Mount
Technology (SMT): Designed for surface mount assembly, these connectors are
soldered directly onto the surface of a PCB. This allows for efficient and
automated assembly processes, ensuring secure mechanical attachment to the
board and minimizing assembly time and costs.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
