Product parameter:
Material:
Housing: LCP
UL94V-0
Actuator:LCP
UL94V-0
Contacts:Copper
Alloy,Tin Over Nickel
PEG:Copper
Alloy,Tin Over Nickel
Electrical
Voltage rating: 50
V
Current Rating:
0.4 A
Withstanding
Voltage: 200 V
Insulation
resistance: 500MΩ.Min.
Contact
resistance: 20 mΩ.Max.
Mechanical
Temp. Range: -25 ° C ~ + 85 ° C
Applications
1. Consumer
Electronics
2. Automotive
Electronics
3. Medical Devices
4. Industrial
Equipmen
Features

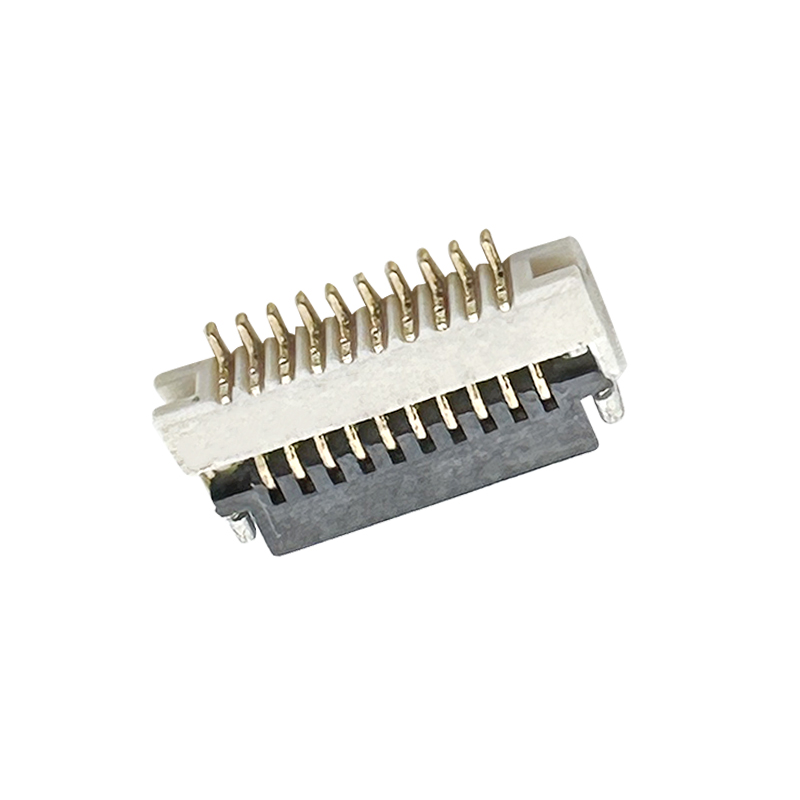

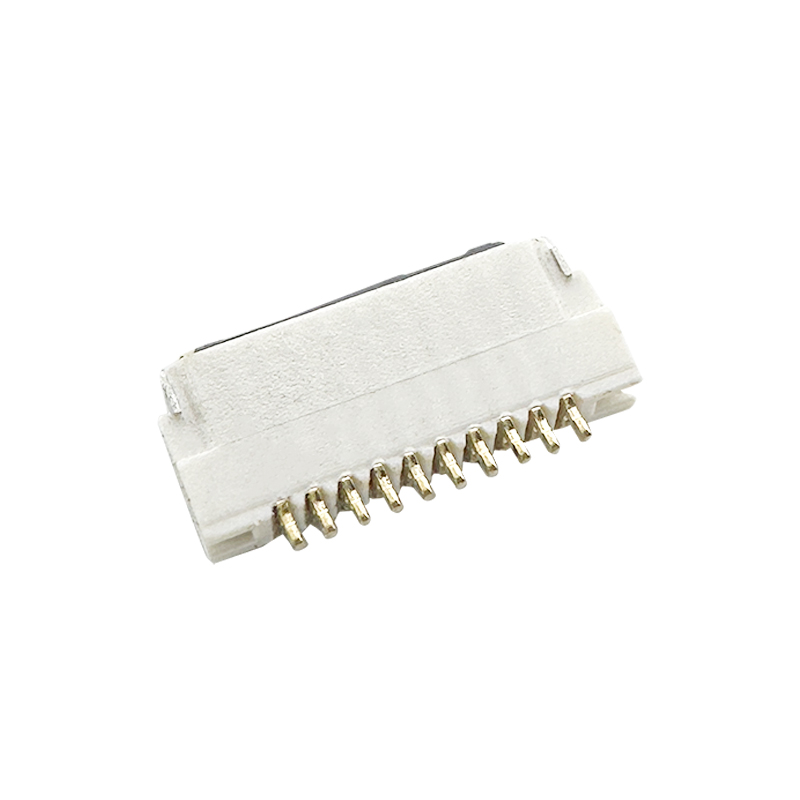

-Connector Type:
Designed as sockets for 0.5mm pitch flexible printed circuits (FPC) and
flexible flat cables (FFC), these connectors are intended for applications
requiring secure and reliable electrical connections.
-Pitch and Size:
These connectors have a pitch (distance between adjacent contacts) of 0.5mm,
suitable for applications requiring fine pitch connections. The overall height
(H) is approximately 1.5mm, providing sufficient clearance and space for
circuit flexibility.
-Hinged Lock
Mechanism: The hinged lock mechanism provides a secure locking feature for the
FPC/FFC. This ensures a stable connection and prevents accidental disconnection
due to vibrations or movement, making them ideal for applications requiring
robust mechanical stability.
-Bottom Contact
Design: These connectors feature bottom contacts, where the contacts are
located on the bottom side of the connector. This design facilitates direct
contact with the PCB pads, optimizing electrical performance and signal
integrity.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
