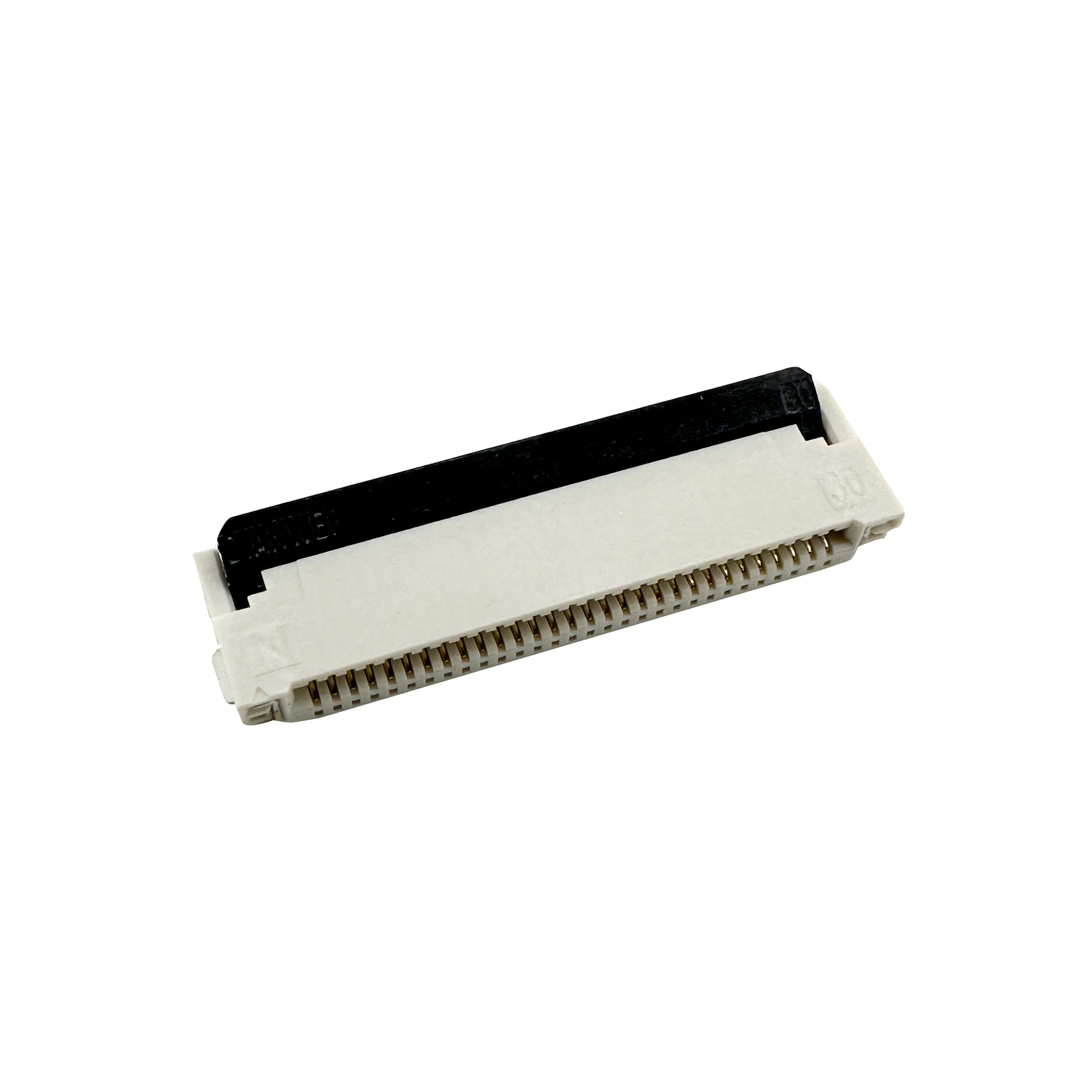

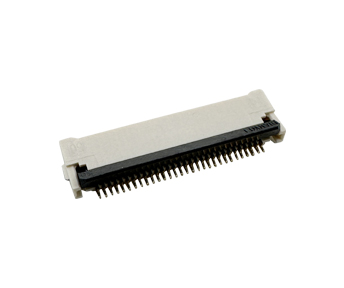

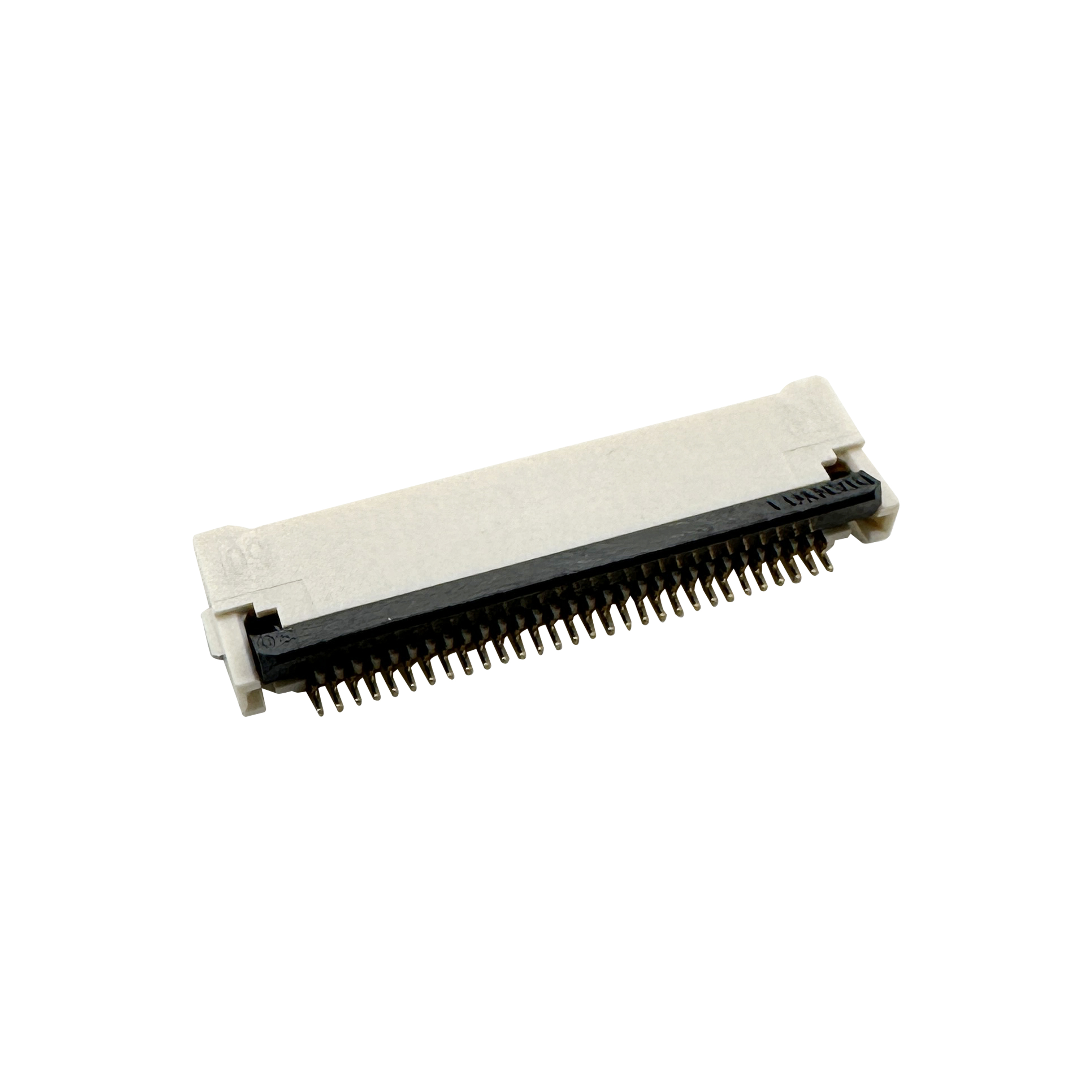

0.5mm back flip SMT H2.0mm dual contacts 4-60P FPC/FFC connectors
Order Information
ERYAY42I-2.0-XX-T-R
XX-No.of 04 ~ 60pin
T-SMT Pin
Packing:R-Reel T-Tube
Product parameter:
Material:
Housing:LCP, UL94V-0
Terminal:Phosphor bronze ,Gold/Tin
Cover:LCP, UL94V-0
Solder:Phosphor bronze ,Tin
Electrical
Voltage rating: 50 V
Insulation resistance: 500 MΩ.Min.
Contact resistance: 30 mΩ.Max.
Mechanical
Temp. Range: -25 ° C ~ + 85 ° C
Applications
1. Telecommunications
2. Consumer Appliances
3. LED Lighting
4. Testing and Measurement Equipment
Features
-Connector Type: These connectors are designed as sockets for 0.5mm pitch flexible printed circuits (FPC) and flexible flat cables (FFC). They are intended for applications where flexibility and reliable electrical connections are essential.
-Pitch and Size: They feature a pitch (distance between adjacent contacts) of 0.5mm, which is suitable for applications requiring fine pitch connections. The overall height (H) is approximately 2.0mm, which can vary slightly depending on the manufacturer and specific model.
-Back Flip Design: The "back flip" mechanism allows for the FPC/FFC to be inserted from the rear of the connector. This design feature is beneficial in applications where space constraints necessitate a particular orientation for insertion or where access may be limited.
-Dual Contacts: These connectors feature dual contacts, providing multiple contact points for each signal or power line. This configuration enhances electrical conductivity and ensures a stable connection, reducing the risk of signal loss or interruption.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
