Product parameter:
Material:
Housing: PA6T
UL94V-0
Contacts: Brass or
Phosphor Bronze
Plating: Au or Sn
over 50u" Ni
Electrical
Characteristics:
Current Rating:
1.5 AMP
Withstanding Voltage:
500V AC/DC
Insulator
Resistance: 1000MΩ Min
Contact
Resistance: 20mΩ Max
Operating
Temperature: -40ºC~+105ºC
Applications
1.Printed Circuit
Board (PCB) Interconnections
2. Industrial
Applications
3. Consumer
Electronics
4.Telecommunications
Features
-Pitch: The pitch
refers to the distance between adjacent pins or contacts. In this case, it is
2.0mm, which is the standard spacing for this type of connector.

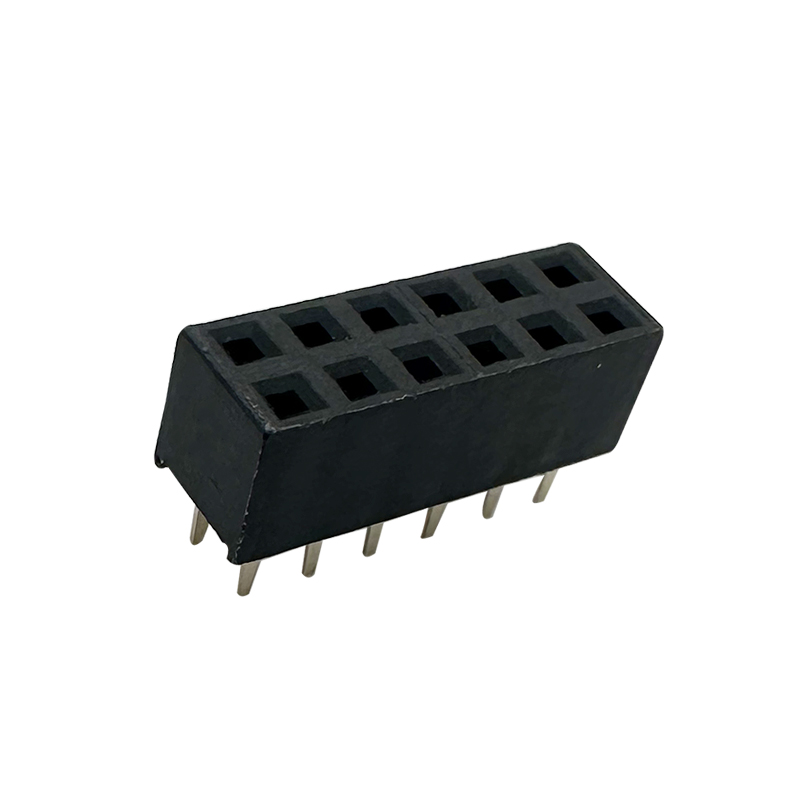

-Number of
Contacts: Female header connectors come in various configurations with different
numbers of contacts (pins). These can range from single-row configurations with
a few pins to dual-row configurations with many pins, depending on the specific
application requirements.
-Height: The
height of 4.3mm specifies how much vertical space the connector occupies on a
PCB when soldered or mounted. This height provides adequate clearance and
mechanical stability for applications where slightly taller connectors are
needed.

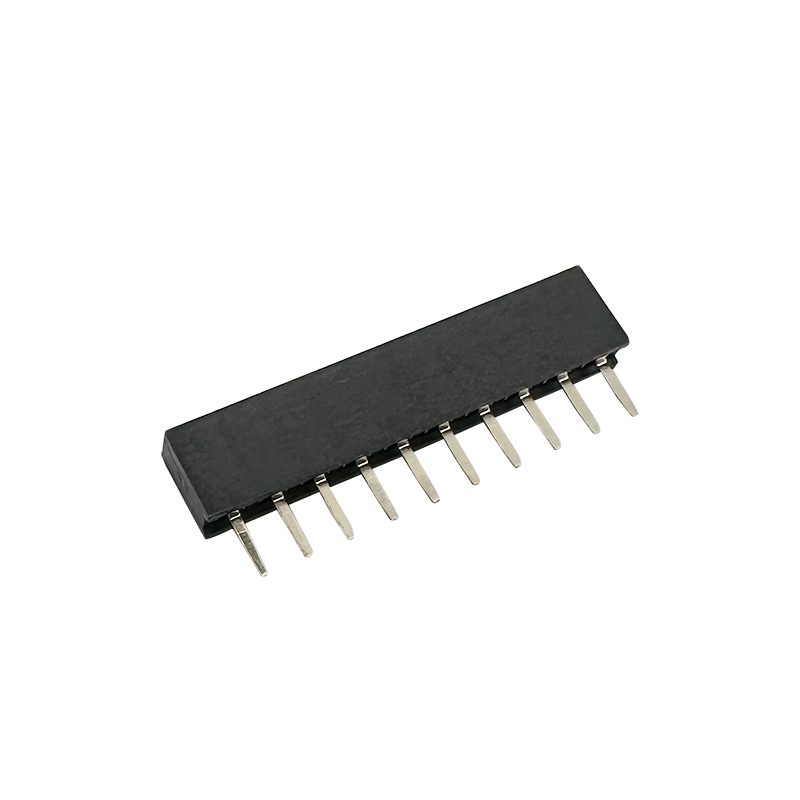

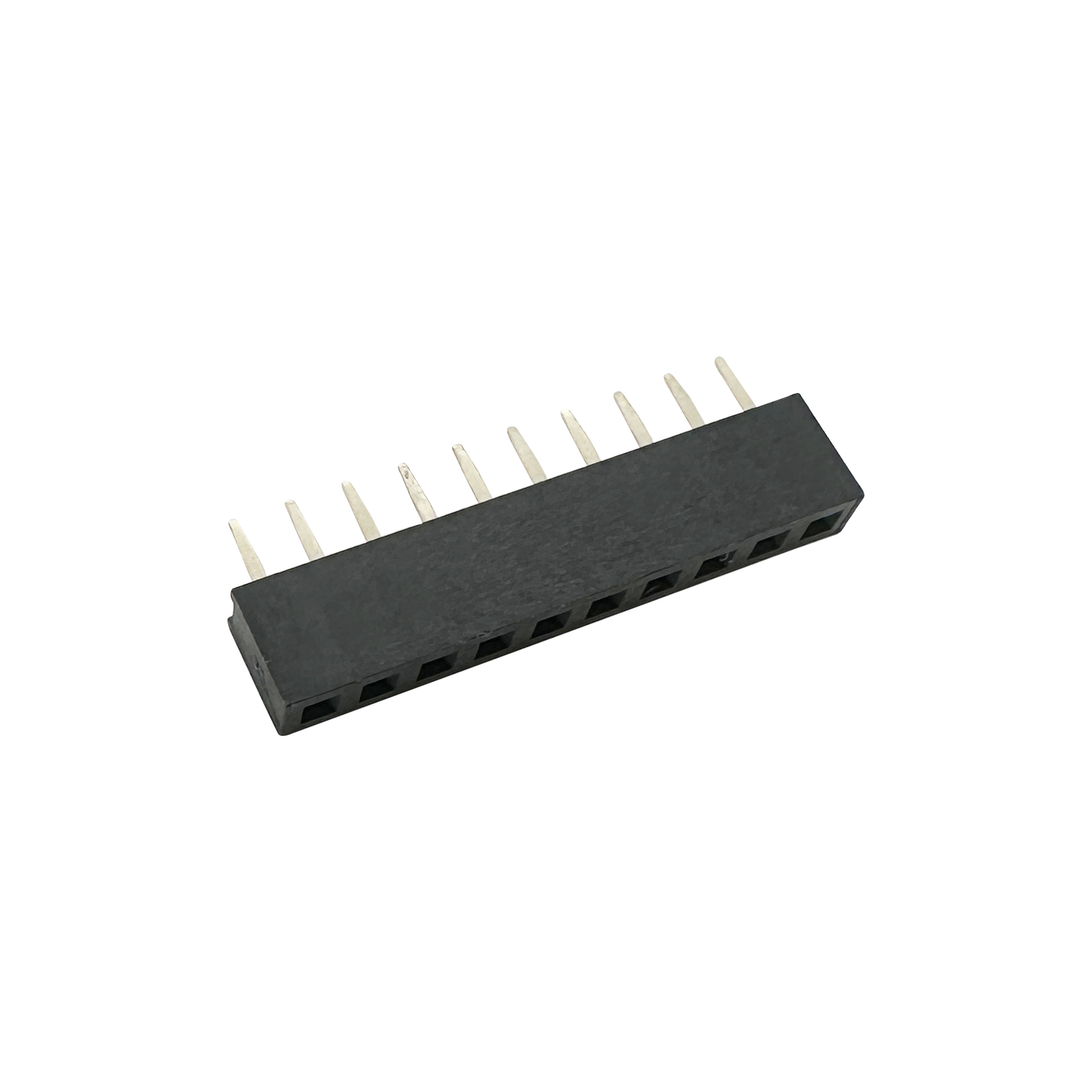

-Connector Type:
It is a female header connector, meaning it has receptacles or sockets that
accept male pins or headers. This configuration allows for easy mating and
unmating of connections, making it suitable for board-to-board or board-to-wire
applications.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
