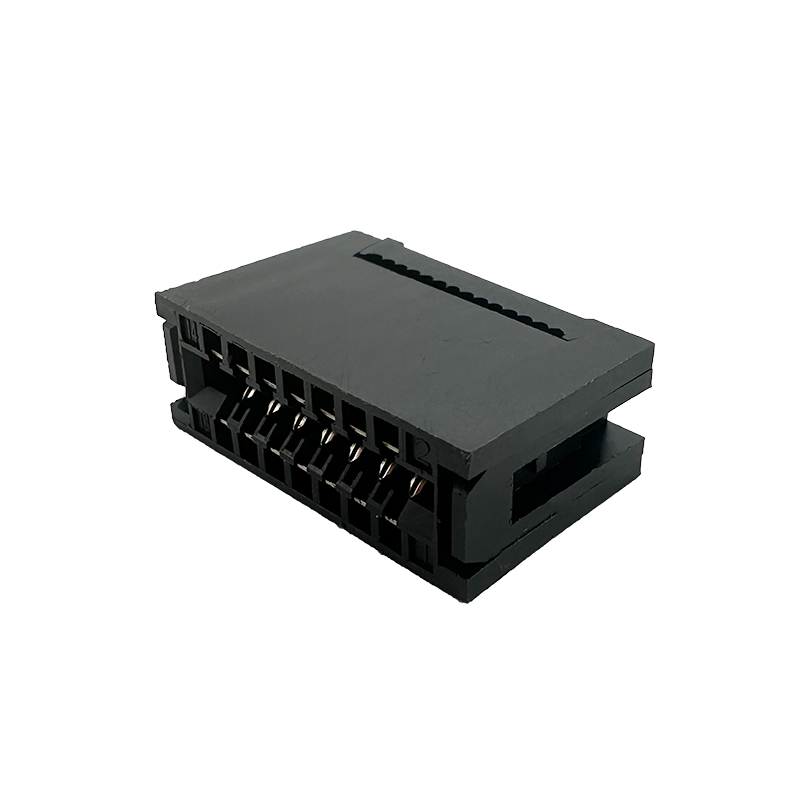

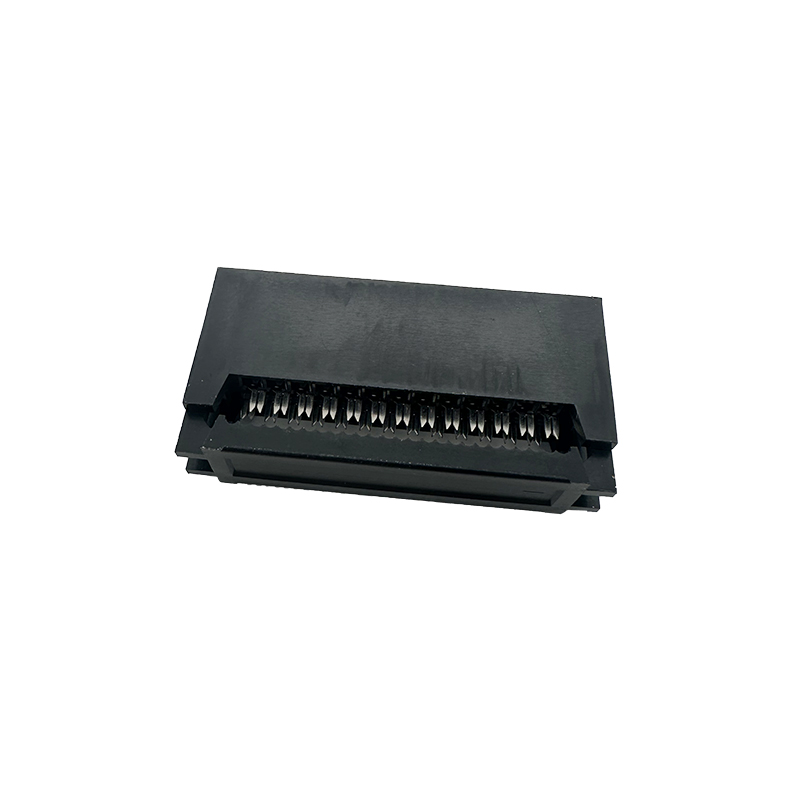

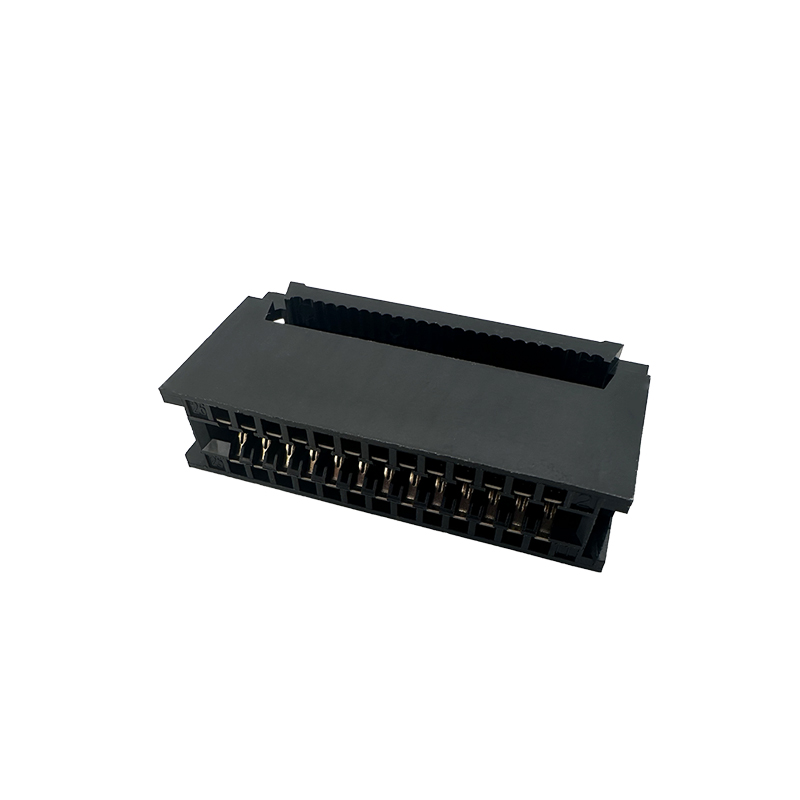

Product parameter:
Material:
Housing: 30% Glass
filled PBT UL94V-0
Contacts: Phosphor
Bronze
Plating:Au or Sn
over 50u" nickel
Electrical
Characteristics:
Current Rating:
3.0 AMP
Insulator Resistance:
1000M Ohm min.
Withstand Voltage:
500V AC / Minute
Contact
Resistance: 20m Ohm max.
Operating
Temperature: -40ºC~+105ºC
Applications
1. Medical Devices
and Instrumentation
2. Test and
Measurement Instruments
3. Industrial
Control Systems
4. Automotive
Electronics
Features
-Housing Material:
The connector housing is typically made from durable thermoplastics such as PBT
(Polybutylene Terephthalate) or Nylon. These materials provide mechanical
strength and resistance to heat, chemicals, and environmental factors.
-Polarization and
Keying: Some EDGE card IDC connectors may feature polarization features or
keying options to ensure proper alignment during mating. This prevents
incorrect connections that could damage components or affect performance.
-Current Rating
and Voltage: Rated for specific current carrying capacities and voltage levels,
ensuring compatibility with the electrical requirements of various
applications.
-Environmental
Resilience: Built to operate reliably in various environmental conditions,
including temperature fluctuations, vibration, and mechanical stress.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
