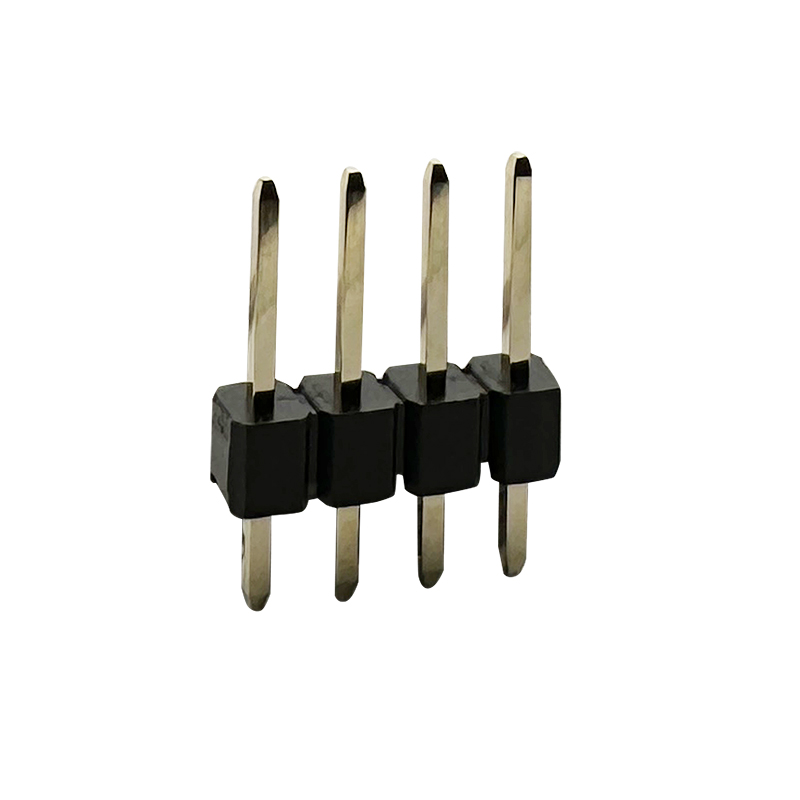

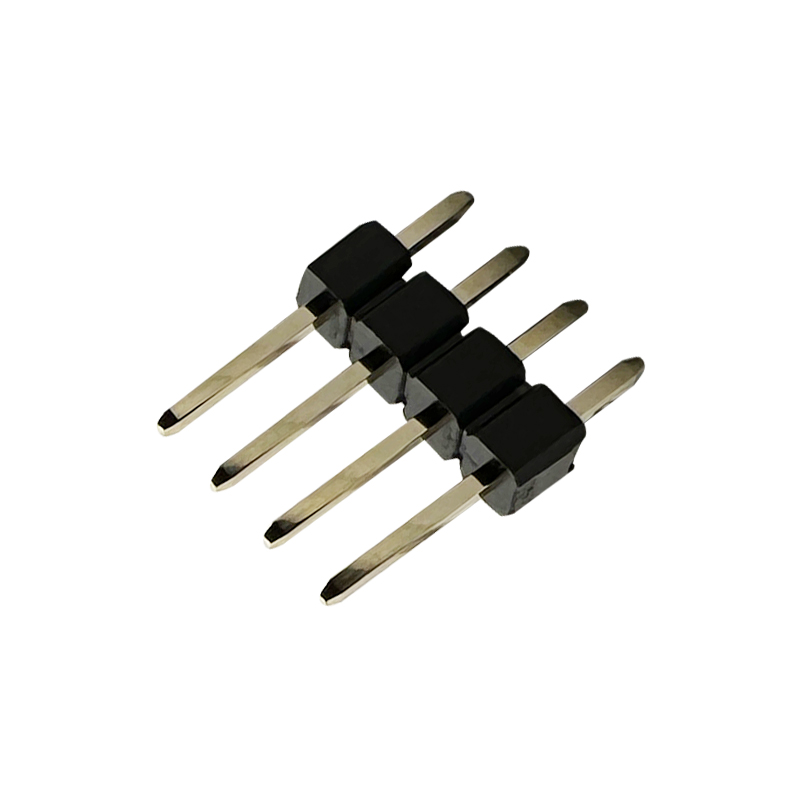

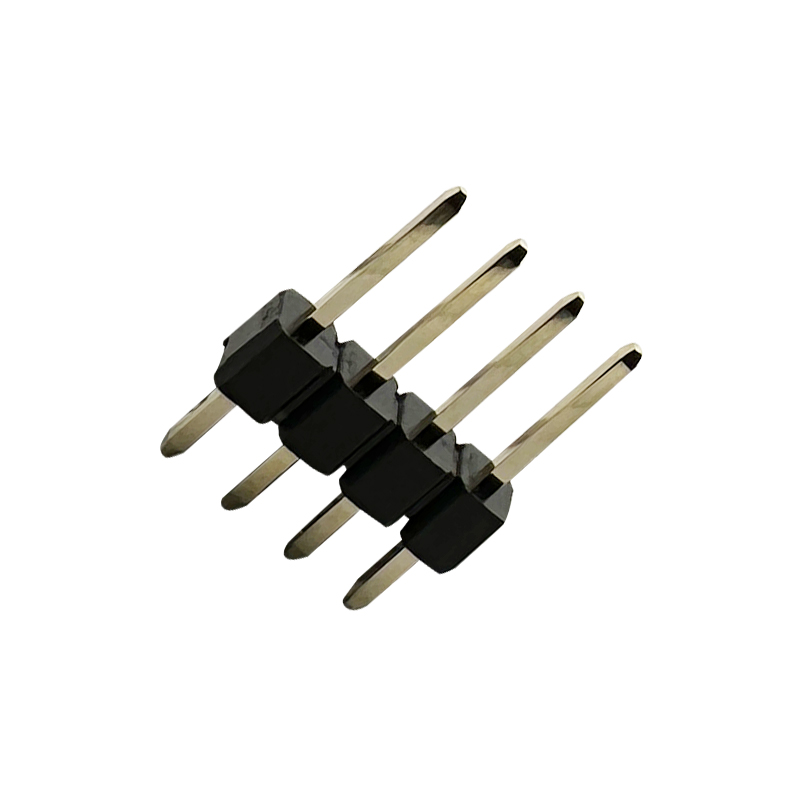

1.0mm Pitch Male Pin Header Connector:ERYAY07G

1.0mm Pitch Male Pin Header Connector:ERYAY07G

Brand ERYCO

Product origin CHINA

1.0mm Pitch Male Pin Header Connector Plastic Height: 1.0mm , 1.5mm

Order Information

ERYAY07G-1.00-1-XX-S-L1*L2*L3-G0

Plastics Height:1.00、1.50mm

1-Single layer 2-Double layer

XX-Total pin number (No.of 2~100pin)

S-Straight Pin R-Right Angle Pin T-SMT Pin

Size: L1*L2*L3

Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold

2D(PDF)Drawing

Product parameter:

Material:

Housing: PA6T UL94V-0

Contacts: Brass

Plating: Gold plated: 0.8u" over 50u" nickel

Electrical Characteristics:

Current Rating: 0.75 AMP

Insulator Resistance: 1000M Ohm min.

Contact Resistance: 30m Ohm max.

Operating Temperature: -45ºC~+105ºC

Applications

1. Development Boards and Prototyping

2. Industrial Automation

3. Computing Devices

4. Telecommunications

Features

-Materials: Typically made from materials like phosphor bronze for the pins and plastic for the housing, ensuring good electrical conductivity and mechanical strength.

-Plating: Pins are often gold-plated or tin-plated to prevent corrosion, improve conductivity, and ensure long-term reliability.

-Polarization: Some models may feature polarization keys or asymmetrical shapes to prevent incorrect insertion.

-Durability: Designed to withstand multiple insertion and extraction cycles without compromising electrical performance.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
