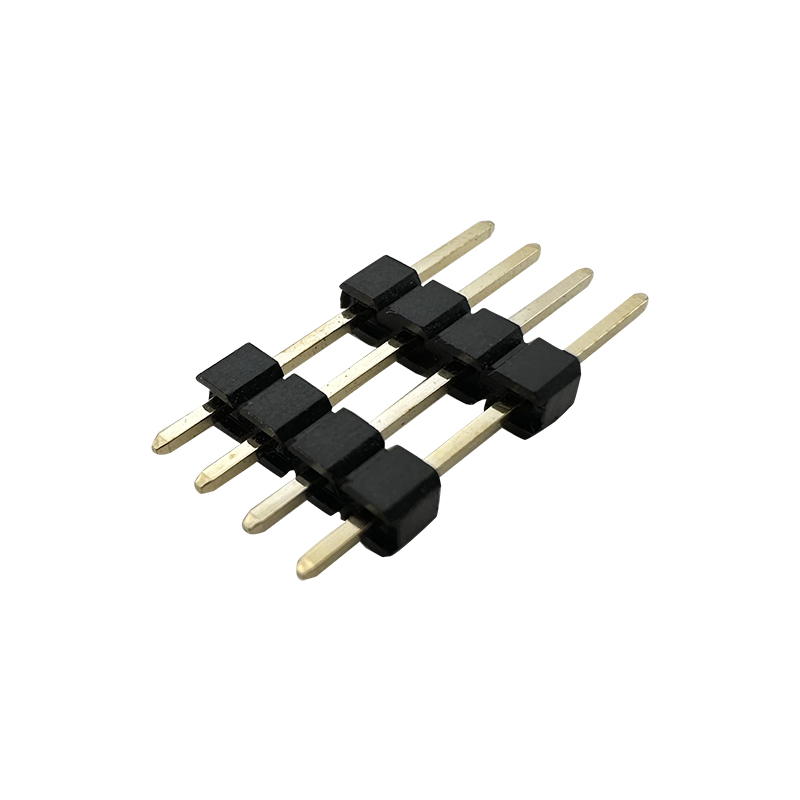

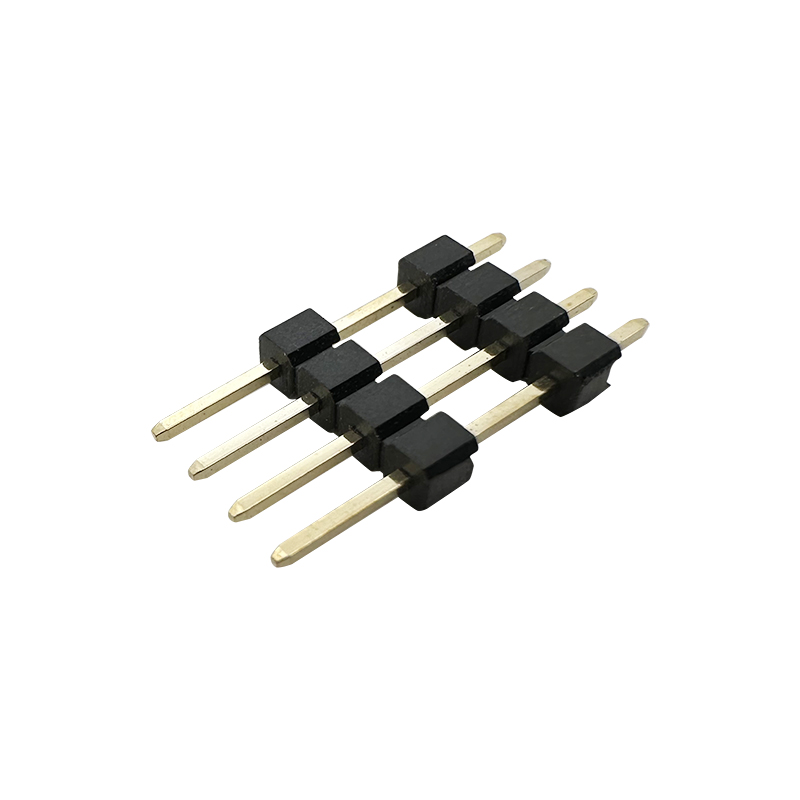

1.27mm Pitch Pin Header Connector With Dual Insulator Plastic Type

Order Information

ERYAY18C-1.50-1-XX-S-L1*L2*L3 -G0

Plastics Height:2.00mm、1.50mm

1-Single layer 2-Double layer

XX-Total pin number (No.of 2~100pin)

S-Straight Pin R-Right Angle Pin T-SMT Pin

Size: L1*L2*L3

Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold

2D(PDF)Drawing

Product parameter:

Material:

Housing: PA6T , UL94V-0

Contacts: Brass

Plating: Selective gold plated: 0.8u" over 50u" nickel

Electrical Characteristics:

Current Rating: 1 AMP

Insulator Resistance: 5000M Ohm min. at DC 500V

Contact Resistance: 20m Ohm max. at DC 100mA

Operating Temperature: -45ºC~+105ºC

Applications

1. Aerospace and Defense

2. LED Lighting Systems

3. oT (Internet of Things) Devices

4. Embedded Systems

Features

-Current Rating:Rated for low to moderate current levels, typically ranging from 1A to 3A per pin, depending on the specific design and application.

-Operating Temperature Range:Designed to operate within a broad temperature range, typically from -40°C to +105°C, making them suitable for various environmental conditions.

-Mating Cycles:Designed to withstand multiple mating and unmating cycles, ensuring durability and long-term reliability.

-Keying and Polarization:Some connectors may include features that ensure proper orientation and mating, preventing misalignment and ensuring secure connections.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
