Product parameter:
Material:
Housing: PA6T
UL94V-0
Contacts: Brass
Plating: Gold
plated: 0.8u" over 50u" nickel
Electrical
Characteristics:
Current Rating:
1.5 AMP
Insulator
Resistance: 1000M Ohm min.
Contact
Resistance: 20m Ohm max.
Withstanding
Voltage:AC 500V/Minute
Operating
Temperature: -45ºC~+105ºC
Applications
1. Industrial
Applications:
2. Automotive
Electronics:
3. Medical
Devices:
4. Aerospace and
Defense:

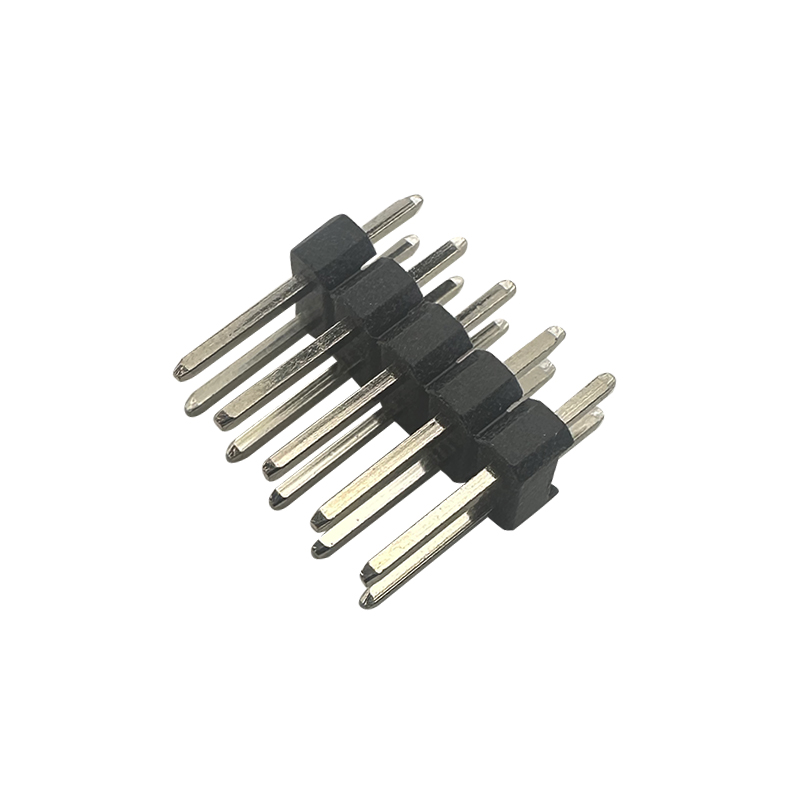

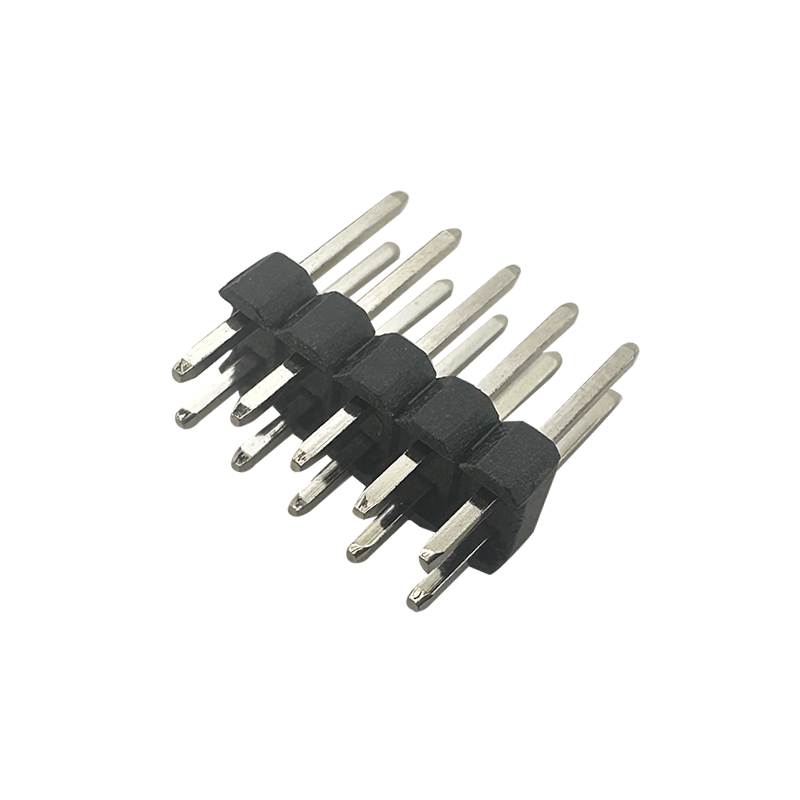

Features
-Number of Pins:
These connectors are available in various configurations with different numbers
of pins, ranging from single-row headers with a few pins to dual-row headers
with many pins. The number of pins depends on the specific application requirements
for signal, power, or data transmission.
-Material and
Construction: Male pin header connectors are typically constructed from
materials such as brass or phosphor bronze for the pins, and plastic or
high-temperature thermoplastics for the housing. This construction provides
mechanical strength and durability while ensuring reliable electrical contact.
-Mounting Style:
They are designed for through-hole mounting on PCBs, where the pins are
soldered into plated through-holes on the PCB for secure attachment and
electrical connection.
-Plating Options:
Pins may be plated with materials such as gold, tin, or silver to enhance
conductivity, prevent oxidation, and improve durability over multiple mating
cycles.
Dimensions(Please refer to the attached
2D drawings for detailed specifications.):
