Product parameter:
Material:
Housing: PA6T
UL94V-0
Contacts: Brass
Plating: Gold
plated: 0.8u" over 50u" nickel
Electrical
Characteristics:
Current Rating: 3
AMP
Insulator
Resistance: 1000M Ohm min.
Contact
Resistance: 20m Ohm max.
Withstanding
Voltage:AC 500V/Minute
Operating
Temperature: -45ºC~+105ºC
Applications
1. Embedded
Systems
2. Telecommunications
and Networking
3. Test and
Measurement Equipment
4. DIY Electronics
Projects
Features
-Pitch: 2.54mm
(0.1 inches), which defines the distance between each pin center. This standard
pitch ensures compatibility with a wide range of prototyping boards,
breadboards, and PCBs designed for 0.1-inch grid spacing.
-Height: 4.3mm
refers to the overall vertical dimension of the connector when mounted on a
PCB. This height specification is crucial for determining clearance and space
considerations in electronic designs.
-Number of Pins:
Available in various configurations, ranging from single-row headers with a few
pins to multi-row headers with numerous pins. The number of pins depends on the
specific application requirements, accommodating different levels of
connectivity.

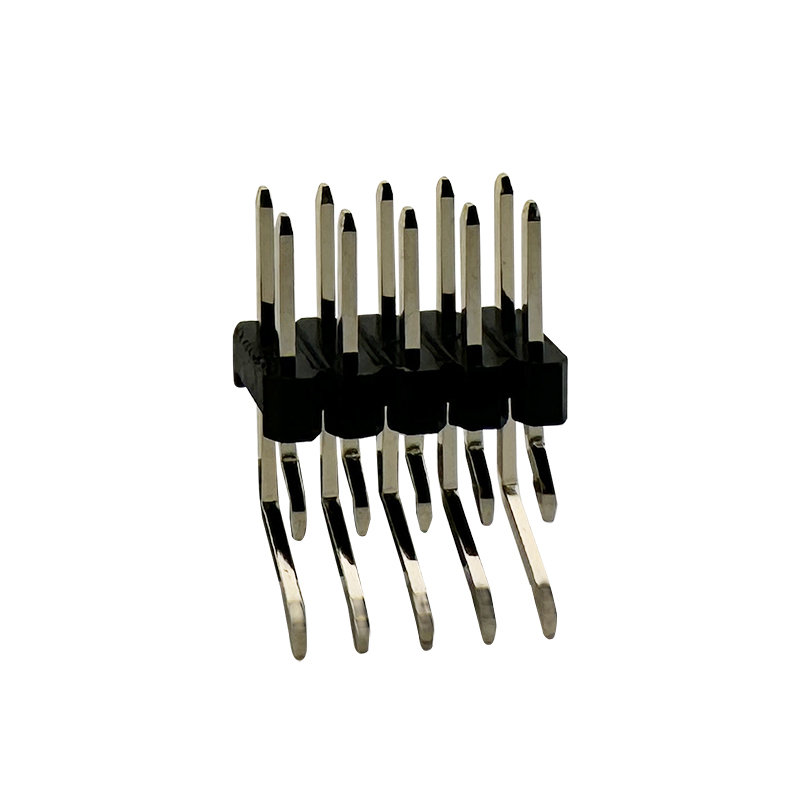

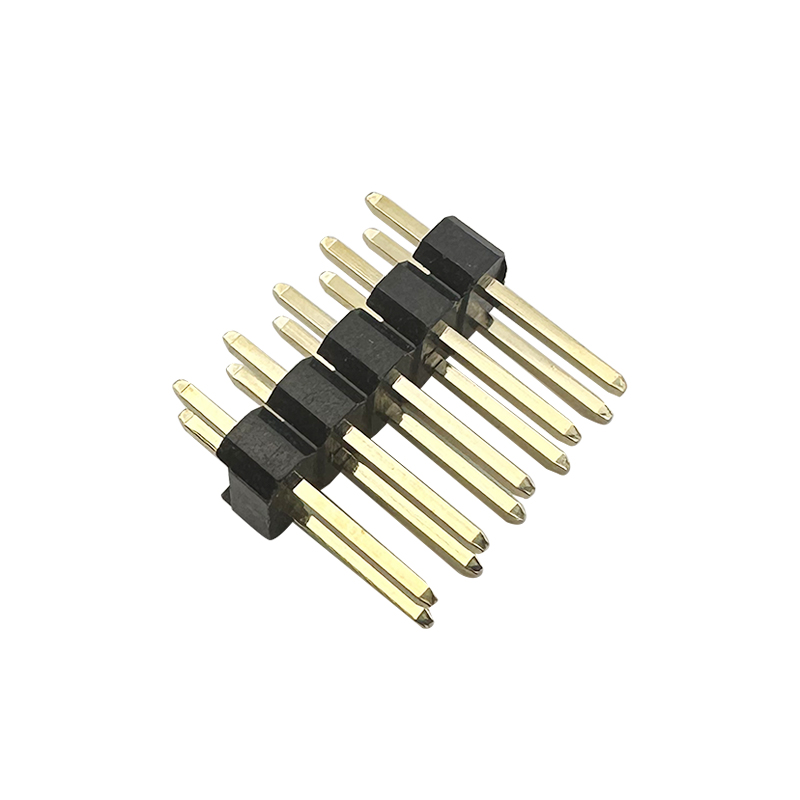

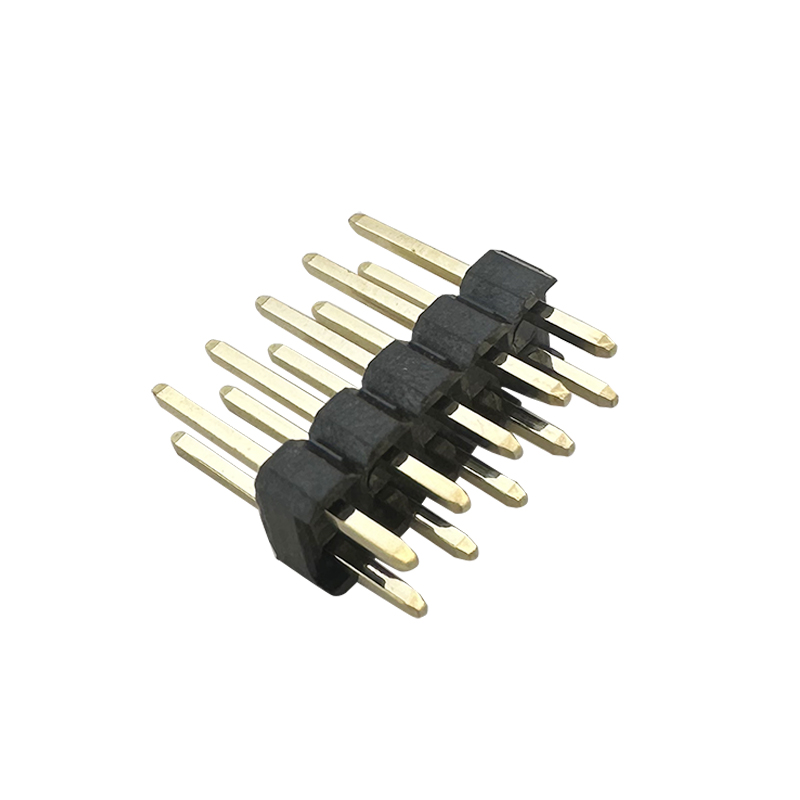

-Connector Type:
Male pin headers consist of rows of pins that extend from a plastic housing.
These pins are designed to mate with corresponding female headers, sockets, or
other components, providing a reliable electrical connection.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
