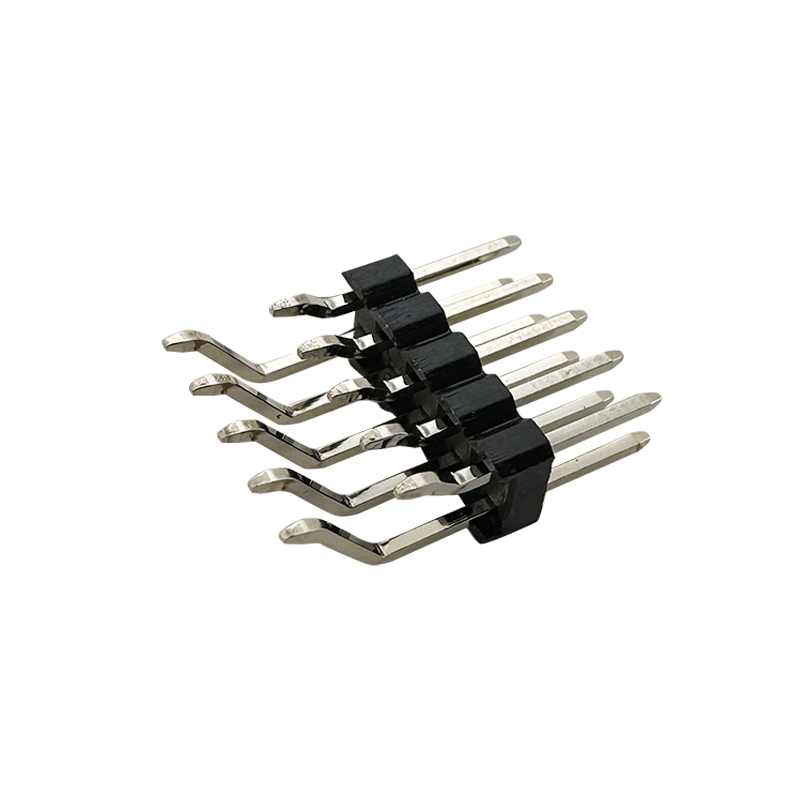

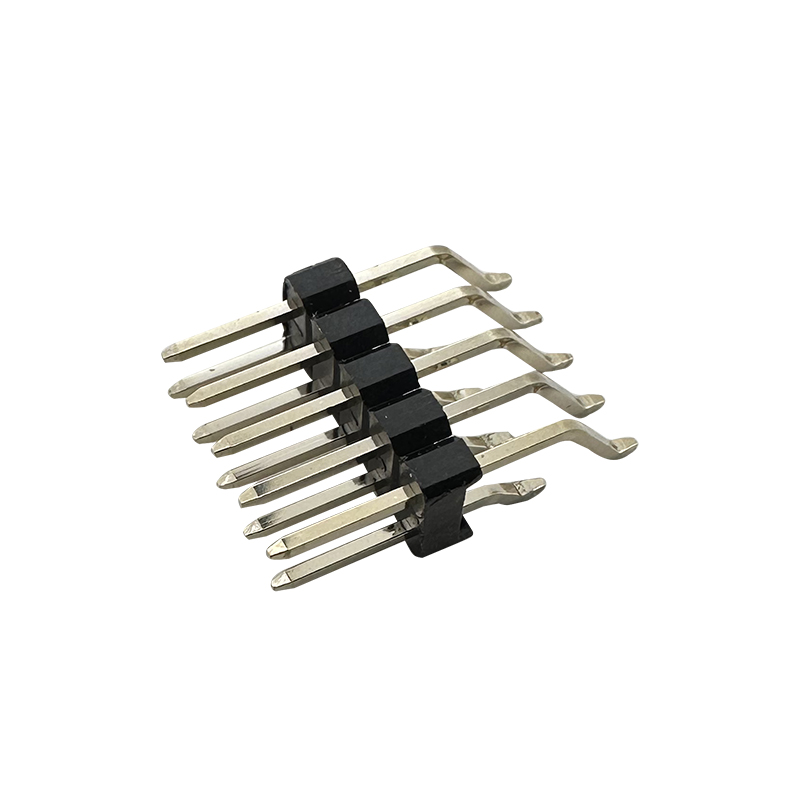

2.0mm Pitch Pin Header Connector SMD

Order Information

ERYAY07BA-2.00-1-XX-PA*PC*PB-G0-W-R

Plastics Height:1.50mm、2.00mm

1-Single layer 2-Double layer

XX-Total pin number (No.of 2~80pin)

SIZE:PA*PC*PB

Plating:G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold

N=W/O post W=with post

Packing: 0=PE Bag A=Tray T=Tube P=Tube+Cap R=Reel+Cap

2D(PDF)Drawing

Product parameter:

Material:

Housing: PA6T UL94V-0

Contacts: Brass

Plating: Gold plated: 0.8u" over 50u" nickel

Electrical Characteristics:

Current Rating: 1.5 AMP

Insulator Resistance: 1000M Ohm min.

Contact Resistance: 20m Ohm max.

Withstanding Voltage:AC 500V/Minute

Operating Temperature: -45ºC~+105ºC

Applications

1.Industrial IoT (IIoT) Devices:

2.LED Lighting Systems:

3.Security and Surveillance Systems:

4.Aerospace and Defense

Features

-SMD Compatibility: Designed for surface mount assembly directly onto PCBs, eliminating the need for through-holes. This reduces assembly time and facilitates automated soldering processes.

-Materials: Contacts are typically made from phosphor bronze for good electrical conductivity and mechanical strength.

-Electrical Performance: Capable of handling moderate currents depending on the specific model and configuration, ensuring safe operation under typical electronic loads.

-Keying: Designed with polarization features such as keying tabs or slots to prevent incorrect insertion and ensure proper orientation of the connector. This helps prevent damage to the connector and the circuit.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
