Brand ERYCO
Product origin CHINA

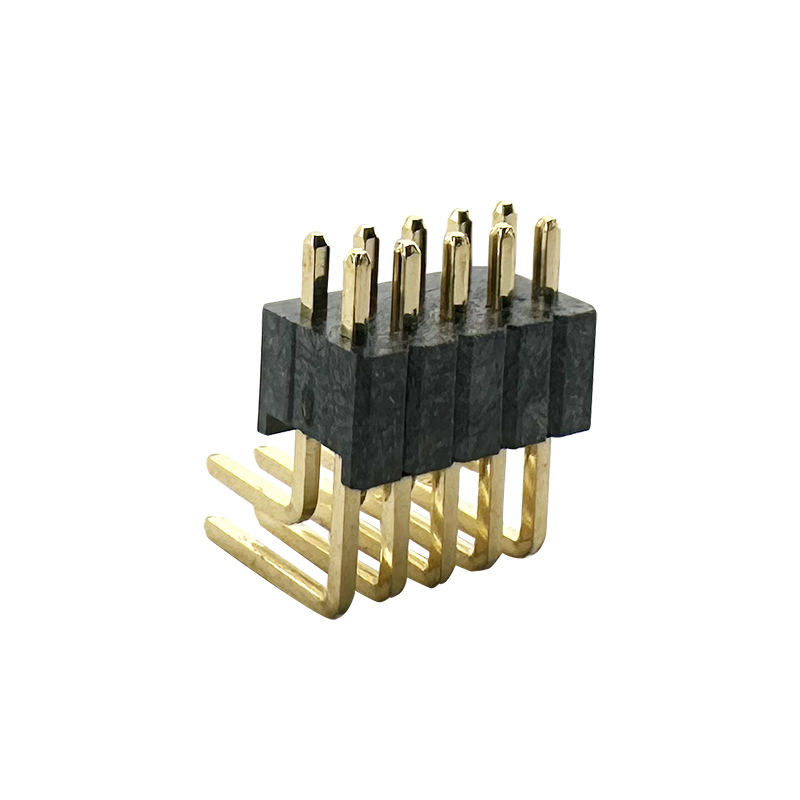

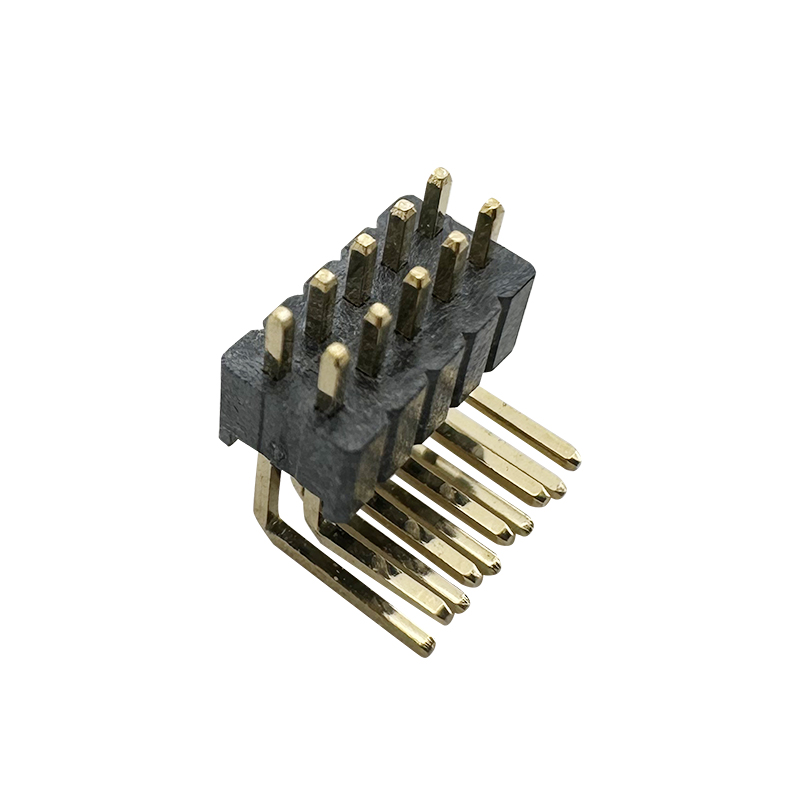

1.27x2.54mm Pitch Pin Header Connector
Order Information
ERYAY07D-2-XX-S-L1*L2*L3-G0
2-Double layer
XX-Total pin number (No.of 2~100pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
Product parameter:
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
Applications
1.Automotive Electronics
2.Medical Devices
3.Industrial Automation
4.Telecommunications Equipment
Features
-Pin Material:Pins are usually made from brass or phosphor bronze, offering good electrical conductivity and mechanical strength. Some connectors may have gold-plated pins to improve conductivity, corrosion resistance, and solderability.
-Insulator Material:The insulator body is typically made from high-temperature resistant plastic materials such as PBT (polybutylene terephthalate) or Nylon. These materials provide mechanical stability and electrical insulation properties.
-Mounting Options:Designed for through-hole mounting on PCBs, ensuring secure attachment and reliable electrical connections. Some variants may also support surface-mount technology (SMT) for applications requiring compact and automated assembly.
-Current Rating:Rated to handle different current ratings depending on the pin size and design. Commonly used for low to moderate current applications in consumer electronics, industrial controls, and other electronic devices.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.)
