Product parameter:
Material:
Housing:
PBT/PA46/PA9T UL94V-0
Contacts: Phosphor
bronze
Plating:Sn over
50u" nickel
Electrical
Characteristics:
Current Rating:
1.0 AMP
Voltage Rating:
230V AC/DC
Withstand
voltage:500V AC/Minute
Contact
Resistance: 20m Ohm max.
Insulator
Resistance: 1000M Ohm min.
Operating
Temperature: -40ºC~+105ºC
Applications
1.Telecommunication
Devices
2.Medical and
Laboratory Equipment
3.Automotive
Electronics
4.Aviation and
Aerospace Applications
Features
-Connector Type:

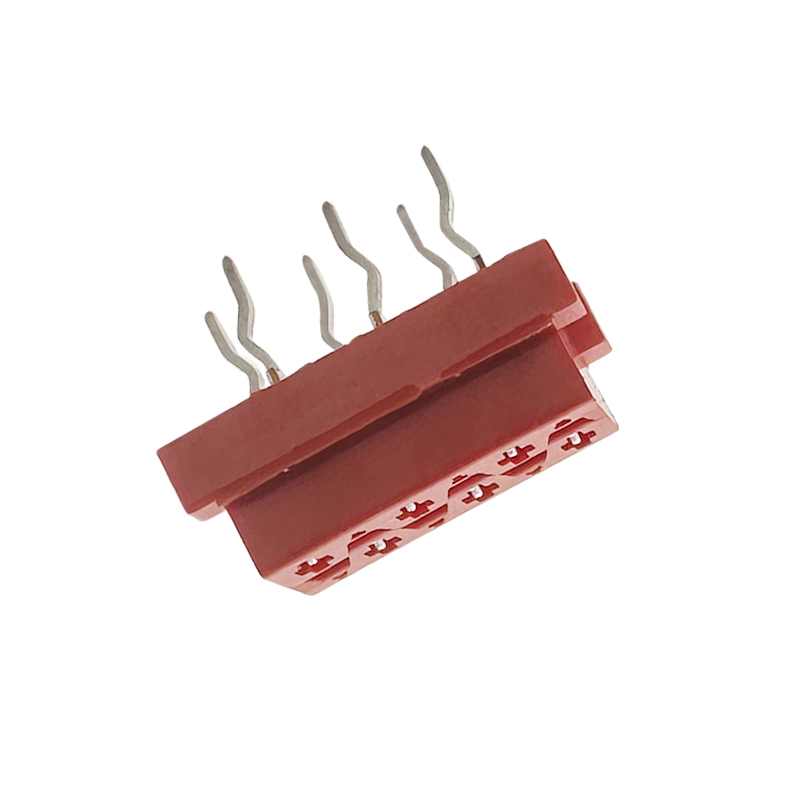

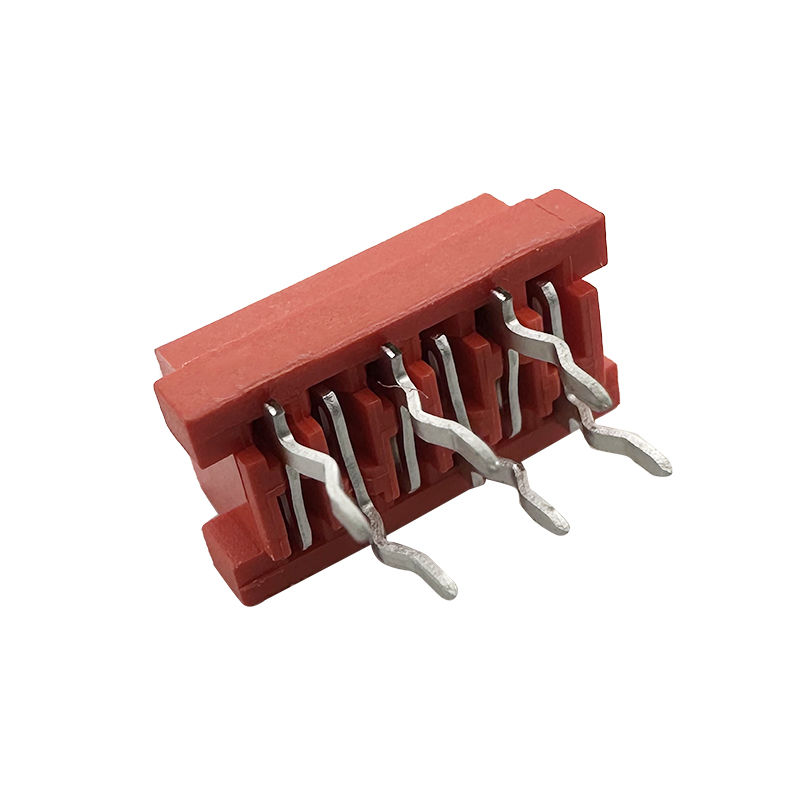

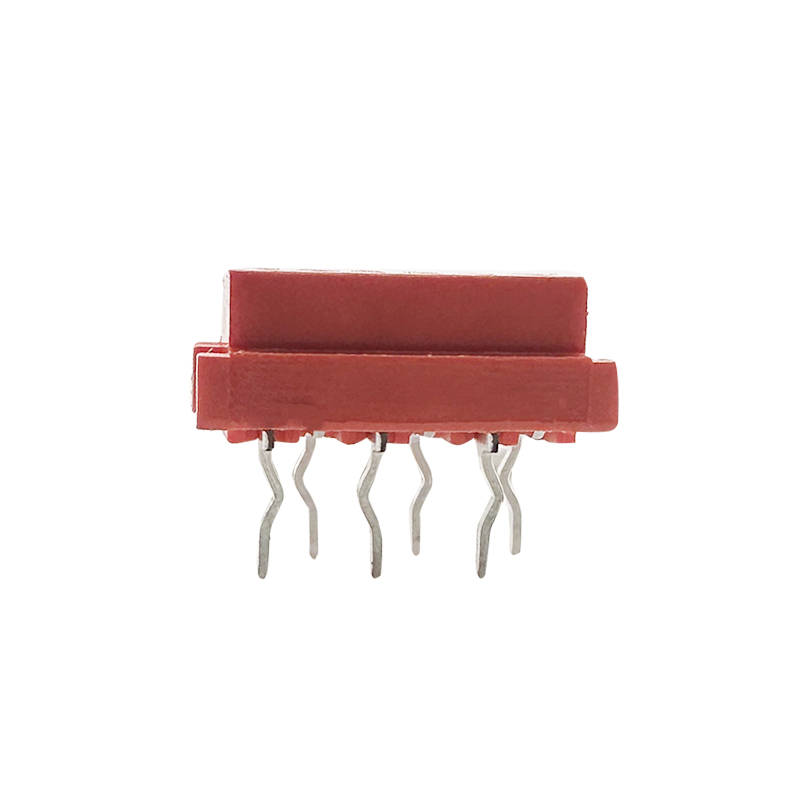

Micro-Match Connector Female DIP 180 with ears.
-Design: Compact
and space-saving design with additional mounting ears, enhancing stability and
secure attachment to the PCB (Printed Circuit Board).
-Termination Type:
DIP (Dual In-line Package) configuration, designed for through-hole mounting on
PCBs.
-Pitch: Typically
available in a pitch of 1.27 mm (0.05 inches), though other pitches may be
available depending on the specific model.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
