Brand ERYCO
Product origin CHINA

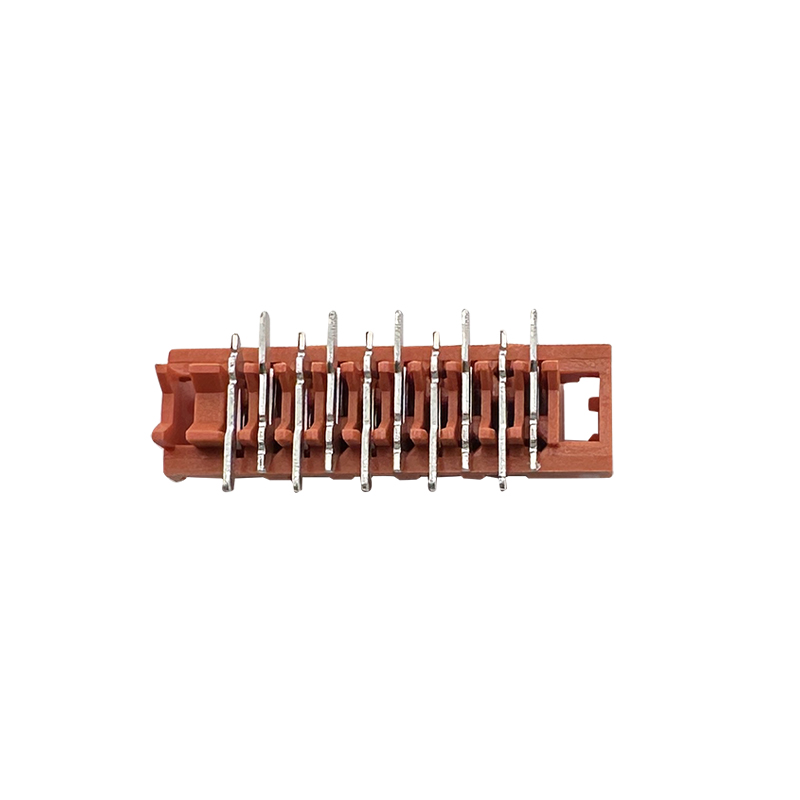

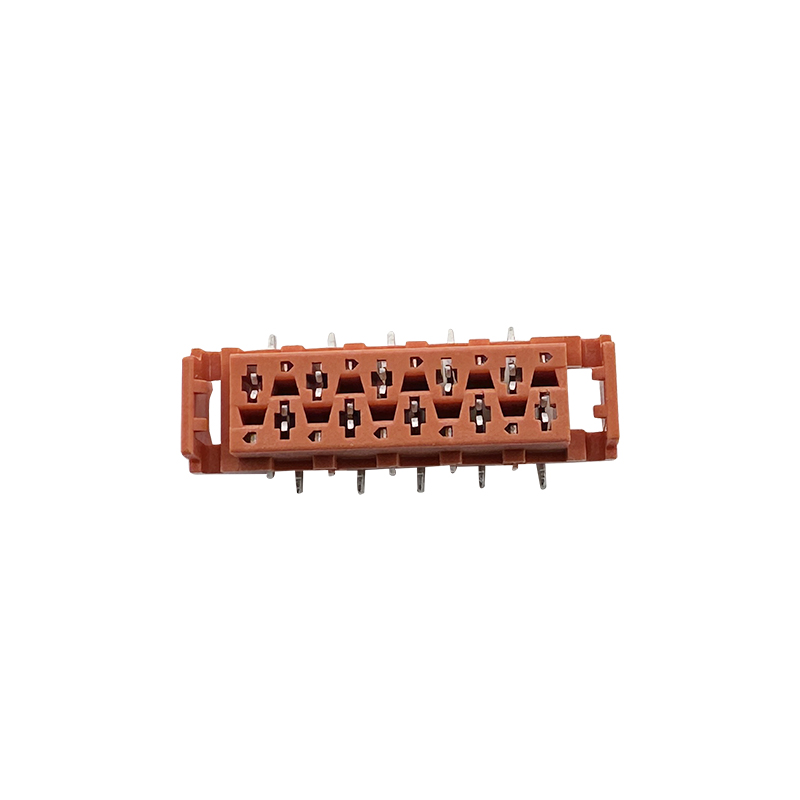

Micro Match Connector Female SMT With Ear
Order Information:
ERYAY04GE-XX-R-口-C-R
XX-No.of 04~26pin
Color: R=Red B=Black
Material:NONE=PA9T E=PA46
Packing: TC=Cap+Tube C-R=Cap+Reel
Product parameter:
Material:
Housing: PA46/PA9T UL94V-0
Contacts: Phosphor bronze
Plating:Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 230V AC/DC
Withstand voltage:500V AC/Minute
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Operating Temperature: -40ºC~+105ºC
Applications
1.Consumer Electronics
2.Networking Equipment
3.Automotive Electronics
4.Industrial Equipment
Features
-Connector Type: Micro-Match Connector Female SMT with ear.
-Design: Compact and low-profile design suitable for surface-mounting directly onto PCBs, with additional mounting ears on each side for enhanced mechanical stability.
-Termination Type: Surface-Mount Technology (SMT), allowing for direct placement and soldering onto PCB pads without the need for through-holes.
-Pitch: Typically available in a pitch of 1.27 mm (0.05 inches), though other pitches may be available depending on the specific model.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
