Brand ERYCO
Product origin CHINA

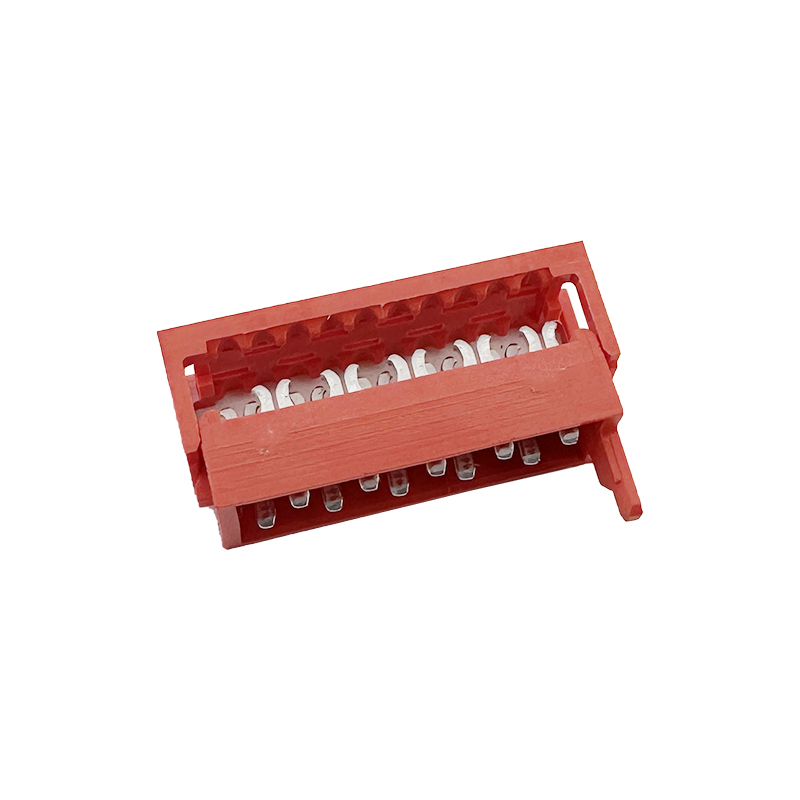

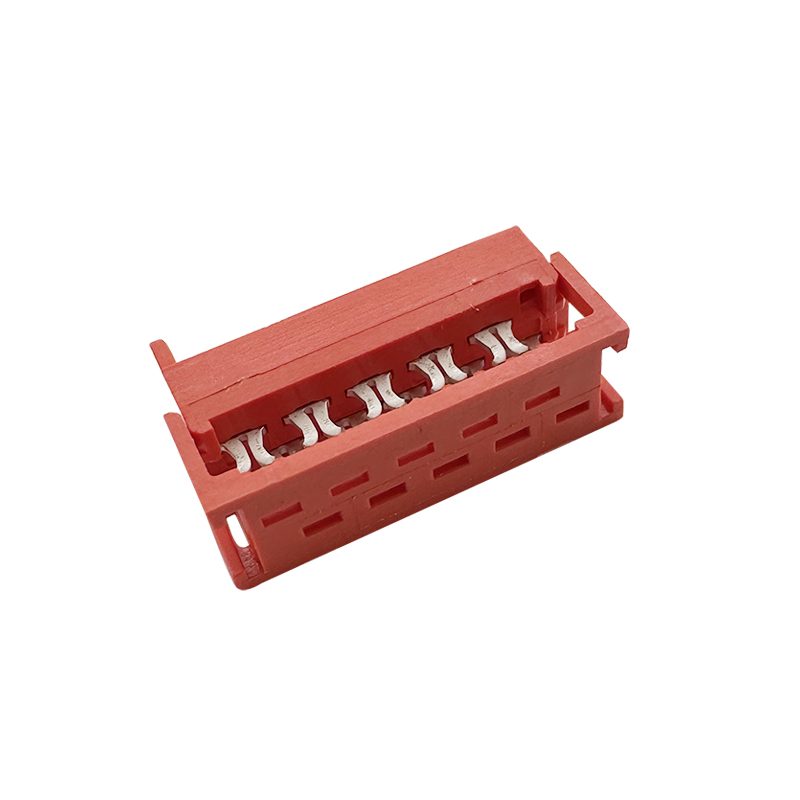

Micro-Match Connector,Plug,Male,IDC Type.
Order Information:
ERYAY04E-XX-R-口-口
XX-No.of 04~26pin
Color: R=Red B=Black
Material:NONE=PBT E=PA46
Product parameter:
Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating:Sn over 50u" nickel
Cable: 1.27mm (0.050") pitch flat cable
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC
Operating Temperature: -40ºC~+105ºC
Applications
1.Telecommunication Devices
2.Medical and Laboratory Equipment
3.Automotive Electronics
4.Aviation and Aerospace Applications
Features
-Connector Type: Micro-Match Connector with IDC (Insulation Displacement Contact) Type.
-Design: Compact and space-saving design, suitable for applications where board space is limited.
-Termination Type: IDC (Insulation Displacement Contact), which allows for direct connection to flat ribbon cables without the need for stripping insulation.
-Pitch: Typically available in a pitch of 1.27 mm (0.05 inches), though other pitches may also be available, depending on the specific model.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
