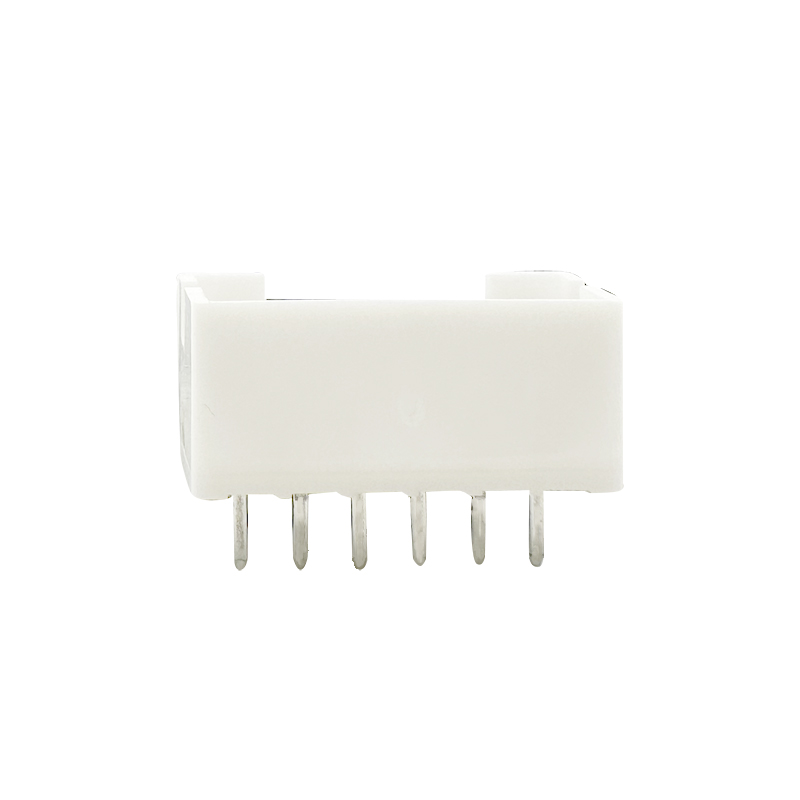

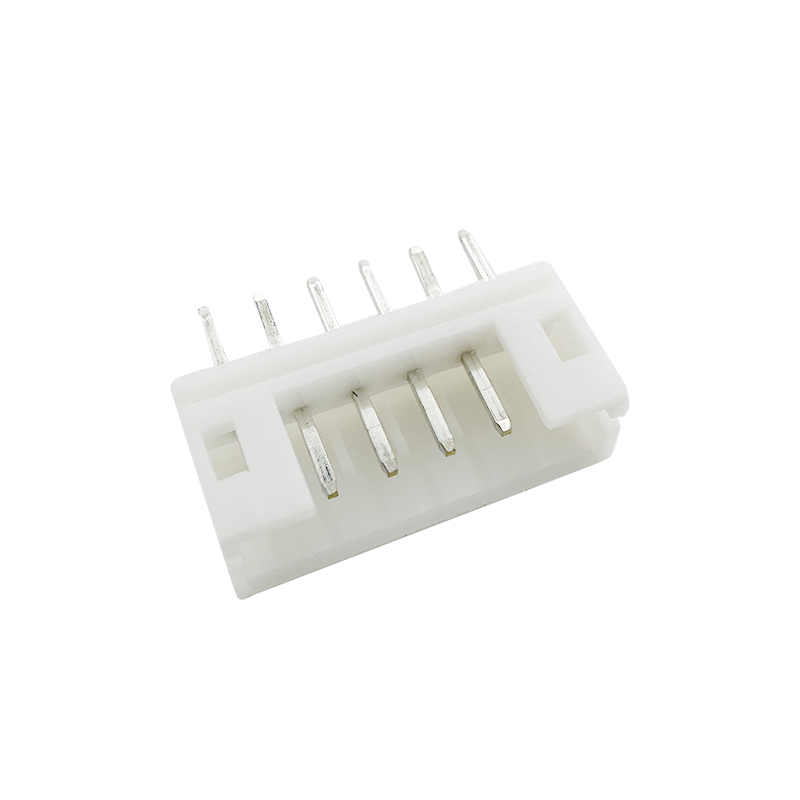

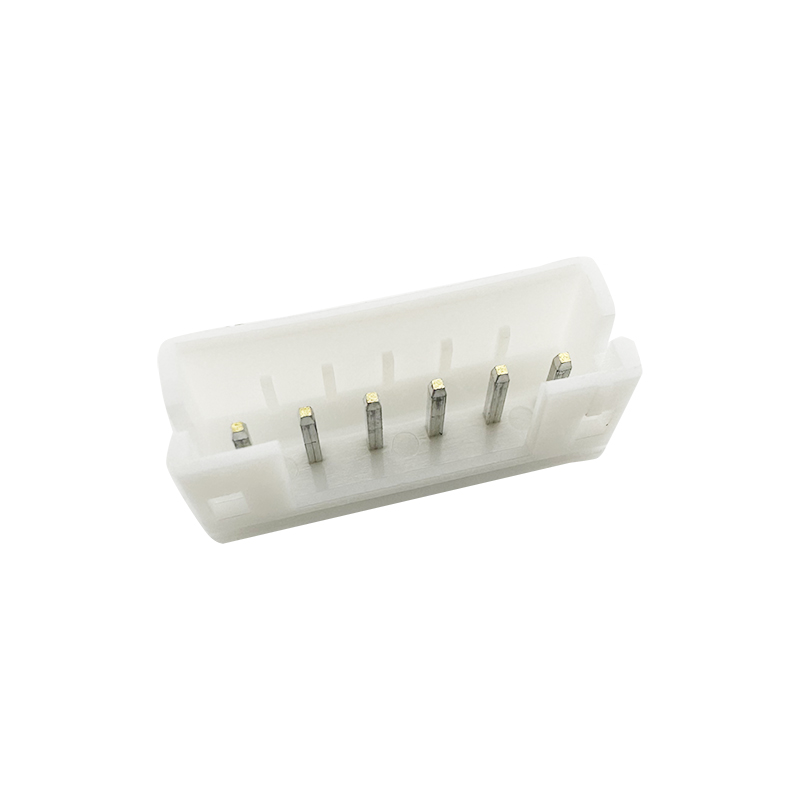

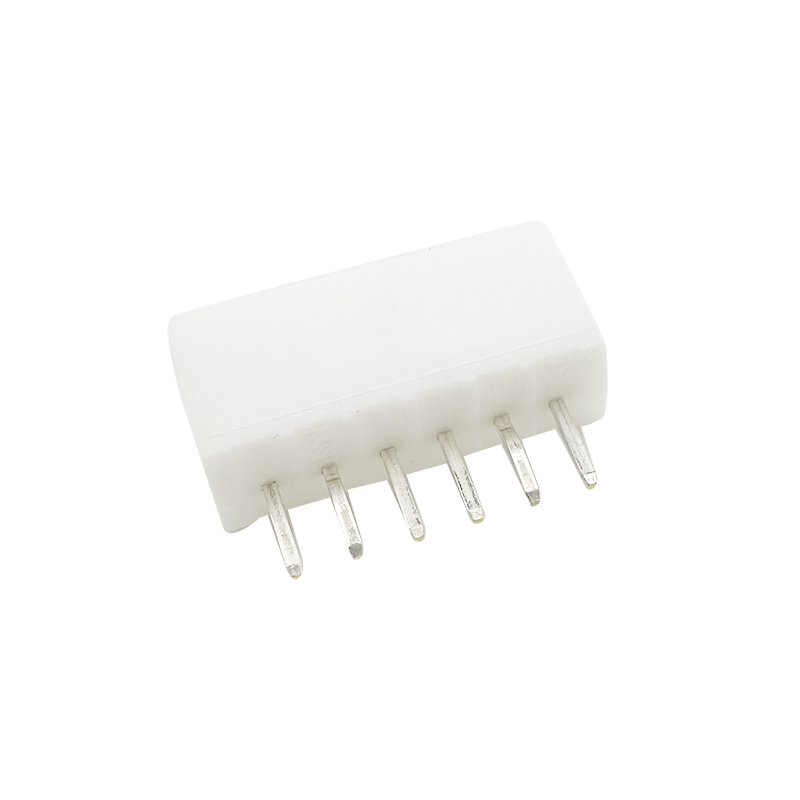

JST SPH-002T-P0.5S 2.00mm JST PH type Wire to Board Connector:ERYAYL1-2.00

JST SPH-002T-P0.5S 2.00mm JST PH type Wire to Board Connector:ERYAYL1-2.00

Brand ERYCO

Product origin CHINA

Electrical Specification:

Rated Voltage:125V AC.DC

Rated Current:2A

Contact Resistance: 0.02 Ohm max

Insulation Resistance: 1000M Ohm min

Withstand voltage: 800V AC/MIN

Temperature range for usage : -40ºC~+105ºC

P.C board thickness : 0.8~1.6mm

2D(PDF)Drawing

Product parameter:

Material:

Housing: PA66 UL94V-2

Contacts: Phosphor Bronze or Brass

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#32~#22

Applications

1.Industrial Equipment

2.Automotive Electronics

3.Medical Devices

4.Consumer Goods

Features

-Materials: Contacts are often made from phosphor bronze with tin or gold plating, providing good conductivity, durability, and resistance to corrosion.

-Keying: Designed with polarization features such as keying slots or tabs to prevent incorrect insertion and ensure proper orientation of the connector.

-Termination Options: Supports various wire termination methods including crimping, soldering, and IDC (Insulation Displacement Contact), offering flexibility in assembly processes.

-Operating Conditions: Typically rated for a wide range of operating temperatures (often between -25°C to +85°C or higher), ensuring reliable performance in various environmental conditions.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
