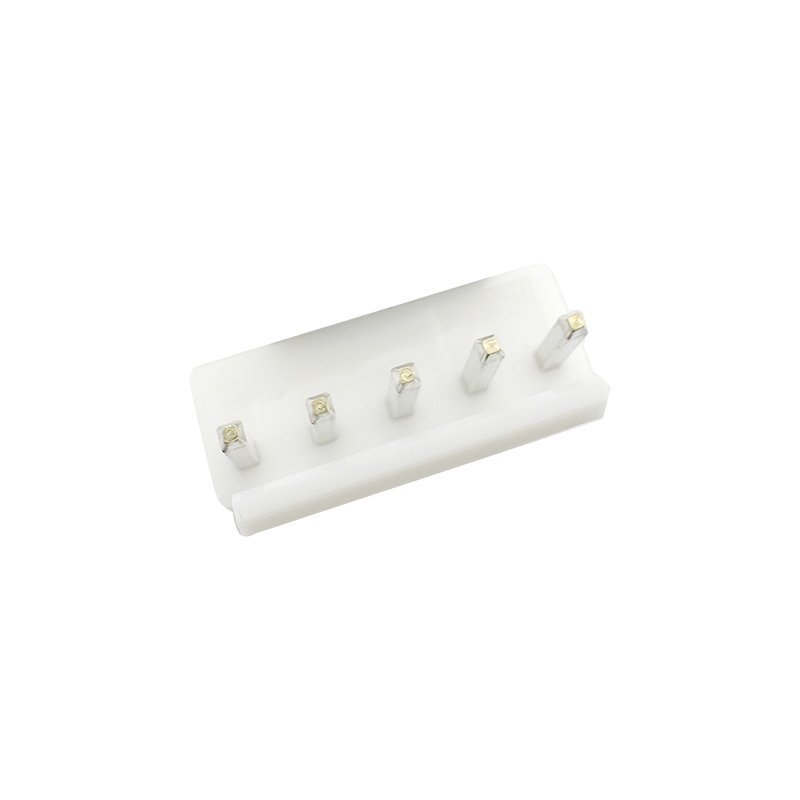

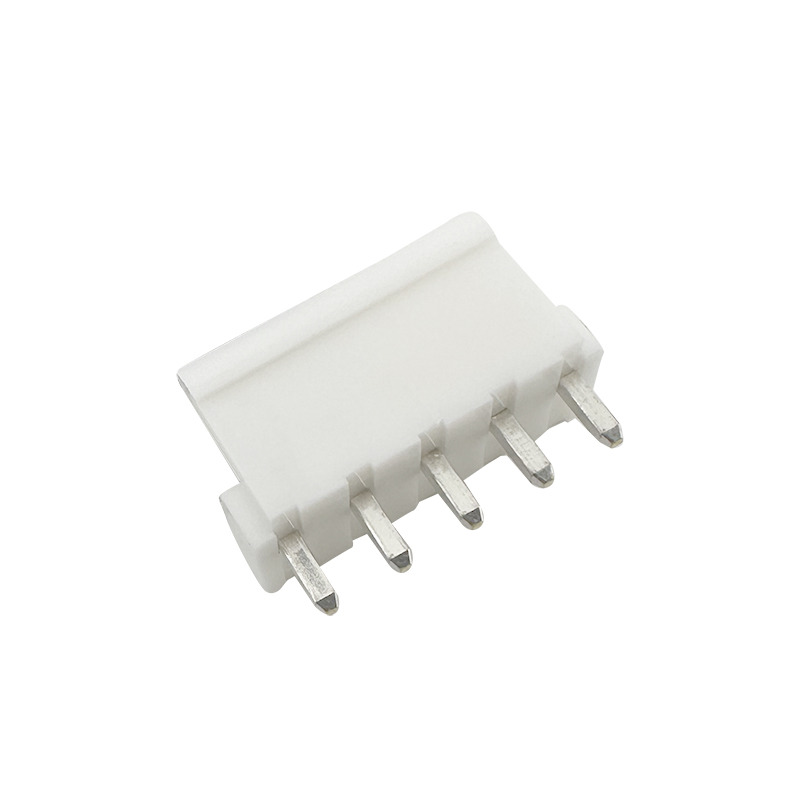

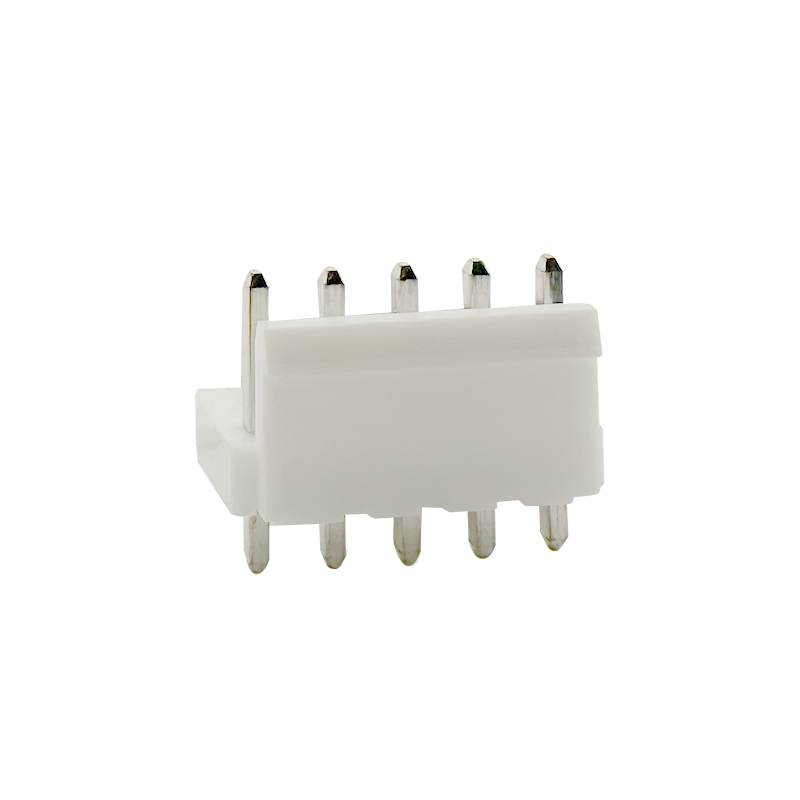

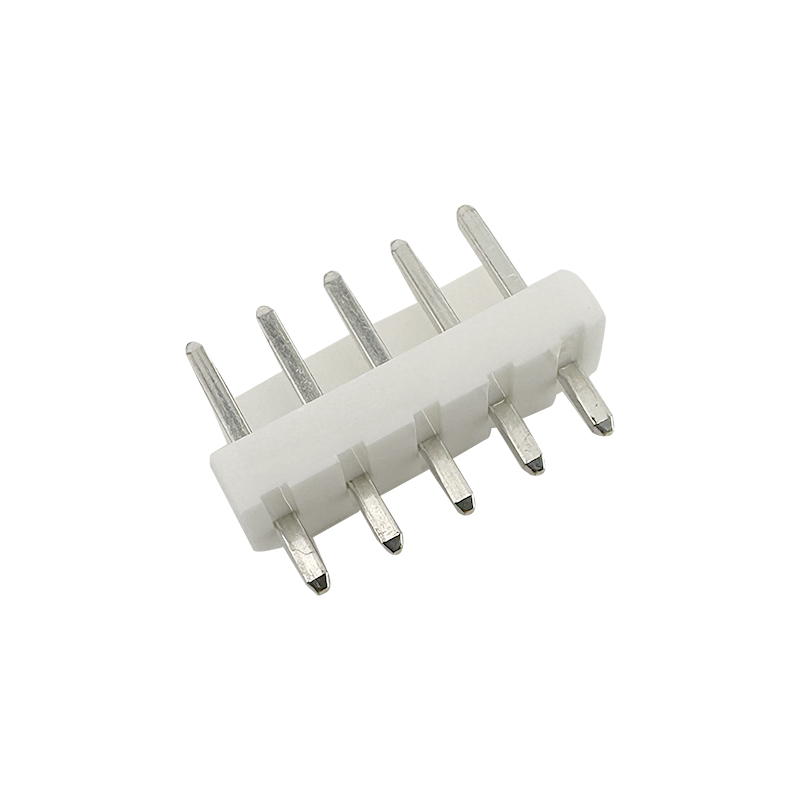

B6P-VH-B(LF)(SN) | JST 2.50mm AMP Type Wire To Board Connector :ERYAYA1-2.50

B6P-VH-B(LF)(SN) | JST 2.50mm AMP Type Wire To Board Connector :ERYAYA1-2.50

Brand ERYCO

Product origin CHINA

Electrical Specification:

Rated Voltage: 250V AC.DC

Rated Current: 3A

Contact Resistance: 0.02 Ohm max

Insulation Resistance: 1000M Ohm min

Withstand voltage: 1000V AC/MIN

Temperature range for usage: -40ºC~+105ºC

P.C board thickness: 0.8~1.6mm

2D(PDF)Drawing

Product parameter:

Material:

Housing: PA66 UL94V-2

Contacts: Phosphor Bronze or Brass

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#30~#22

Applications

1.Automotive Electronics

2.Industrial Equipment

3.Telecommunications Equipment

4.Medical Devices

Features

-Termination Style: Designed for crimp-style wire termination, where wires are crimped onto the connector's contacts. This method ensures a secure electrical connection and provides strain relief for the wires, minimizing the risk of wire pull-out.

-Current Rating and Voltage: The connector is designed to handle specific current ratings and voltage levels, depending on the application requirements and the configuration of the connector.

-Keying and Polarization: Includes features for keying and polarization to ensure proper alignment and prevent incorrect insertion of the connector into the PCB or housing. This helps in maintaining electrical integrity and prevents damage to components.

-Mounting Options: The AMP type wire-to-board connector can be mounted onto the PCB through through-hole soldering or surface-mount (SMT) techniques, depending on the specific model and design requirements. This flexibility in mounting options supports different assembly processes and requirements.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
