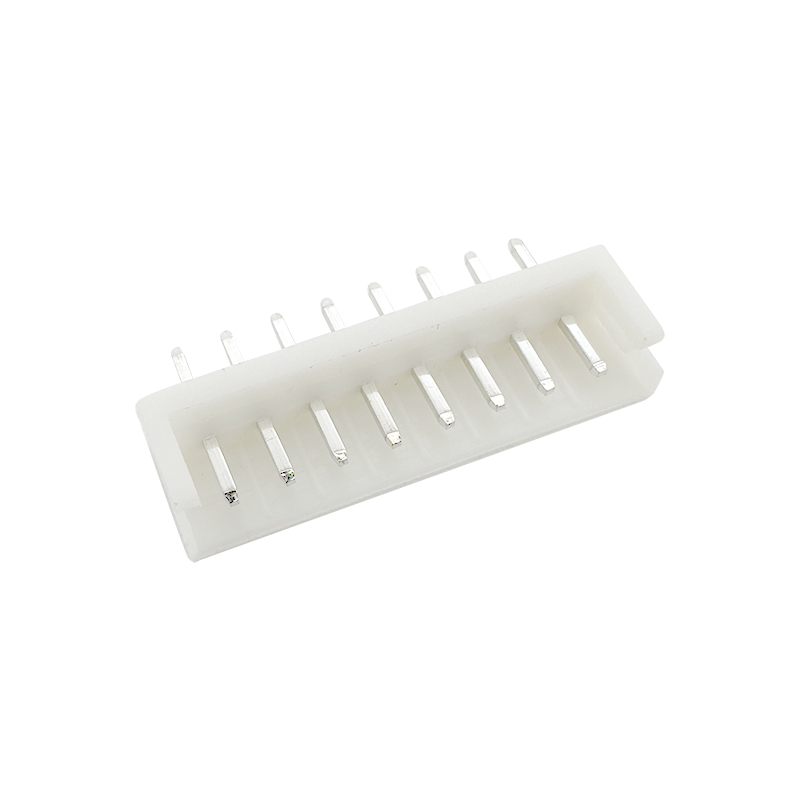

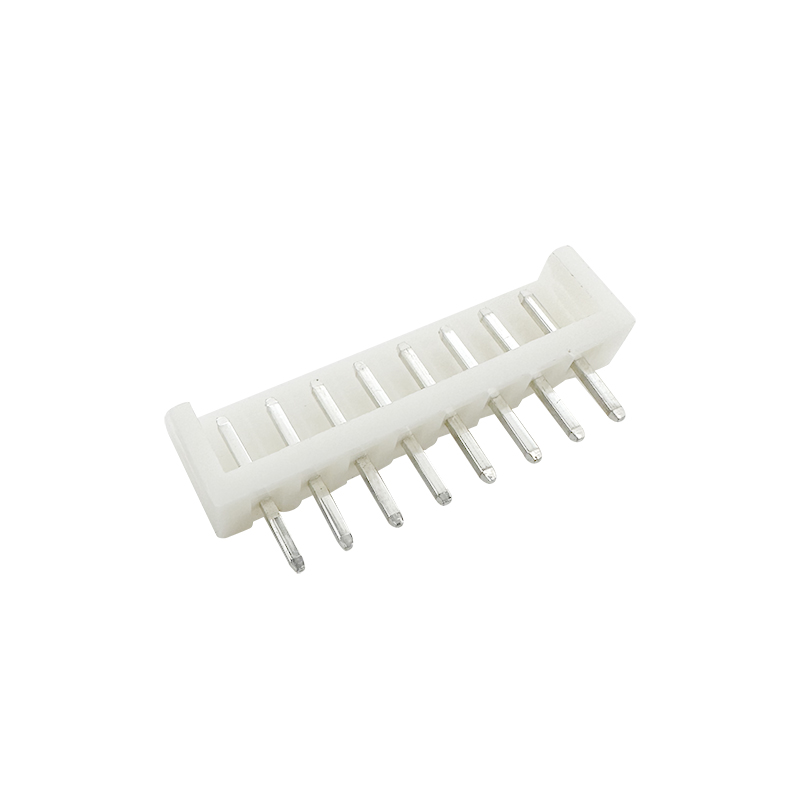

JST SxxB-EH 2.50mm JST EH Type Wire To Board Connector :ERYAYL5-2.50

JST SxxB-EH 2.50mm JST EH Type Wire To Board Connector :ERYAYL5-2.50

Brand ERYCO

Product origin CHINA

Electrical Specification:

Rated Voltage:250V AV.DC

Rated Current:3A

Contact Resistance:0.02Ω max

Insulation Resistance:1000MΩ min

Withstand voltage:800V AC/min

Temperature range for usage : -40ºC~+105ºC

P.C board thickness : 0.8~1.6mm

2D(PDF)Drawing

Product parameter:

Material:

Housing: PA66 (PA66) UL94V-0

Contacts: Phosphor Bronze or Brass

Plating: Tin 50u" over 100u" nickel

Wire range : AWG#30~#22

Applications

1.Telecommunications Equipment

2.Medical Devices

3.LED Lighting Systems

4.Test and Measurement Instruments

Features

-Termination Style: Designed for crimp-style wire termination, where wires are crimped onto the connector's contacts. This method ensures a secure electrical connection and provides strain relief for the wires, minimizing the risk of wire pull-out.

-Current Rating and Voltage: The connector is designed to handle specific current ratings and voltage levels, depending on the application requirements and the configuration of the connector.

-Keying and Polarization: Includes features for keying and polarization to ensure proper alignment and prevent incorrect insertion of the connector into the PCB or housing. This helps maintain electrical integrity and prevents damage to components.

-Mounting Options: The JST EH connector can be mounted onto the PCB through through-hole soldering or surface-mount (SMT) techniques, depending on the specific model and design requirements. This flexibility in mounting options supports different assembly processes and requirements.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
