MOLEX 050-84-2xx0 6.35mm Molex 42021 Wire To Board Connector :ERYAYL1-6.35

MOLEX 050-84-2xx0 6.35mm Molex 42021 Wire To Board Connector :ERYAYL1-6.35

Brand ERYCO

Product origin CHINA

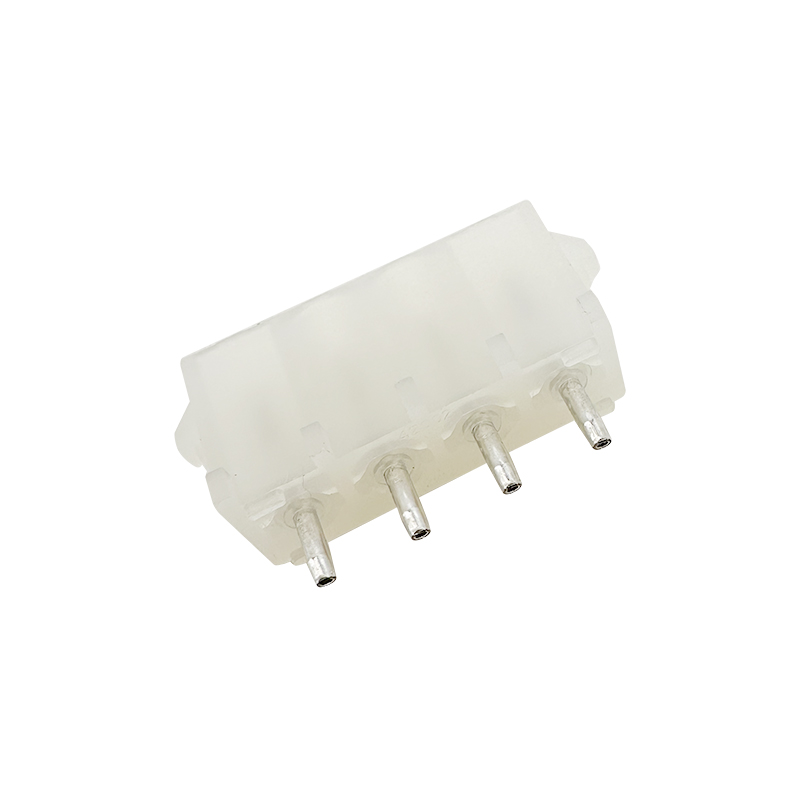

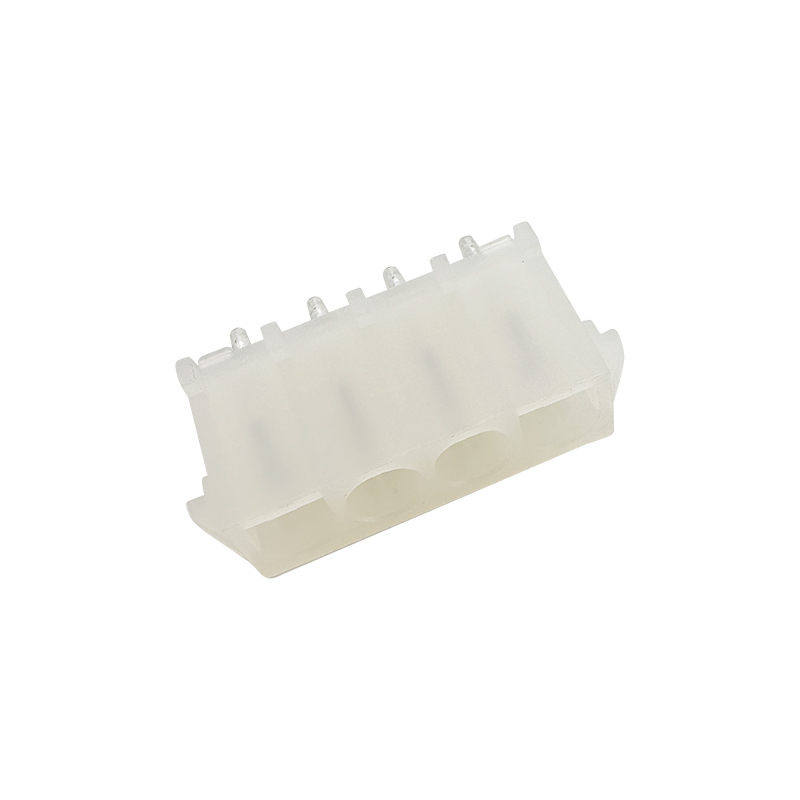

6.35mm Molex 42021 Wire To Board Connector

Order information:

ERYAYL1-6.35-2X02-H

Pitch:6.35mm

Pins:1=Single layer 2=Double layer 3=Three layer

Pin numbur:2~15 pins

MH=Male Hosing / FH=Female Hosing / MT=Male Terminal / FT=Female Terminal

S=Straight male pin / R= Right angle male pin

2D(PDF)Drawing

Product parameter:

Applications

1.Medical Devices

2.Automotive Electronics

3.Consumer Electronics

4.Telecommunications Equipment

Features

-Termination Style: This connector uses a crimp-style termination for attaching wires. Crimping ensures a secure and reliable electrical connection between the wire and the connector contact.

-Housing Material: The connector housing is usually made from durable materials such as thermoplastic, providing mechanical strength and electrical insulation.

-Contact Material: The contacts inside the connector are typically made from materials like phosphor bronze or brass, which offer good conductivity and durability.

-Polarization: Some connectors feature polarization features such as keying or asymmetric designs to prevent incorrect insertion and ensure proper orientation.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
