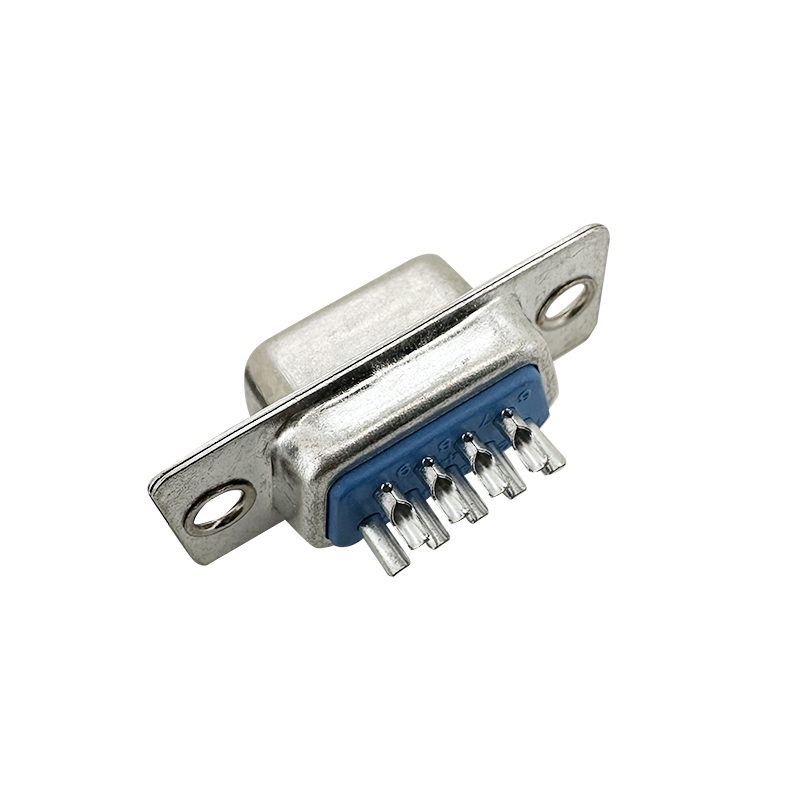

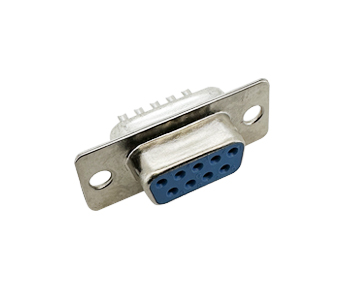

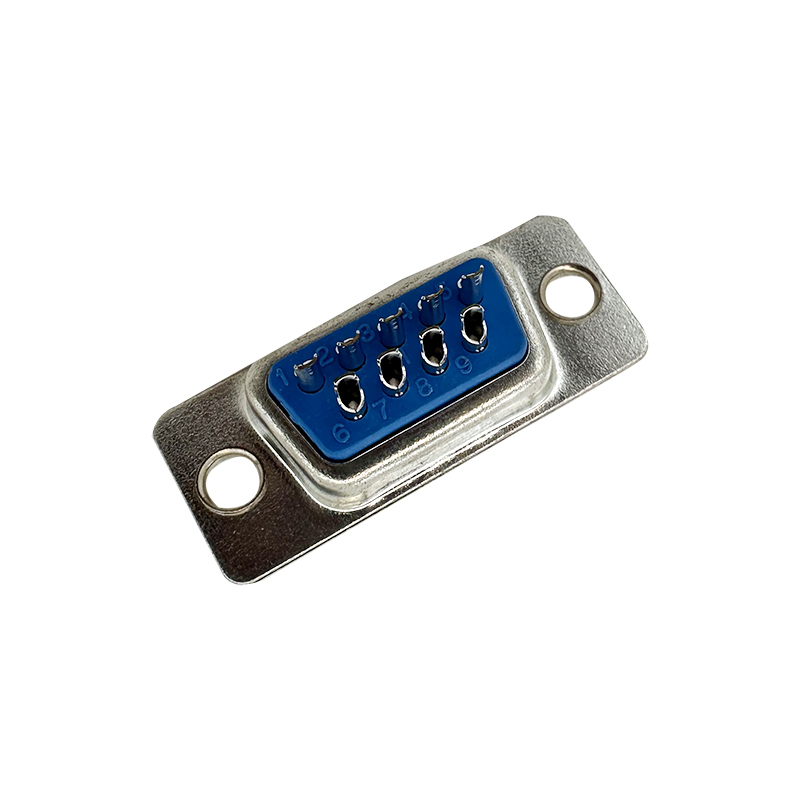

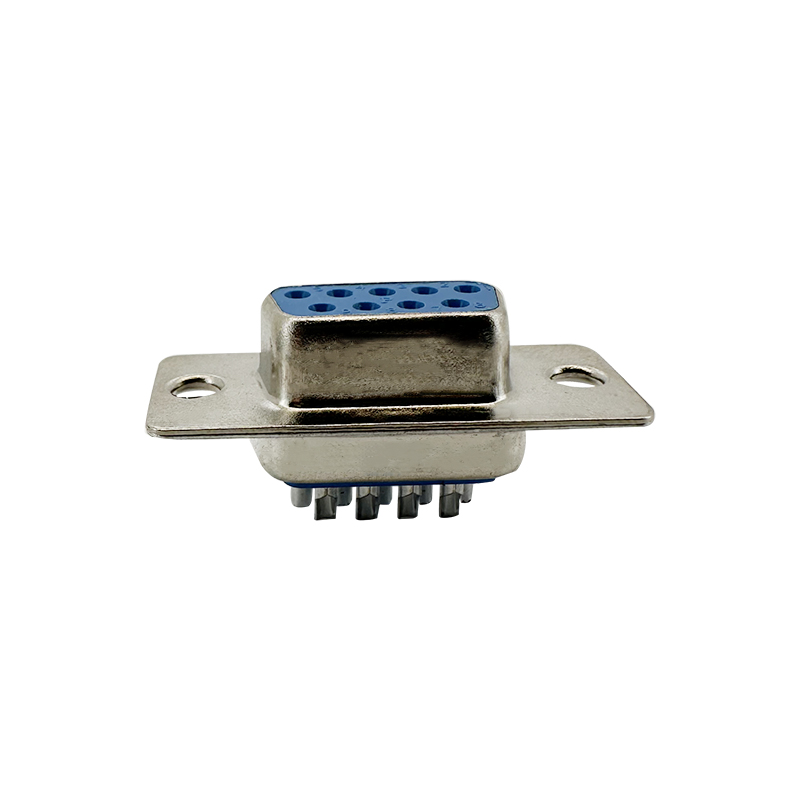

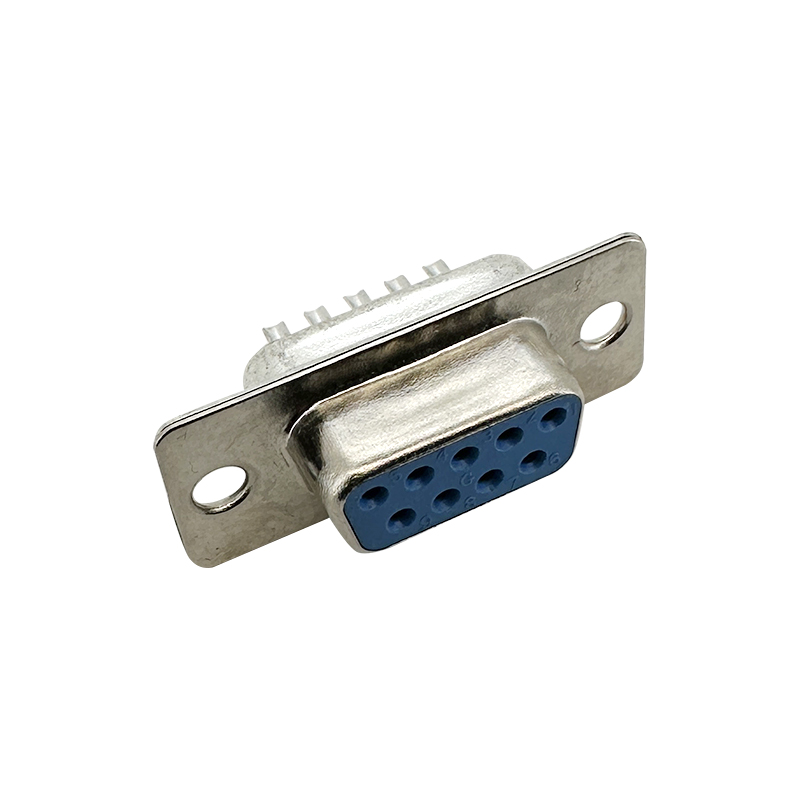

Product parameter:
Material:
Housing: PBT+30%
Glass filled ,UL94V-0
Contacts: Brass ,
Gold Plating on Contact Arer, Tin on
Solder Tail.
Shell: Steel,
Front Shell Nickel Plating, Back Shell
Tin Plating
Electrical
Characteristics:
Current Rating: 5
AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact
Resistance: 20mΩ Max. Initial
Operating
Temperature: -55°C~+105°C
Applications
1.Broadcasting and
Audio/Video Equipment
2.Medical and
Healthcare Systems
3.Automotive and
Aerospace Applications
4.Avionics and
Aerospace Systems
Features
-Termination
Style: Designed for through-hole mounting on a PCB (Printed Circuit Board). The
pins of the connector are inserted into plated through-holes on the PCB and
soldered to provide a secure mechanical and electrical connection.
-Latch or Locking
Mechanism: Some box header connectors may include a latch or locking mechanism
to secure the connector to the PCB, providing additional mechanical stability.
Mating Cycles:
Designed to withstand multiple mating cycles, making them suitable for
applications where frequent assembly and disassembly of components are
required.
-Housing Material:
The connector housing is typically made from durable thermoplastics such as PBT
(Polybutylene Terephthalate) or Nylon. These materials provide mechanical
strength and resistance to heat, chemicals, and environmental factors.
-Polarization and
Keying: Some box header connectors may feature polarization features or keying
options to ensure proper alignment during mating. This prevents incorrect
connections that could damage components or affect performance.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
