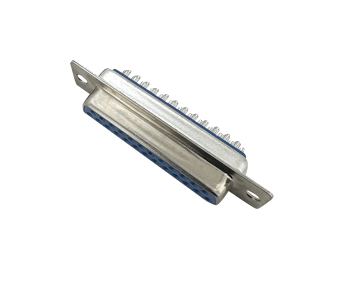

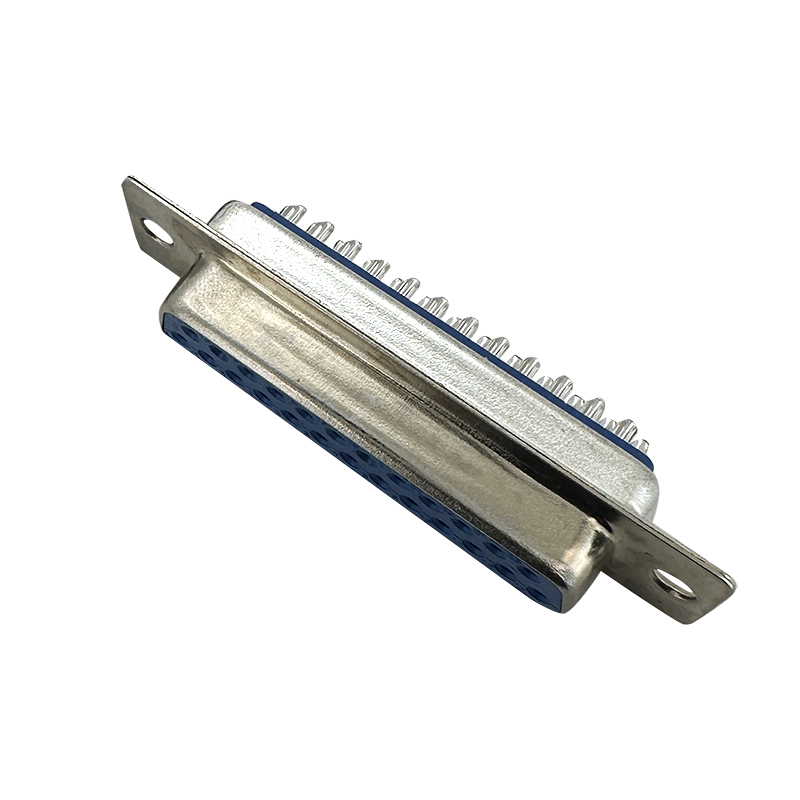

Product parameter:
Material:
Housing: PBT+30%
Glass filled ,UL94V-0
Contacts: Brass ,
Gold Plating on Contact Arer, Tin on
Solder Tail.
Shell: Steel,
Front Shell Nickel Plating, Back Shell
Tin Plating
Electrical
Characteristics:
Current Rating: 5
AMP
Insulator
Resistance: 1000MΩ Min. at DC 500V
Withstanding
Voltage:500V AC (rms) for 1 minute
Contact
Resistance:20mΩ Max. Initial
Operating
Temperature: -55°C~+105°C
Applications
1.Telecommunications
and Networking
2.Broadcasting and
Audio/Video Equipment
3.Medical and
Healthcare Devices
4.Automotive and
Transportation Systems
Features
-Configuration:
These connectors feature two rows of pins, arranged in a specific configuration
based on the number of pins (e.g., 3 rows for 15P and higher configurations).
-Simple Solder
Type: Designed for through-hole soldering onto a printed circuit board (PCB),
providing a secure and reliable electrical and mechanical connection.
-Gender Options:
Available in male and female variants:
Male: Typically
has pins that plug into the female connector.
Female: Typically
has sockets to receive the male pins.
-Compatibility:
Compliant with D-SUB standards, ensuring compatibility with a wide range of
devices and equipment that use D-SUB connectors.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
