Product parameter:
Material:
Housing: PBT+30%
Glass filled ,UL94V-0
Contacts: Brass
,Gold Plating
Shell: Steel,
Nickel Plating
Electrical
Characteristics:
Current Rating: 1
AMP
Insulator
Resistance: 1000MΩ Min. at DC 500V
Withstanding
Voltage: 500V AC (rms) for 1 minute
Contact
Resistance: 20mΩ Max. Initial
Operating
Temperature: -55°C~+105°C
Applications
1.Consumer
Electronics
2.Test and
Measurement Instruments
3.Automotive Electronics
4.Medical Devices
Features

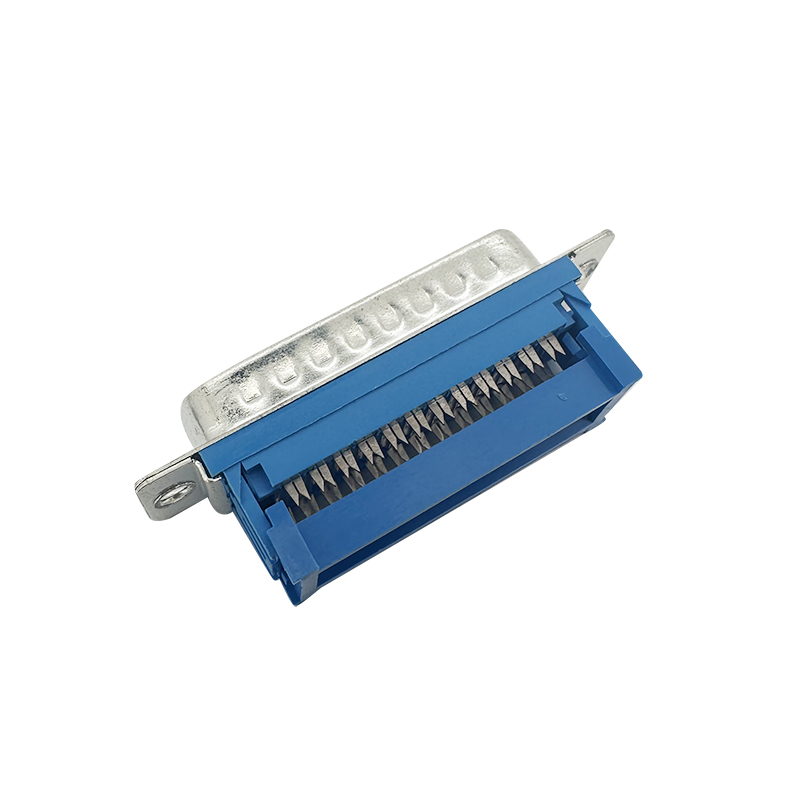

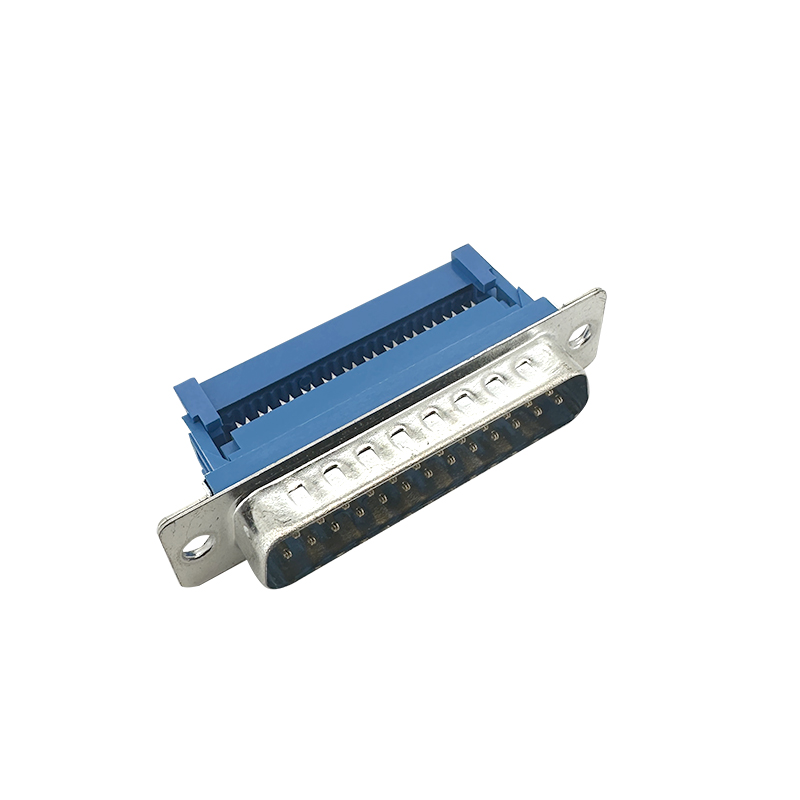

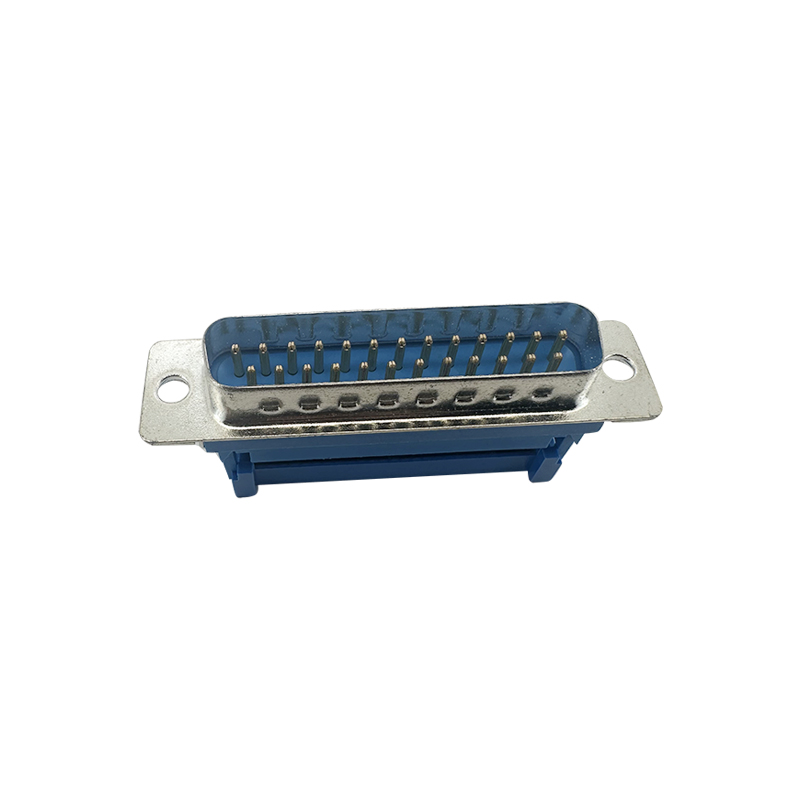

-Connector Type:
D-SUB (Dual Row)
-IDC Contacts:
Designed to pierce the insulation of flat ribbon cables when pressed into
place, creating a gas-tight electrical connection without the need for
stripping the wires.
-Number of Pins:
Available in various pin configurations (9, 15, 25, 37), indicating the number
of signal pins for different applications.
-Material:
Typically made from metal (e.g., steel, brass) for durability and good
electrical conductivity.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
