Brand ERYCO
Product origin CHINA

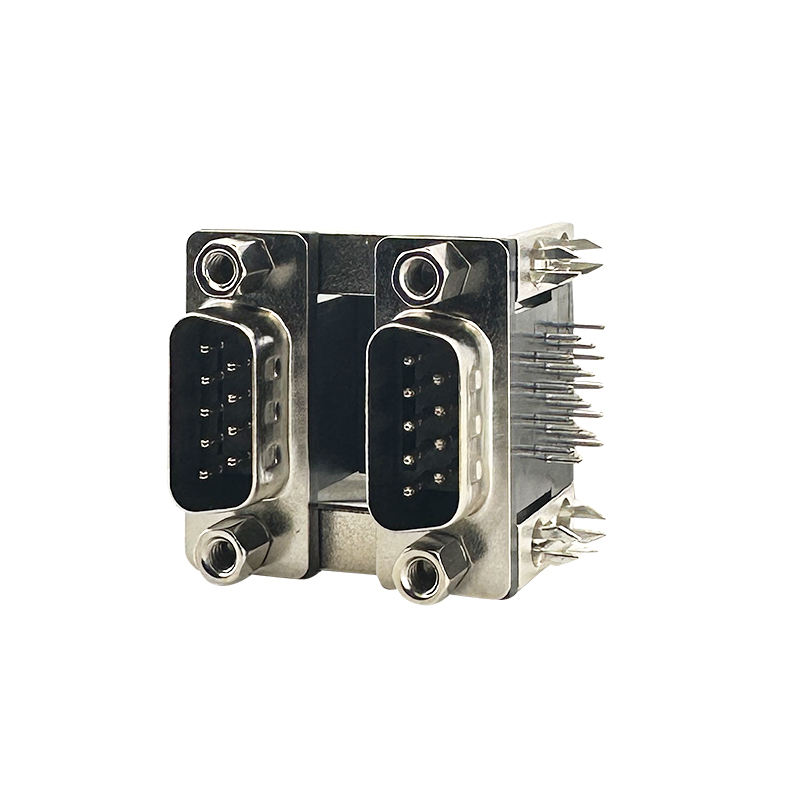

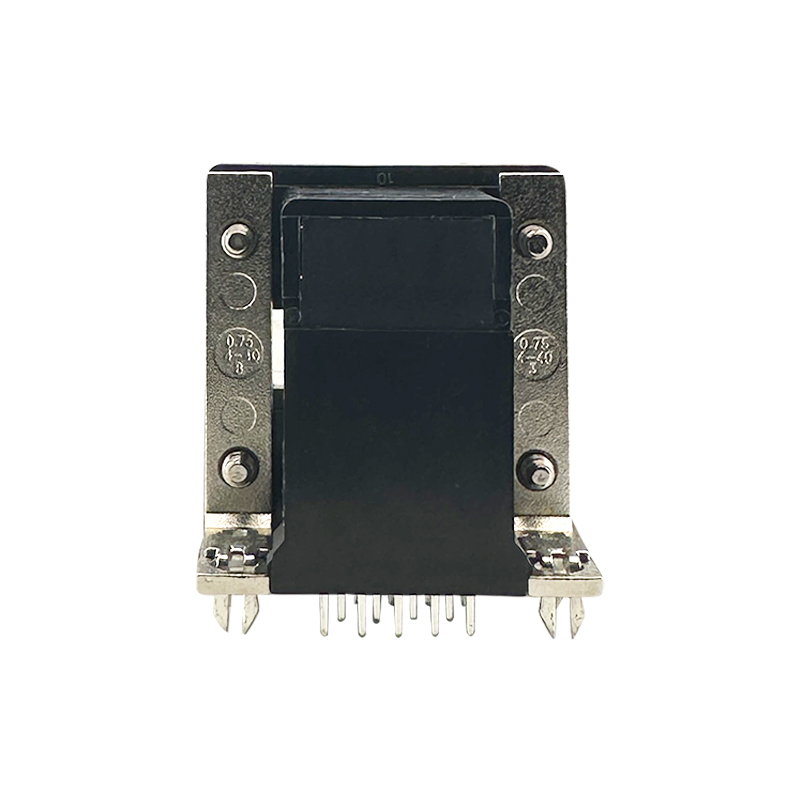

ERYAYA16-09-F-M-A-B-B
No.of pin:15P/15P,26P/26P,44P/44P
UP Contact: F-Female M-Male
Down Contact:M-Male F-Female
H Size: A=15.88mm B=19.02mm
Process Option: A-Rivet only B-Rivet lock
Product parameter:
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
Applications
1.Data Centers
2.High-Performance Computing (HPC)
3.Industrial Automation
4.Medical Devices and Instrumentation
Features
-Termination: Generally supports soldering or PCB mount for secure attachment.
-Material: Typically constructed from metal (e.g., steel, brass) for durability and reliable electrical conductivity.
-Shielding: Provides electromagnetic interference (EMI) shielding, crucial for applications requiring noise reduction and signal integrity.
-Polarization: Keying features to ensure correct orientation during mating to prevent mismating and damage.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
