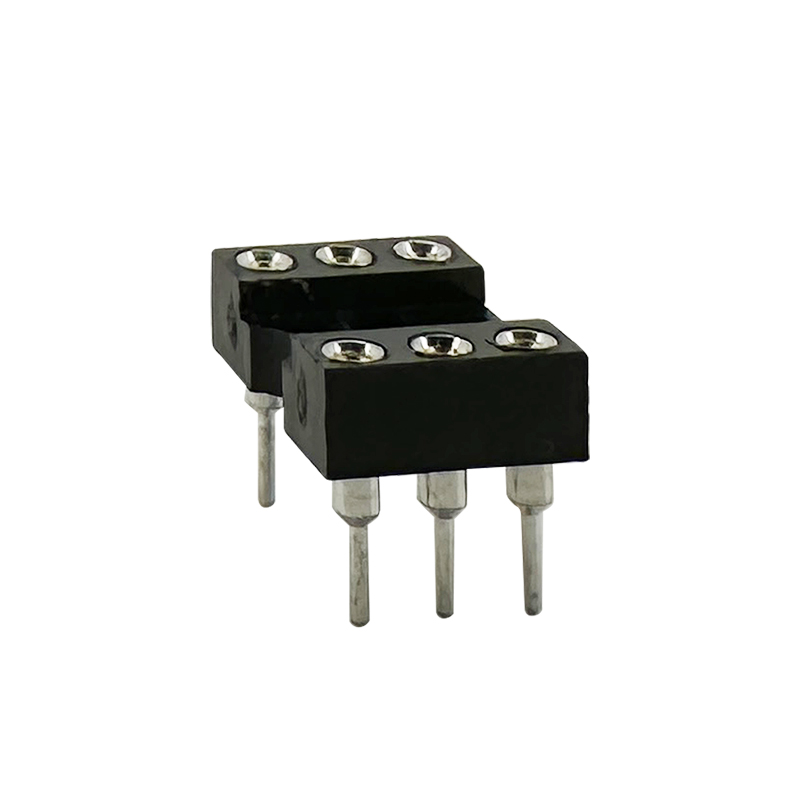

2.54mm Pitch IC Socket Connector
Order Information
ERYAYB17-XX-Y-2
XX-No.of 06~48pin
Y-Imported material Z-Domestic material
B Size:1=7.62mm 2=15.24mm
Product parameter:
Material:
Housing: PBT UL94V~0
Contacts:Phosphor Bronze
Plating:Au 2u" or Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min. at 100V AC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC
Applications
1.Prototyping and Development
2.PCB Assembly and Manufacturing
3.Embedded Systems
4.Industrial Applications
Features
-Connector Type: IC socket connectors are designed to accept and securely hold ICs, facilitating easy insertion and removal without damaging the IC or the socket contacts.
-Contact Material: Typically made from precision machined phosphor bronze or beryllium copper contacts with a choice of platings such as tin, gold, or silver. These materials ensure good electrical conductivity and durability.
-Socket Body Material: The socket body is usually made from high-temperature plastic or thermoplastic materials that can withstand the soldering temperatures during PCB assembly.
-Mounting Style: Available in through-hole and surface-mount (SMT) configurations. Through-hole sockets have pins that extend through the PCB and are soldered on the opposite side, while SMT sockets are directly soldered onto the surface of the PCB.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
