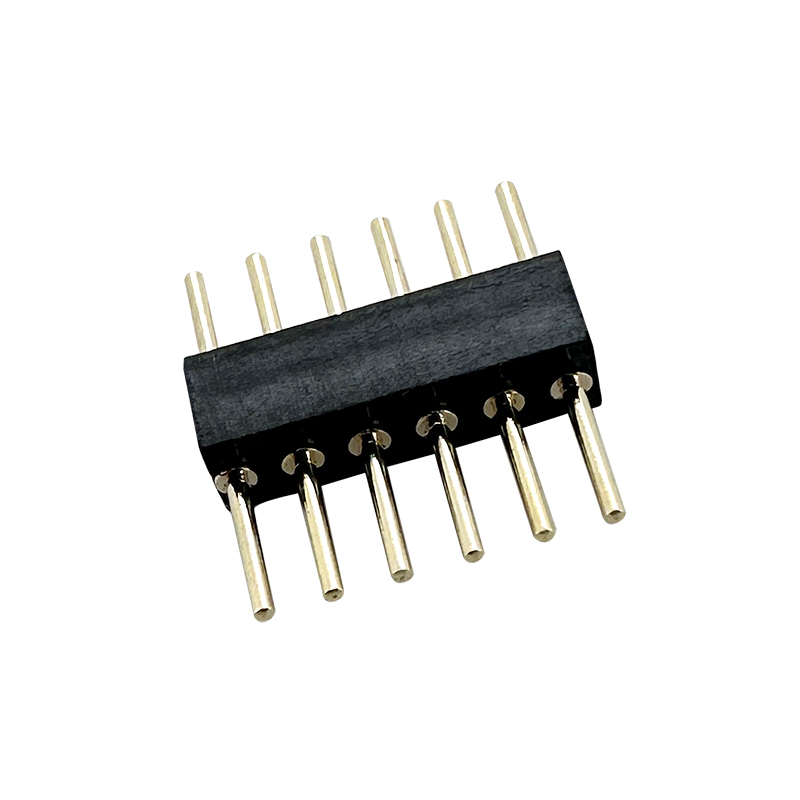

Product parameter:
Material:
Housing: 30% Glass
filled PPS UL94V-0
Contacts: Brass
Plating: Gold
1.25u" over 50u" nickel
Electrical
Characteristics:
Current Rating:
2.0 AMP
Voltage Rating: 60V
AC/DC
Insulator Resistance:
1000M Ohm min at 100V AC
Contact
Resistance: 20m Ohm max
Operating
Temperature: -40ºC~+105ºC
Applications
1.Test and
Measurement Instruments:
2.Telecommunications
Equipment
3.Industrial
Automation
4.Medical Devices
Features
-Contact
Plating:Pins may be plated with materials such as gold or tin to enhance
conductivity, prevent oxidation, and improve durability. Gold plating, in
particular, provides superior corrosion resistance and low contact resistance,
ideal for high-reliability applications.
-Insulator
Material:The connector body and insulators are usually made from durable
thermoplastics such as PBT (polybutylene terephthalate) or Nylon. These
materials provide mechanical stability, electrical insulation, and resistance
to heat and chemicals.
-Mounting
Options:Designed for through-hole mounting on PCBs, ensuring secure attachment
and reliable electrical connections. Some variants may support surface-mount
technology (SMT) for applications requiring compact and automated assembly.
-Operating
Temperature Range:Typically designed to operate within a specific temperature
range, ensuring reliable performance across various environmental conditions
and applications.
Dimensions(Please refer to the
attached 2D drawings for detailed specifications.):
