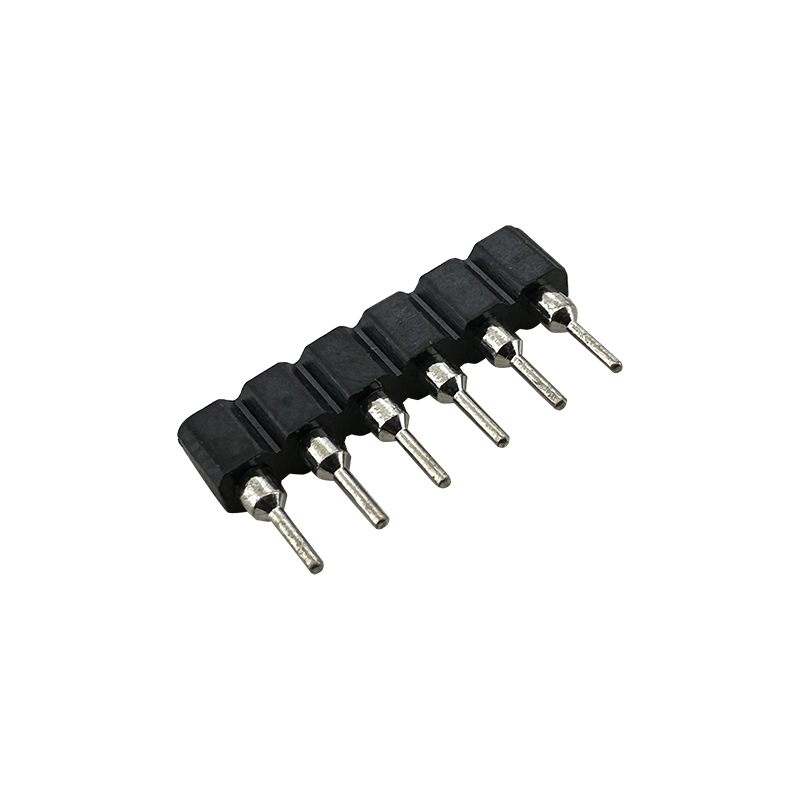

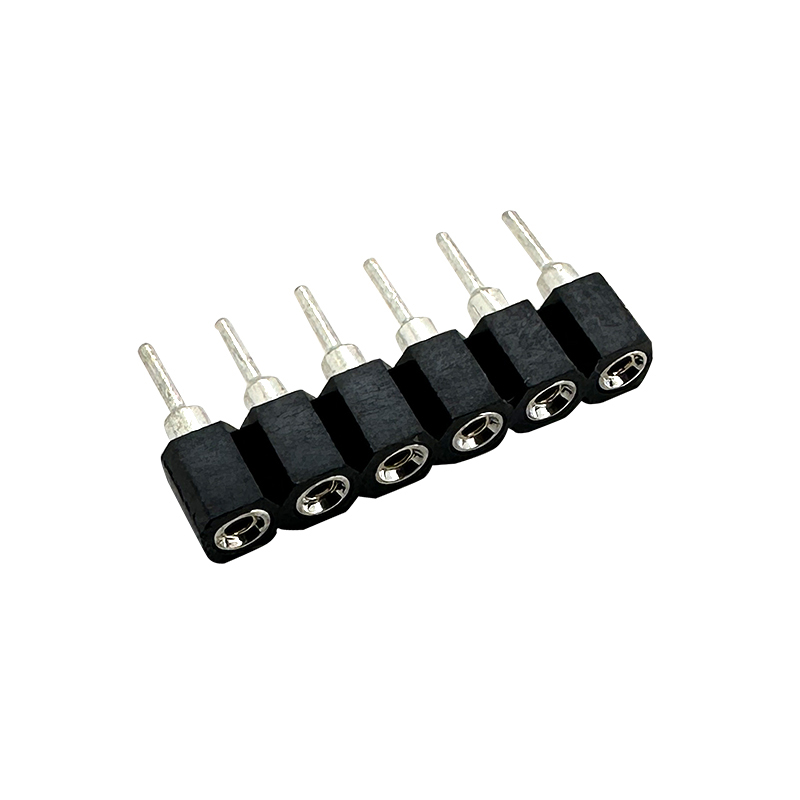

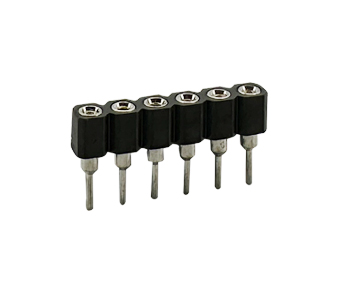

2.54mm Pitch SIP Socket Connector
Order Information
ERYAY09E&ERYAY09EA-1-XX-S
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin 17.8mm S2=Straight Pin 14.3mm
Product parameter:
Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts: Phosphor Bronze or Brass
Plating: Gold 1.25u" over 50u" nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min. at DC 100V
Contact Resistance: 10m Ohm max.
Operating Temperature: -45ºC~+105ºC
Applications
1.Automotive Electronics
2.Medical Devices and Healthcare
3.LED Lighting Systems
4.Power Supplies and Battery Management
Features
-Termination Type:SIP socket connectors typically feature through-hole mounting, where the connector pins extend through holes in the PCB and are soldered on the opposite side. This mounting style ensures a secure and mechanically stable connection.
-Contact Material:Contacts are usually made from materials such as phosphor bronze or brass with tin or gold plating. These materials offer good electrical conductivity, corrosion resistance, and durability over multiple mating cycles.
-Housing Material:The connector housing is typically made from durable thermoplastics that provide mechanical strength and insulation between contacts. The housing may include features such as polarization keys or guides to ensure correct orientation and prevent misalignment during assembly.
-Features:Polarization and Keying: Some SIP socket connectors may include polarization features such as keying or asymmetrical shapes to ensure correct alignment during insertion into mating headers or receptacles.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
