Micro SD card connector push push,H1.68mm,with CD pin :ERYAYD114

Micro SD card connector push push,H1.68mm,with CD pin :ERYAYD114

Brand ERYCO

Product origin CHINA

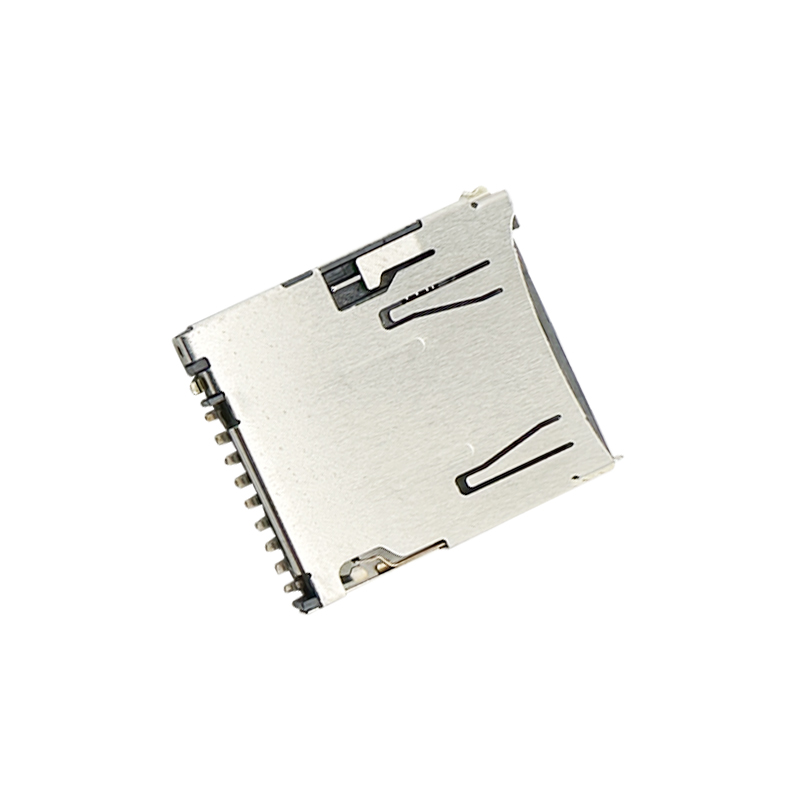

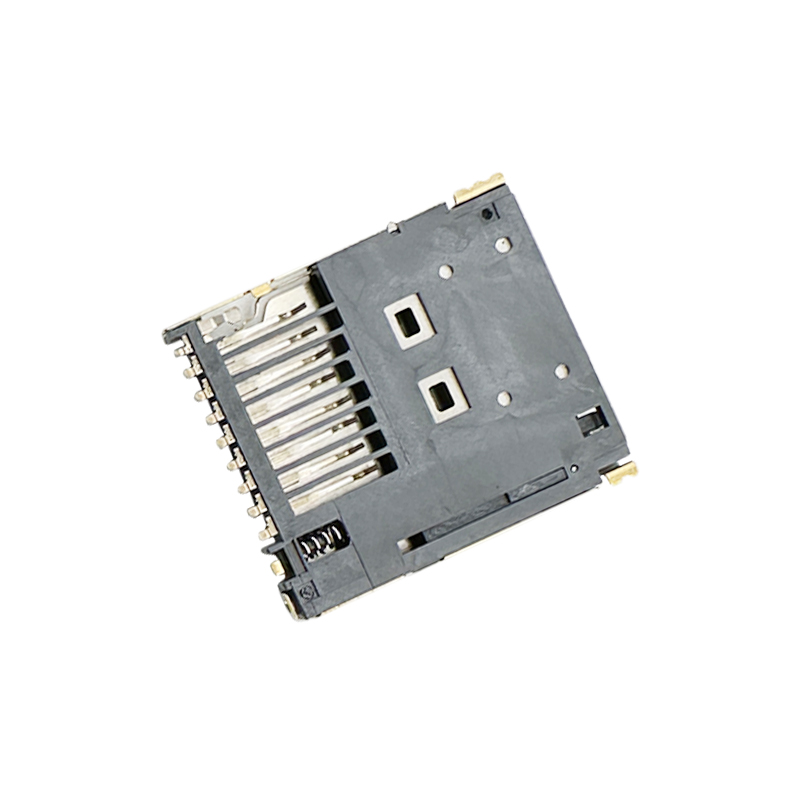

Micro SD card connector push push,H1.68mm,with CD pin

Material:

Insulator:Hi-Temperature Plastic,UL94V-0,Black.

Terminal:Copper Alloy,Gold flash plating on contact area & solder tail.

Shell:Stainless Steel,Nickel underplated on allover,gold flash on solder tail.

2D(PDF)Drawing

Product parameter:

Material:

Insulation Resistance:1000MΩ Min./500V DC

Withstanding Voltage:250V AC/minute.

Contact Resistance:100mΩ Max.AT 20mA/20mV Max

Current Rating:0.5 A

Voltage Rating:5.0 vrms

Operating Temperature: -45ºC~+85ºC

Mating Cycles:5000 Insertions.

Applications

1.Embedded Systems and IoT Devices

2.Automotive Applications

3.Consumer Electronics

4.Medical and Healthcare Devices

Features

-Height: Specifically designed with a height of 1.68mm, making it suitable for various electronic devices where space is limited but still requiring a slightly higher profile than lower-profile variants.

-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.

-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
