Brand ERYCO
Product origin CHINA

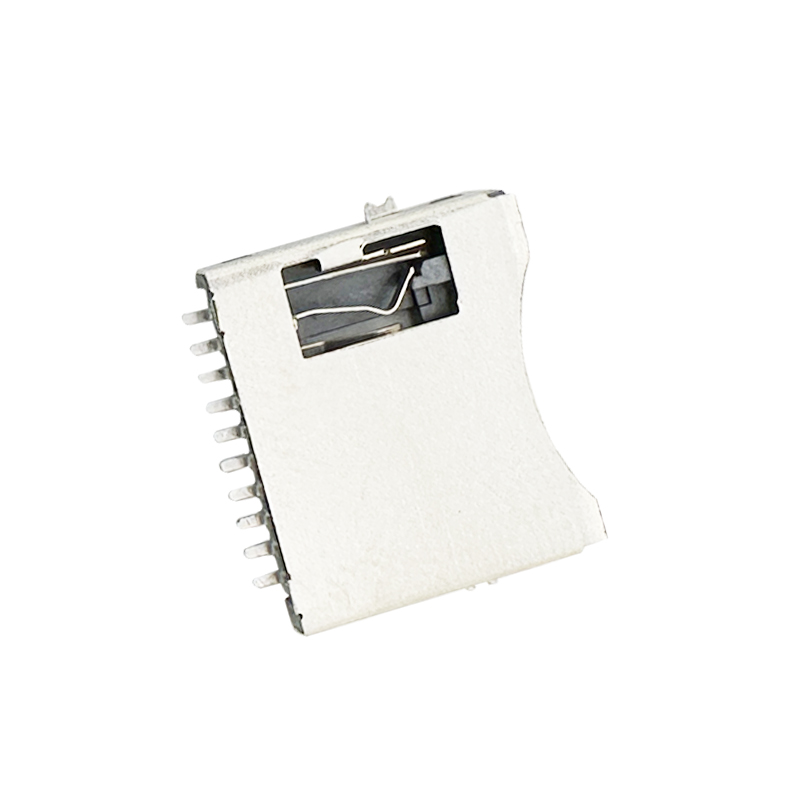

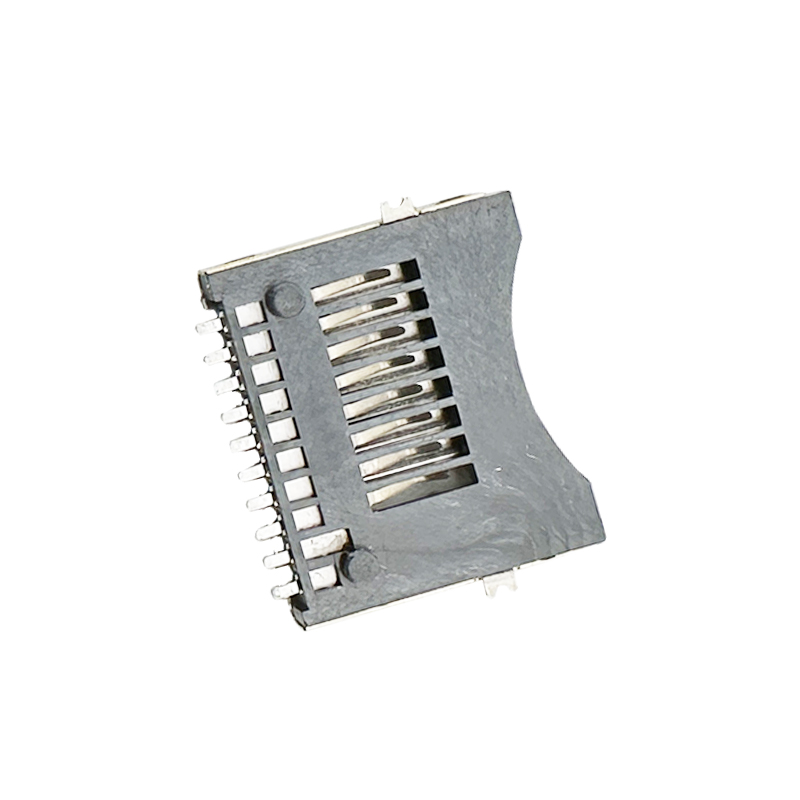

Micro SD card connector no push,H1.8mm
Material:
Housing:LCP,UL94V-0,Black.
Terminal:Copper Alloy,Selective Gold On Mating Area.
Shell:Iron
Product parameter:
Electrical:
Voltage Rating:5V
Current Rating:0.5 A Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min.
Withstanding Voltage:500V 1 Minute.
Durability:10000 Cycles.
Applications
1.Mobile Devices
2.Digital Cameras
3.Portable Media Players
4.Embedded Systems
Features
-Connector Type: Micro SD Card Connector without push mechanism.
-Design: Compact and low-profile design suitable for space-constrained electronic devices where board height is limited.
-Height: Specifically designed with a height of 1.8mm, which is standard for many compact devices.
-Termination Type: Surface-Mount Technology (SMT), allowing direct placement and soldering onto PCB pads for reliable electrical connections.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
