Micro SD card connector push push,H1.28mm,with CD pin:ERYAYD113

Micro SD card connector push push,H1.28mm,with CD pin:ERYAYD113

Brand ERYCO

Product origin CHINA

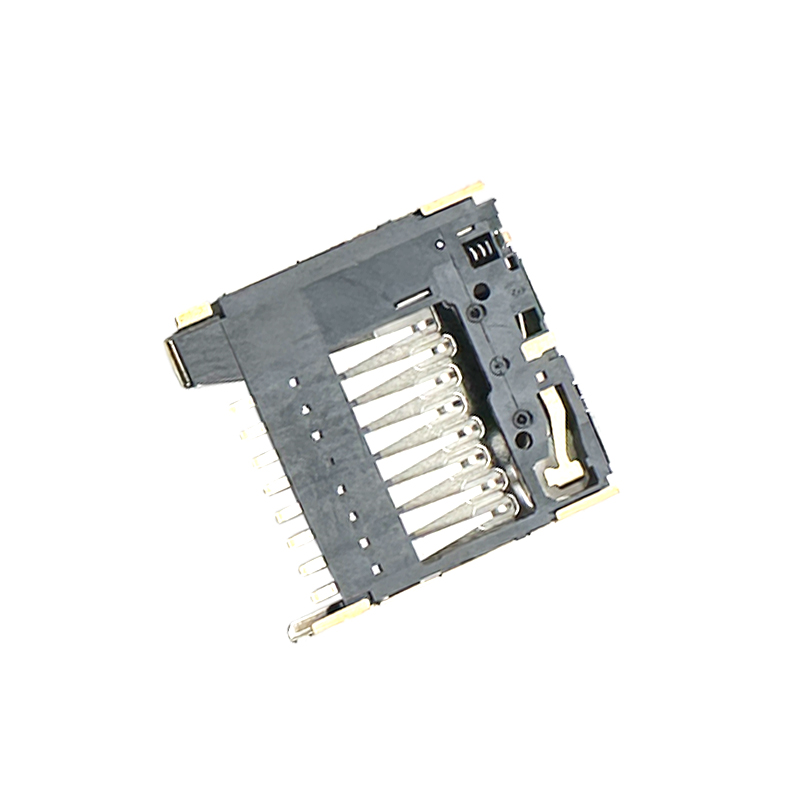

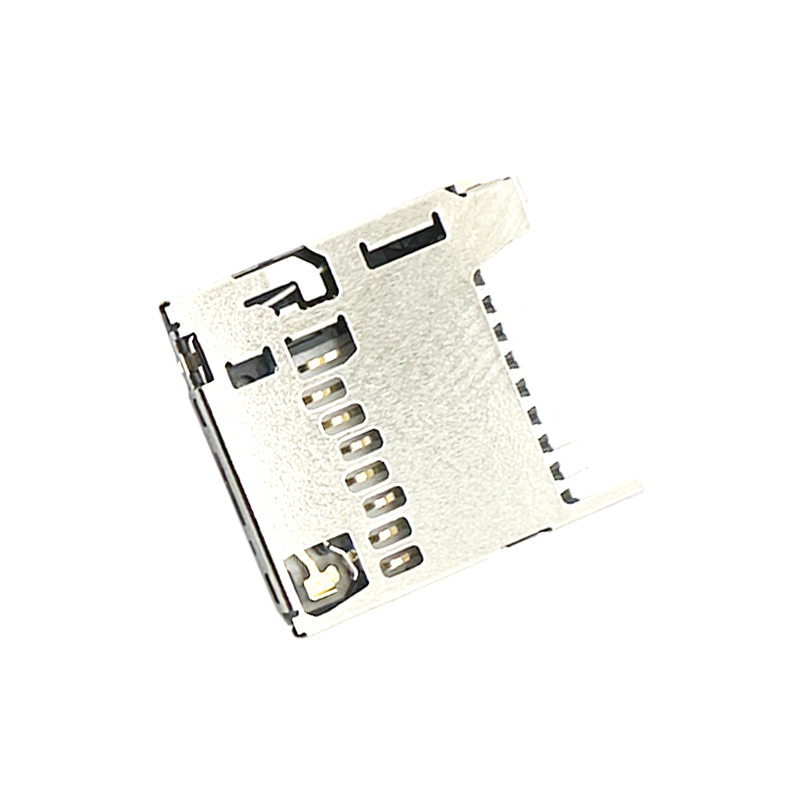

Micro SD card connector push push,H1.28mm,with CD pin

Material:

Insulator:High Temperature Thermoplastic LCP SZ6505,UL94V-0,Black.

Contact:Berylliun Copper (7035-TM06,T=0.15mm),

Plated 80u" min Ni overall plated 1u" min Au over Ni on solder area.

Shell:SUS301-3/4H T=0.10mm.Solder tail plated 1u" min Au overll 50u" min Ni.

2D(PDF)Drawing

Product parameter:

Material:

Current Rating:0.5A AC/DC max.

Voltage Rating:12V AC/DC

Ambient Humidity Range:95% R.H. Max.

Contact Resistance:100mΩ Max.

Insulation Resistance:1000MΩ Min./500V DC

Durability:5000 Cycles.

Operating Temperature: -45ºC~+105ºC

Applications

1.Embedded Systems and IoT Devices

2.Automotive Applications

3.Consumer Electronics

4.Medical and Healthcare Devices ns

Features

-Height: Specifically designed with a low profile height of 1.28mm, making it suitable for compact electronic devices where space is limited.

-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.

-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
