Brand ERYCO
Product origin CHINA

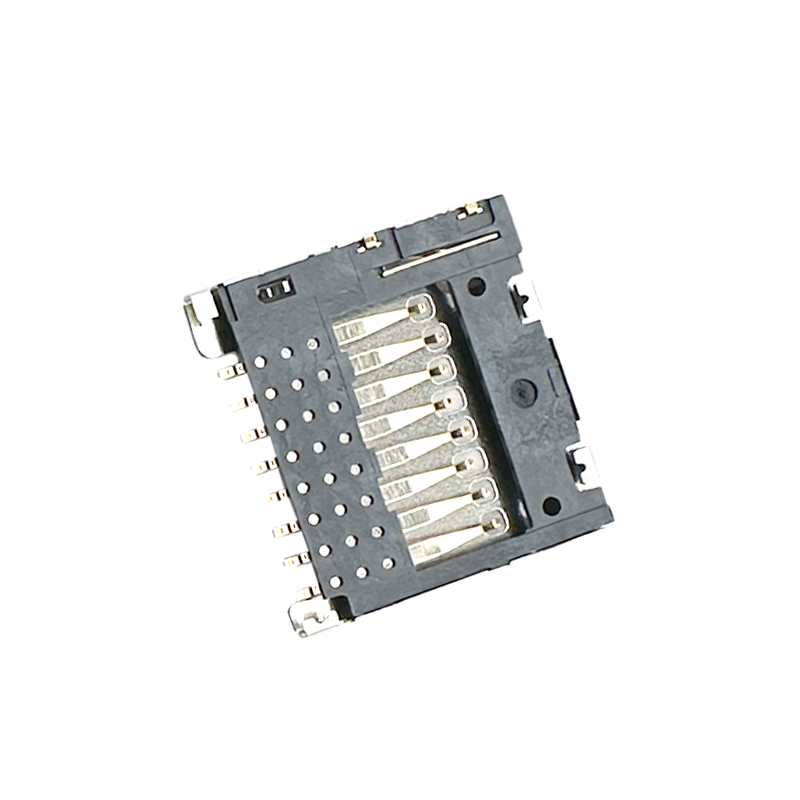

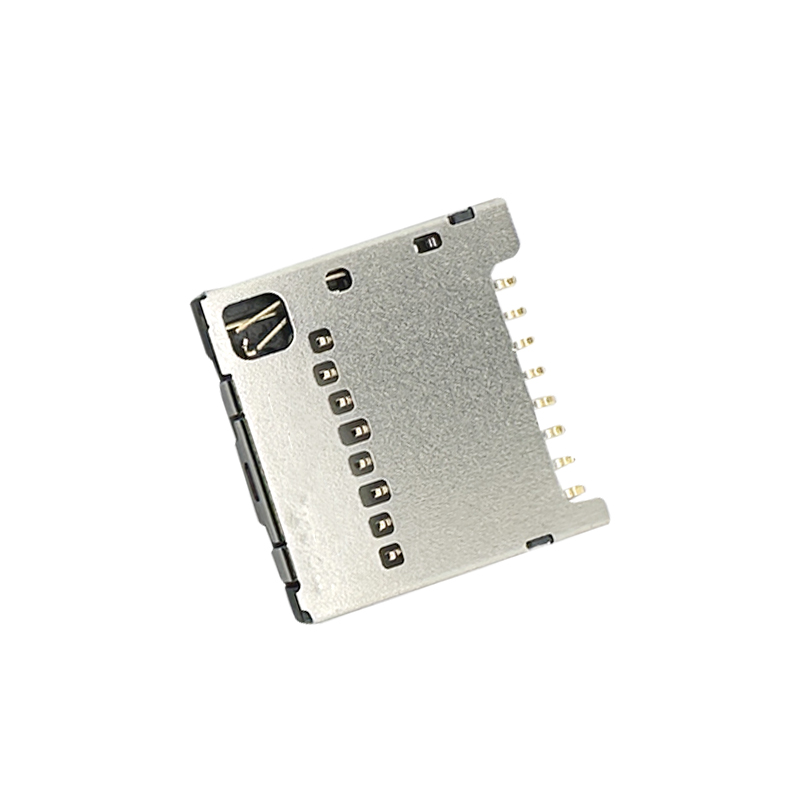

Micro SD card connector push pull,H1.42mm,with CD pin
Product parameter:
Material:
Metal shell:Stainless Steel,Nickel overall 50u"
Housing:Liouid crystal polymer,UL94V-0，Black.
Contact terminals:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u"Min.
Detect Terminal:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u" Min.
Switch Terminal:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u" Min.
Applications
1.Mobile Devices
2.Digital Cameras and Camcorders
3.Portable Gaming Devices
4.Embedded Systems and IoT Devices
Features
-Height: Specifically designed with a low profile height of 1.42mm, making it suitable for compact electronic devices where space is limited.
-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.
-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.
-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.
Dimensions(Please refer to the attached 2D drawings for detailed specifications.):
